Bench-top type temperature(humidity) chamber Installation guide
24 ESPEC CORP.
< Procedure >
1) Remove the two screws that locks the water level regulator level check
panel on the lower rear of the left wall of the chamber to detach the water
level check panel.
2) Check if water level in the water level regulator is above the WATER
LEVEL mark.
3) If water in either the humidifying tray or wick pan is off the WATER LEVEL
mark, Loosen the nut and turn the water level sensor clockwise (seen from
above) to lower water level, or counter-clockwise to raise it. Then, retighten
the nut.
4) Reattach the water level check panel. Turn the main power switch ON.

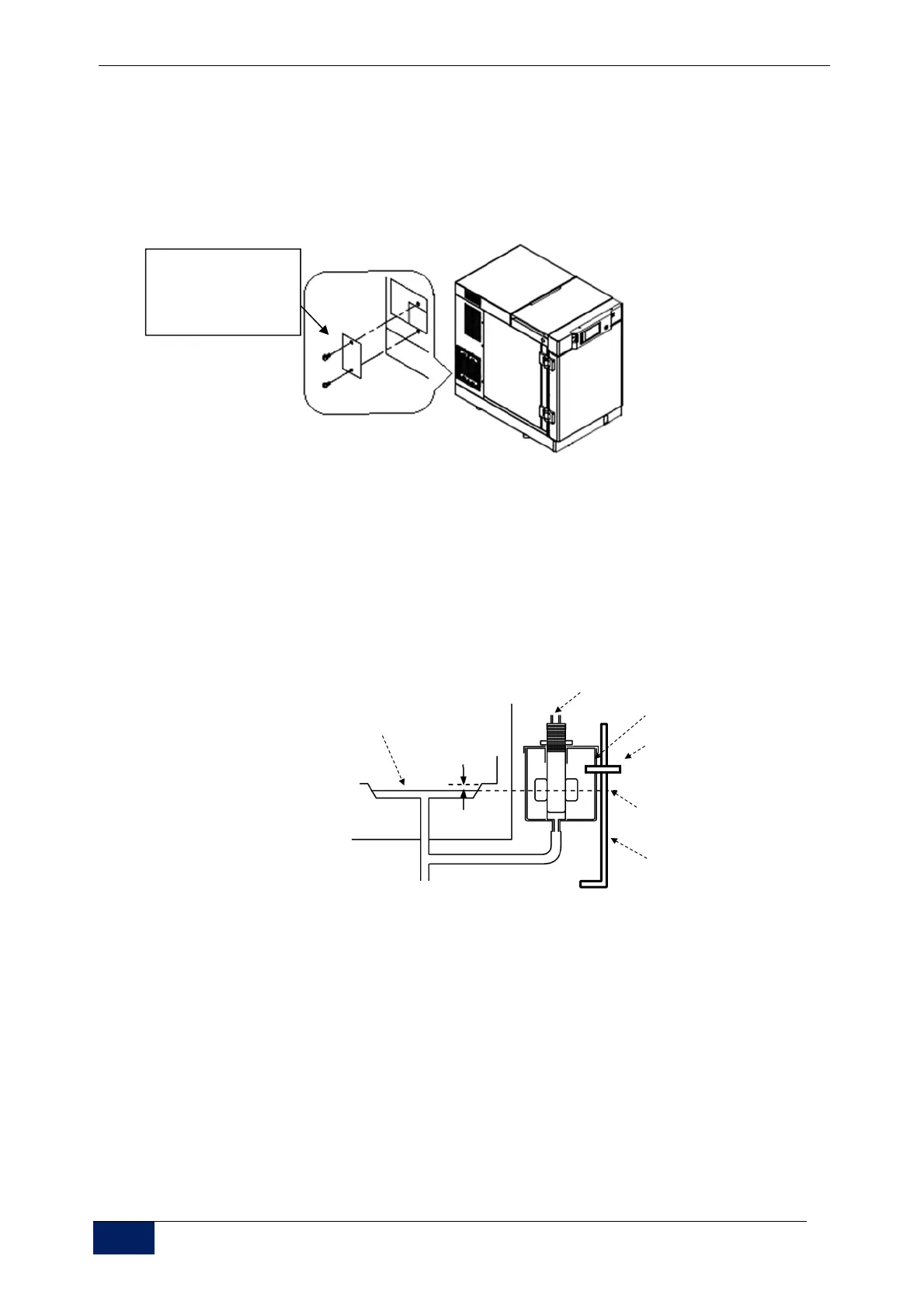

Water level
regulator level
check panel
Nut
Water
Level
4mm
WATER LEVEL mark
Water level regulator
Fixing plate
Humidifying tray
and wick pan
Water level senso
