Espressif ESP32-S3-DevKitC-1 User Manual

CONFIDENTIAL
WholesaleOrders
Ifyouorderinbulk,theboardscomeinlargecardboardboxes.
Forwholesaleorders,pleasegotohttps://www.espressif.com/en/contact-us/sales-questions.
HardwareReference

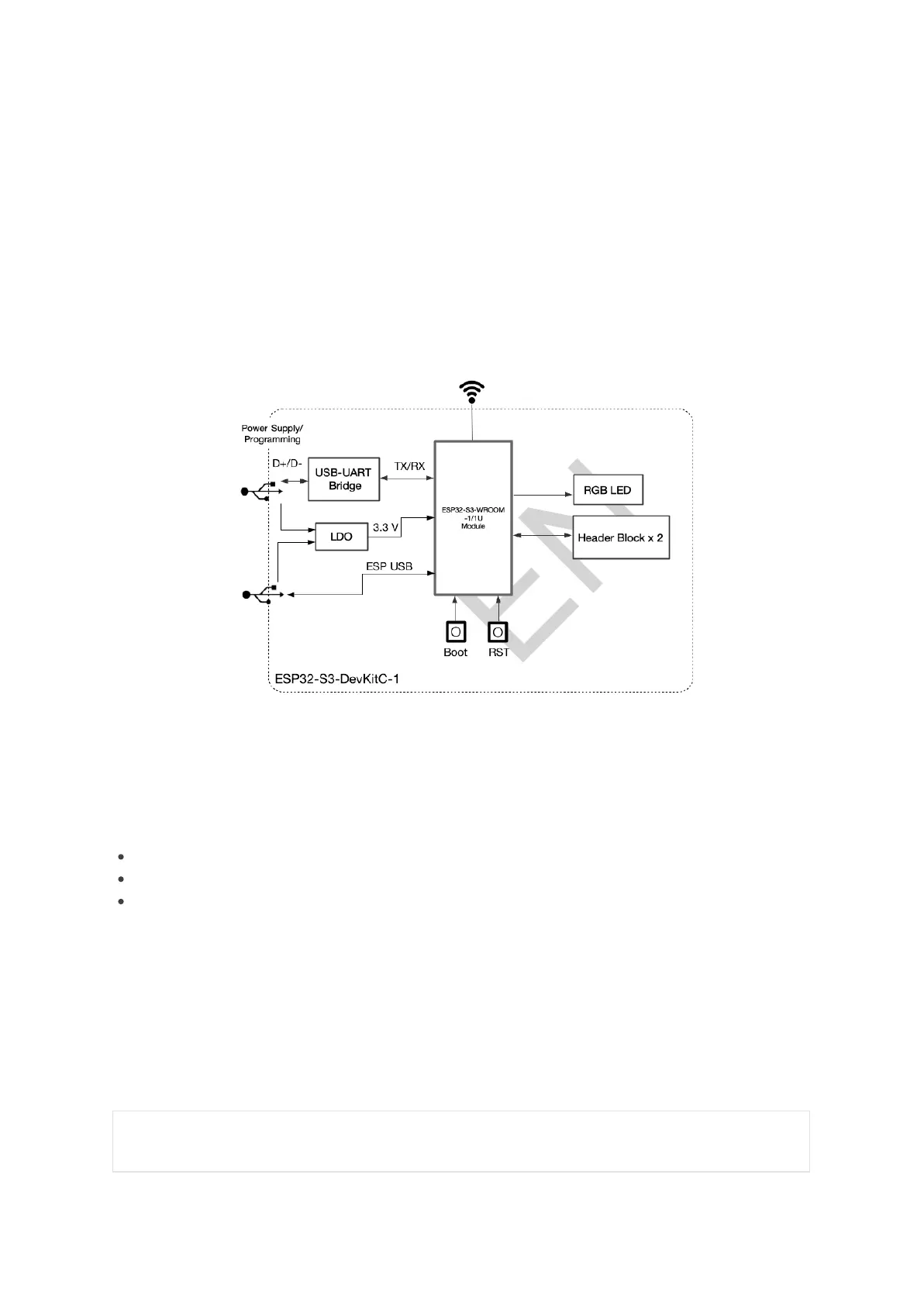

BlockDiagram
TheblockdiagrambelowshowsthecomponentsofESP32-S3-DevKitC-1andtheirinterconnections.
ESP32-S3-DevKitC-1(clicktoenlarge)
PowerSupplyOptions
Therearethreemutuallyexclusivewaystoprovidepowertotheboard:
USB-to-UARTPort,defaultpowersupply(recommended)
5VandGNDpins
3V3andGNDpins
HeaderBlock
ThetwotablesbelowprovidetheNameandFunctionofthepinsonbothsidesoftheboard(J1andJ3).
ThepinnamesareshowninESP32-S3-DevKitC-1-front.ThenumberingisthesameasintheBoard
Schematic(PDF).
J1
No. Name Type Function
1
