3. INSTALLATION INSTRUCTIONS
FLOOR PROTECTION

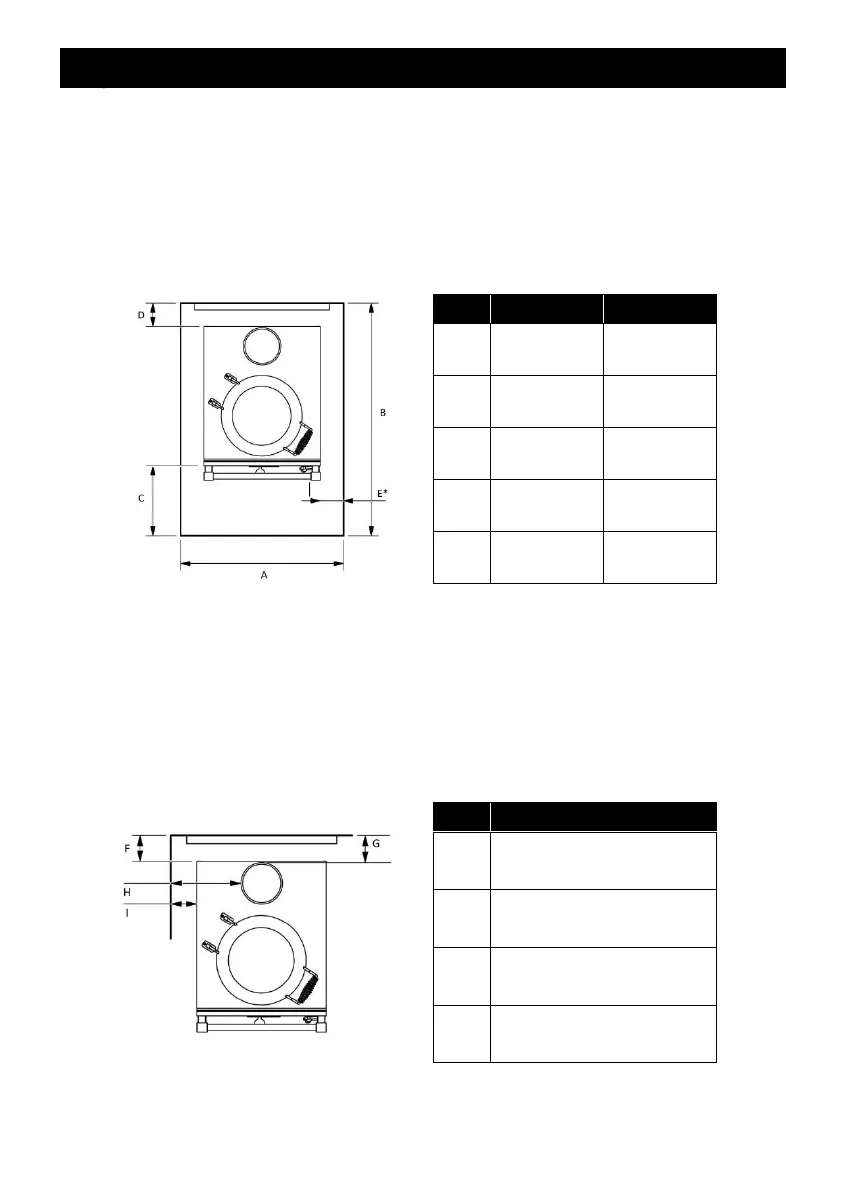

The cook stove must be placed upon a hearth or floor protector made from non-
combustible material(s). The size of the hearth or floor protector must be in line
with national requirements, in extending at least the minimum distance to the
front, rear and sides of the appliance, and have a total size as indicated.
USA
Canada
A
30”
(762mm)
38”
(965mm)
B
34”
(864mm)
48.5”
(1,232mm)
C
16”
(406mm)
18”
(460mm)
D
0”
(0mm)
8”
(203mm)
E
6”
(152mm)
8”
(203mm)
E* - From edge of firebox opening to outside edge of floor protection.
WALL CLEARANCES (CLEARANCE DISTANCES)
The cook stove must be placed an appropriate distance from combustible
materials, to both the rear and sides. The Heatshield must be installed in
conjunction with these wall clearance distances.
F
4”
(101mm)
G
4.5”
(114mm)
H
13.5” (343mm)
I
7”
(178mm)
