Full Motion Wall Mount for 19–50" TVs
www.bestbuy.com/bestbuyessentials
OR
Option 2: Attaching the TV plate to TVs with irregular or
obstructed backs

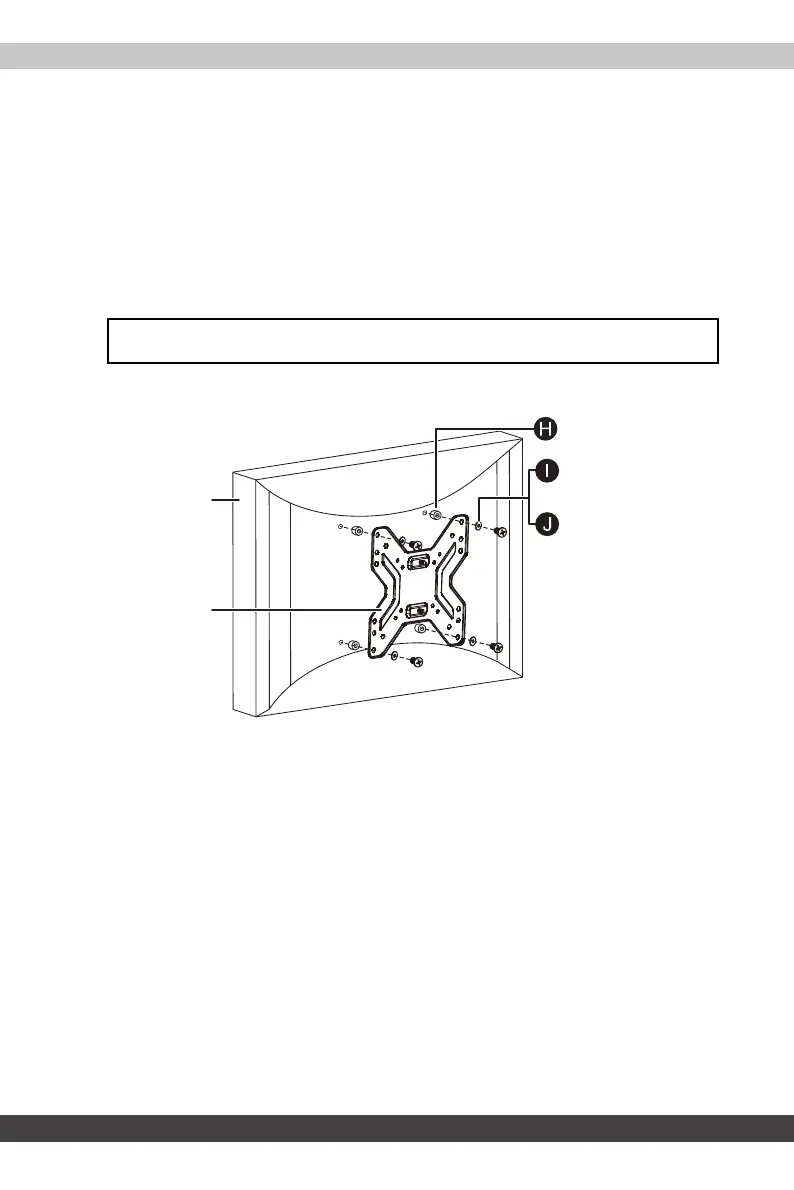

1 Place spacers (H) over the holes on the back of the TV.
2 Align the TV plate with the screw holes on the back of the TV. Make sure that the
plate is level.
3 Place washers over the holes in the TV plate. Insert screws through the washers, TV
plate, and spacers.
4 Tighten the screws until they are snug against the TV plate. Do not over tighten.
Note: The washer (I or J) size depends on the size of the screws used. Use the I washer
with screw A or screw C. Use the J washer with screw E or screw G.
Irregular or
obstructed back TV
TV Plate
With screw A or C
With screws E or G
