TV Bracket assemble
Fix the TV on the wall
1. First, put the TV on the table smoothly and put some soft cloth on the table to avoid scratching the
screen.

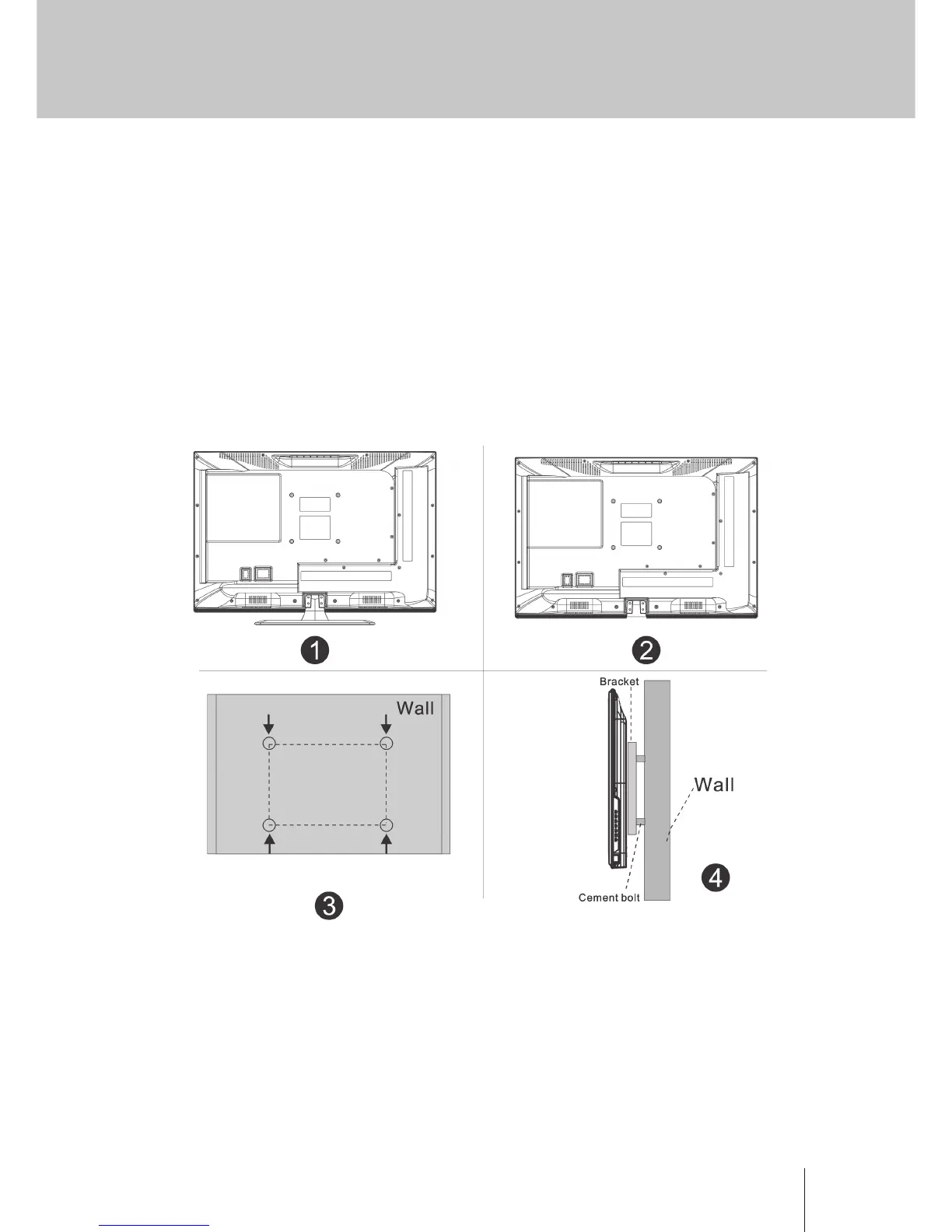

2. User the screw driver to take o the screws which are xed on the bottom stand (the direction of the
arrow, refer to the ptoto1).And take o the bottom stand (please take o the screws and bottom
stand carefully).
3. Make one bracket which can x on the wall according to the size of arrow direction of photo2 and
photo3.
4. Drill four holes properly on the wall (the size only for reference) and put into four screws.(optional
parts) Drill four holes properly on the wall (the size only for reference) and put into four screws.
(optional parts)
5. According to the step 4,use the screwdriver to lock the screw on the back of the TV. then hang the TV
on the wall.
Note:
1. The bracket xed on the wall is optional part.
2. when you assemble the TV, there should be no other articles on the around and front and please keep
the distance from other articles.
3. When assemble the TV, please ask the career man to x in order to avoid the danger.
4. The xing picture is only for reference.
5. Please follow the use manual about bracket assemble to x the TV.
6. Attach the mounting bracket from the VESA compatible wall mounting kit.
