Estella 348DSC67 - Page 9

8.

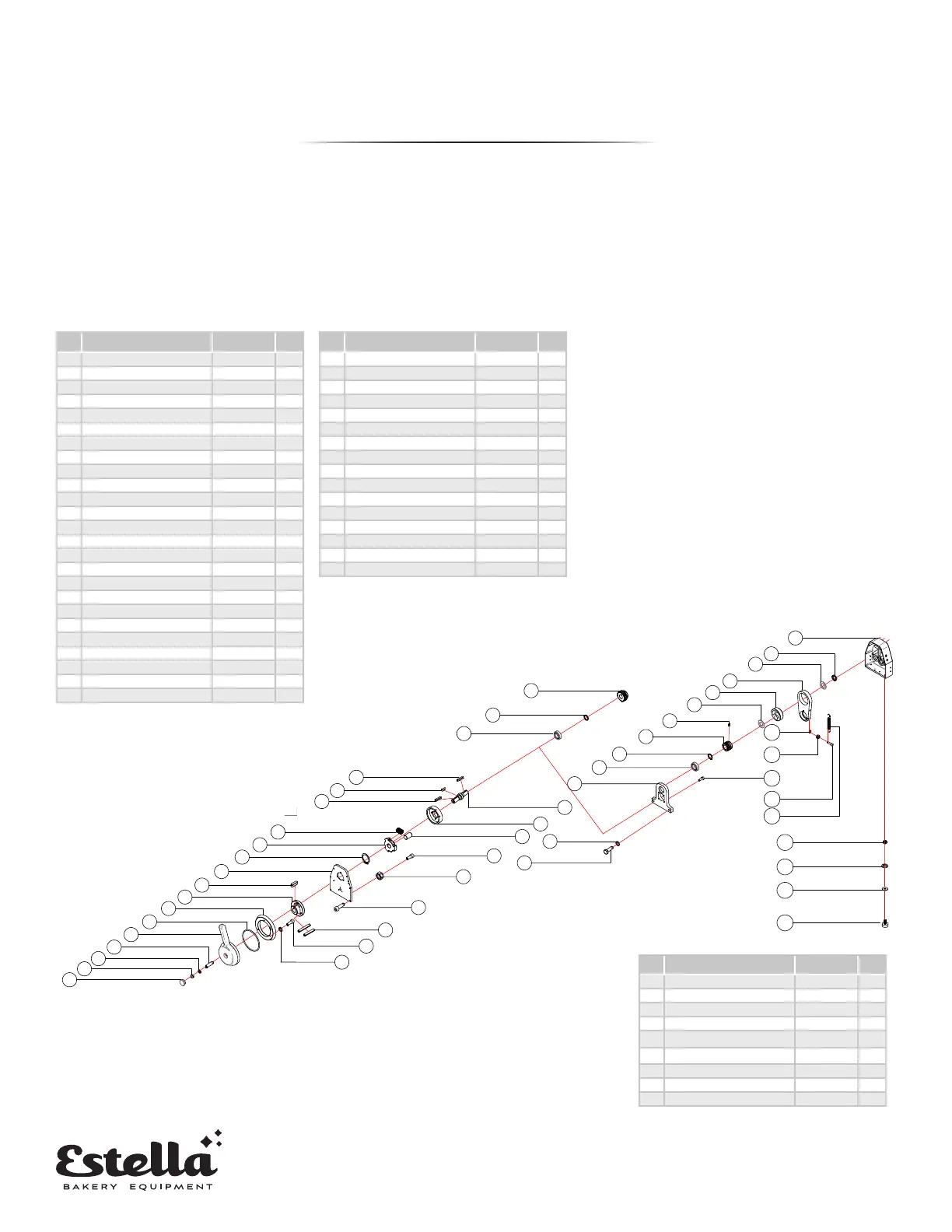

STARTER LEVER AND THICKNESS ASSEMBLY
46
47
48
49
50
51
52
53
54
55
56
59
60
57
58
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
111
112
113
114
115
116
118
119
117
:
:
:
:
:
:
SECTION NAME
DRW No.
Designer
Check
Review
Scale
Date
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
DESCRIPTION
VERSION DESRIPTION
DATE
1st Drawing 2019/05/19A
B
C
D
E
F
DES IGNER
PRODUCT NAME
TABLE TOP
DOUGH SHEETER
TT-D18A
TT-D18B
START LEVER
AND THICKNESS
ASSEMBLY
START LEVER AND
THICKNESS ASSEMBLY
No Description Code Qty
46 Arm TT520010 1
47 Washer 6mm TT520770 1
48 Flat pad 3mm 1
49 Wheel adjustment block TT520100 1
50 Eccentric block TT520210 1
51 Flat pad 3mm 1
52 Set screw M8x12L 1
53 Brake gear TT521870 1
54 Washer 3mm TT520770-1 1
55 6005 bearing 1
56 Brake bearing xing seat TT521820 1
57 Rotary shaft of brake TT521860 1
58 Brake xing seat TT521830 1
59 ￠ 10 spring pad 1
60 Hex bolts M10x30L 1
61 Brake cylinder TT521890 1
62 Socket head bolt M6x15L 1
63 M6 nut 1
64 Socket head bolt M6x20L 1
65 5x30 cotter pin 1
66 Socket head bolt M5x15L 1
67 5 spring pad 1
68 Brake gear TT521880 1
69 washer 22x￠32x3mm 1
70 6005 bearing 1
No Description Code Qty
71 C type 6xx6x30 at key 1
72 A type 6x6x12 at key 1
73 A type 6x6x35 at key 1
74 Spring 0.9x9x14 1
75 Brake TT521840 1
76 24 axis circlip 1
77 Cover TT520030 1
78 A type 6x6x18 at key 1
79 Brake rotating disc TT521850 1
80 Fixed dial TT521910 1
81 Sealing ring TT521920 1
82 handle TT520050 1
83 Headless screw M10x35L 1
84 ￠ 10 at pad 1
85 M10 hat 1
86 HP-25 button plug 1
No Description Code Qty
111 M12 nut 1
112 12 spring pad 1
113 12 Flat pad 1
114 Big foot pad TT450950 1
115 8 spring pad 1
116 M8 nut 1
117 Socket head bolt M6x16L 1
118 Socket head bolt M8x30L 1
119 Tension spring 1.6x16x76.8 1
COUNTERTOP MODEL
PARTS DIAGRAMS
