ESX SX-260 - Page 25

2 Channel Amplifer - Applications
SX-260/SX-2100/SX-2150

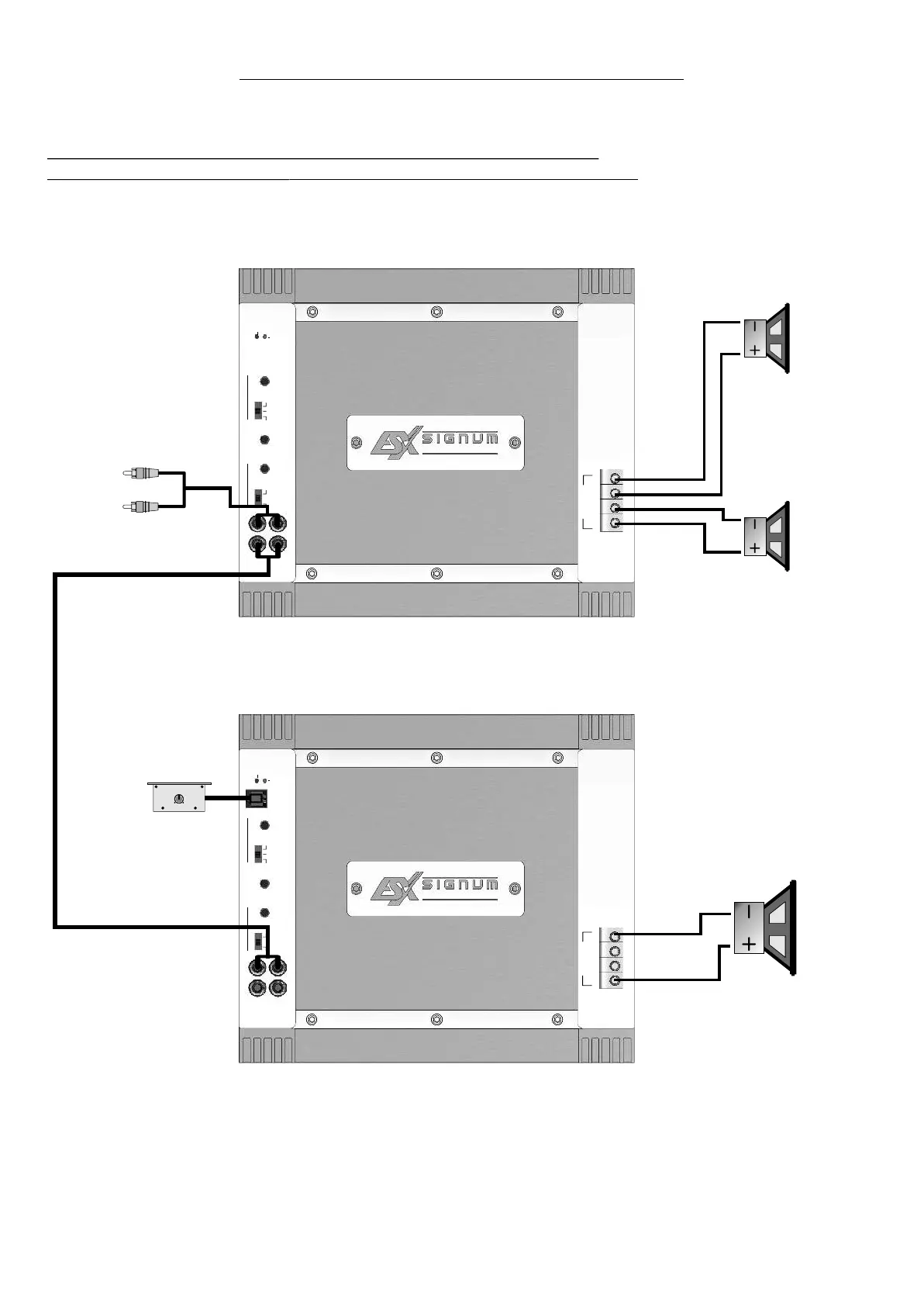

One 2 Channel Amplifier in Stereo Mode (Front Amplifier) with
One 2 Channel Amplifier in Mono/Subwoofer Mode (Rear Amplifier)
Subwoofer 4 - 8 Ohms
Connect cable from
REMOTE CONTROL with
the input jack from the
amplifier (only SX-
2100/SX-2150).
Speakers (Left) 2 - 8 Ohms
Speakers (Right) 2 - 8 Ohms
Connect RCA cable from
head-unit with RCA input
(INPUT).
Bass (Rear) Amplifier
Connect OUTPUT of Stereo
Amplifier with INPUT of
Bass Amplifier.
Stereo (Front) Amplifier
