Cleaning (customer) Cleaning and maintenance

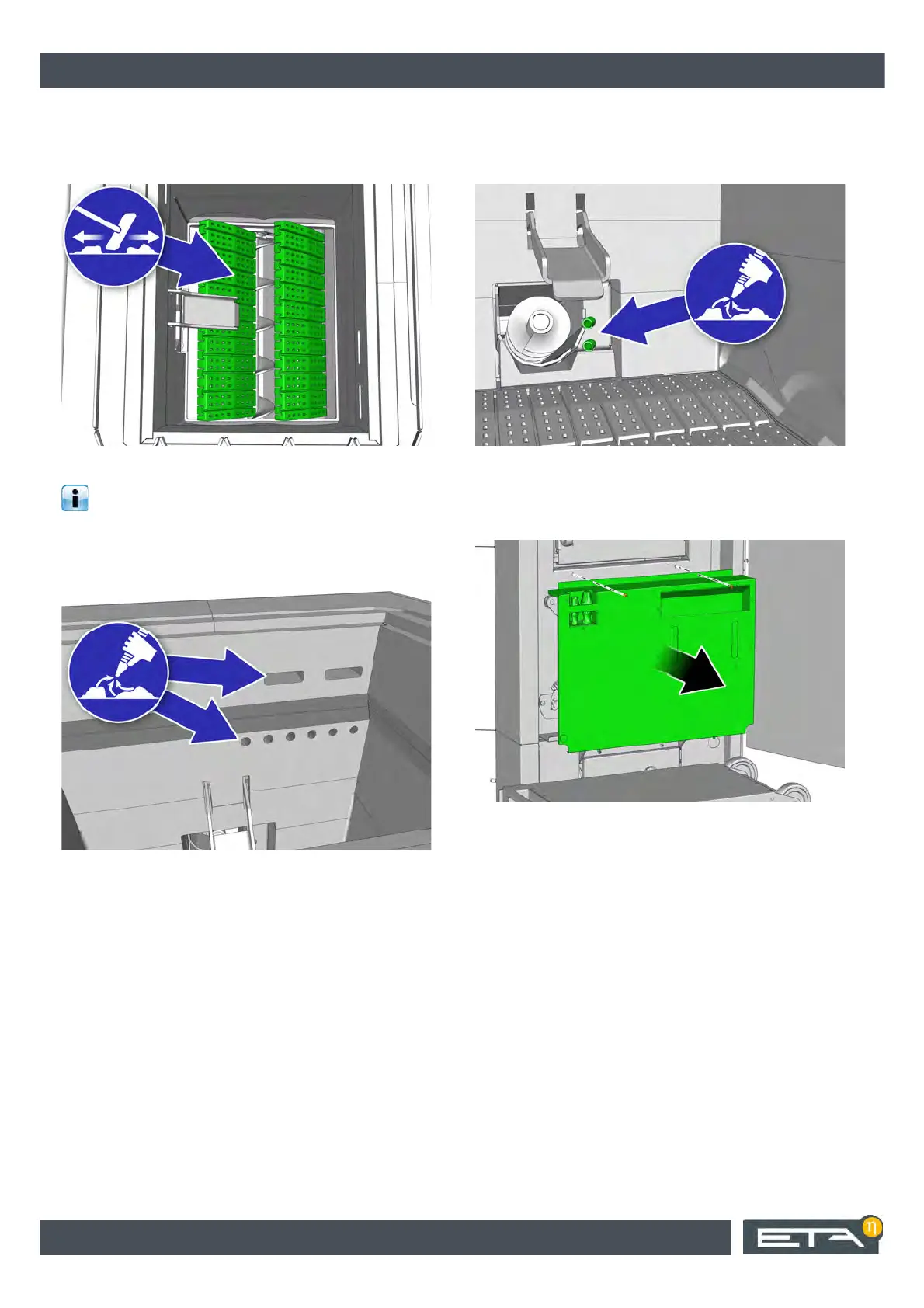

Cleaning the tilting grate
Clean the tilting grate as well as the openings in the
tilting grate with the poker. Allow the ash to fall down.
Fig. 2-19: Tilting grate
Do not hit the tilting grate with the poker.
Cleaning the secondary air openings
Clean the opening for the secondary air (above the
tilting grate) with an ash vacuum, for example.
Fig. 2-20: Secondary air openings
Cleaning the ignition tubes
Clean both ignition tubes by suction and carefully
remove any deposits.
Fig. 2-21: Ignition tubes
Remove the cover on the front
Remove the cover from the front of the boiler.
Fig. 2-22: Cover
