26 www.eta.co.at
Getting to know the control system ETAtouch controller
Using the arrow keys, set the time. Tap on the date
field to open the calendar. Press the [Save] button to
save. Subsequently, the system settings are closed by
tapping the symbol.
6.1.6.4 Changing the names of function
blocks
Renaming function blocks
You can individually adapt the names of function
blocks to make them easier for you to recognise.
Be sure to keep the name short. This improves
the clarity of the screen.
To change a name, first open the desired function
block settings using the [Settings] button. Below
the hot water tank function block is explained.

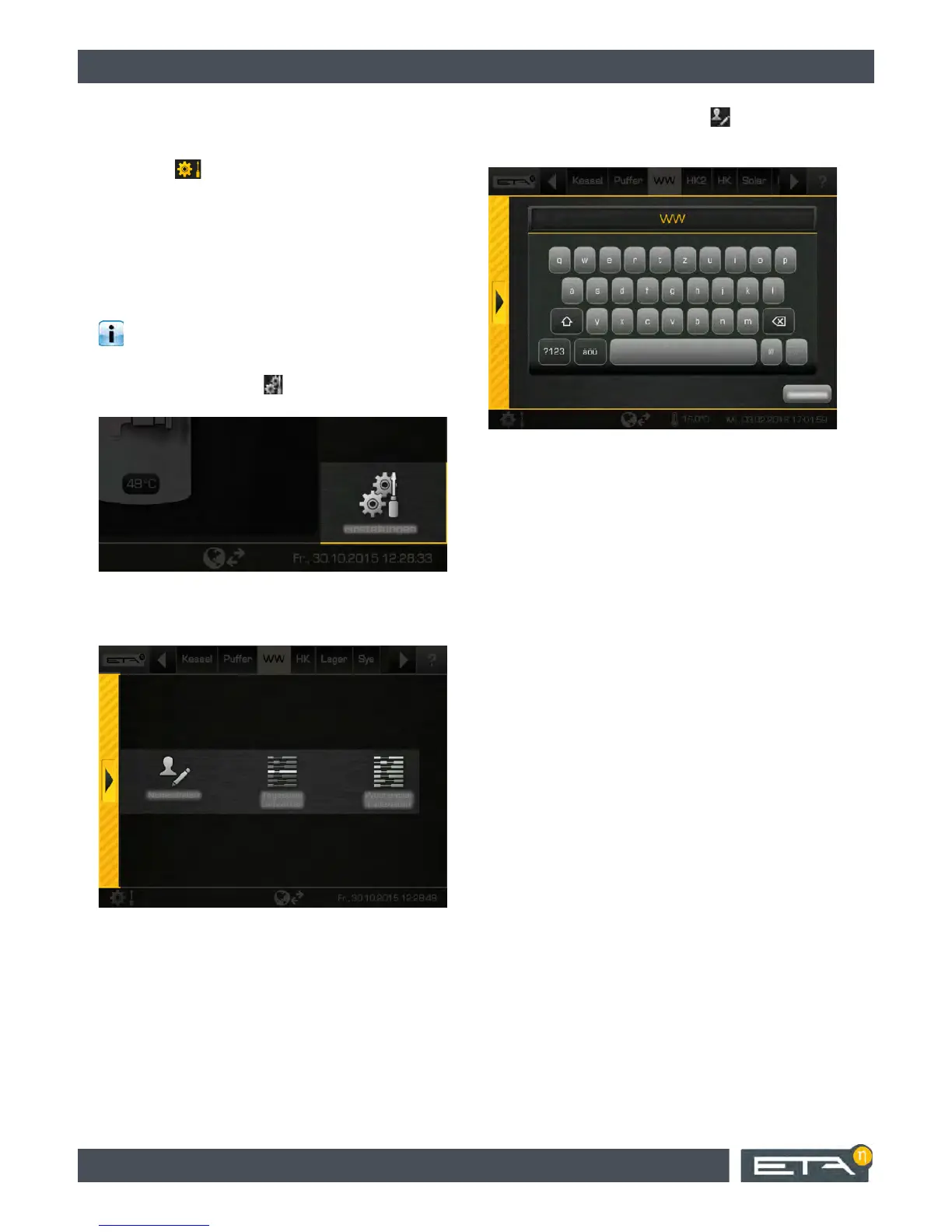

Fig. 6-18: Function block settings
An overview of the setting options appears. These
depend on the function block and can vary in number.
Fig. 6-19: Overview of the settings menu
To change the name, tap on the [Change name]
symbol. An on-screen keyboard appears in order to
enter the new name.
Fig. 6-20: On-screen keyboard
Press the [Save] button to save. To cancel, close the
window using the arrow on the left side.
6.1.6.5 Switch between function blocks
The principle of "producers" and "consumers"
In the user interface, the "producer" of the function
block and (if present) also the "consumer(s)" are
displayed. Producers are those components of the
heating system that produce heat, for example the
boiler or the buffer. Consumers are those components
which absorb the heat, for example the heating circuit
or the hot water tank.
The principle of "producers" and "consumers" are
explained using the example of the buffer below. The
buffer is charged by the boiler. The boiler is a
"producer" for the buffer, and the buffer is a
"consumer" of the boiler.
The heating circuit and the hot water tank are
connected to the buffer. Thus, the buffer is a producer
for the two consumers, namely the heating circuit and
the hot water tank.
