In the user interface, producers for the function
block are always displayed on the left side and
consumers on the right side.

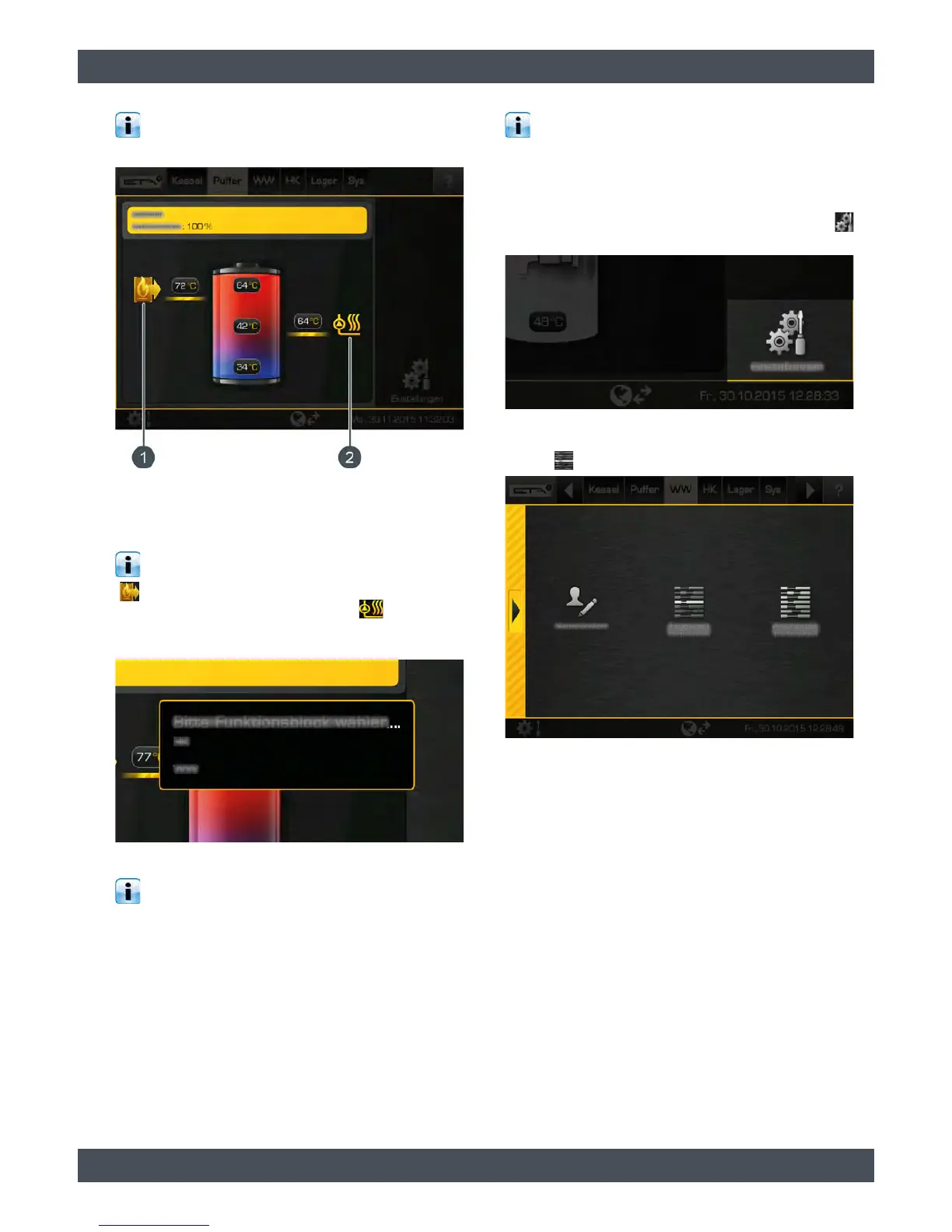

Fig. 6-21: Consumers and producers in the overview
1 Producers (in this example the boiler)
2 Consumers (e.g. heating circuit, hot water tank)
These symbols are also used to navigate. For
example, tapping the symbol of the producer
( )switches to its function block. The same works
with the symbol of the consumer ( ). If several
producers or consumers are present, a selection
window appears.
Fig. 6-22: Selection window
The symbols for both producers and consumers
vary between the function blocks.
6.1.6.6 Setting a time window
Setting the charging and operation times
In some function blocks, the time window for charging
the tank (for example the buffer and hot water tank), or
the operating times (for example for the heating circuit)
are set. This time window must be created in the
settings of the respective function block.
Subsequently, the setting of the charging times
and temperatures will be described in relation to
the hot water tank. This example applies accordingly to
other function blocks.
Open the overview of the time window settings
1. Open the settings for the function block with the
[Settings] button.
Fig. 6-23: Open the settings
2. Access the charge times of a particular day with
the [Charging times Daily plan] button.
Fig. 6-24: Access charging times
