Example with solar heating system and stratified charging module Examples
5.2 Example with solar heating
system and stratified charging
module

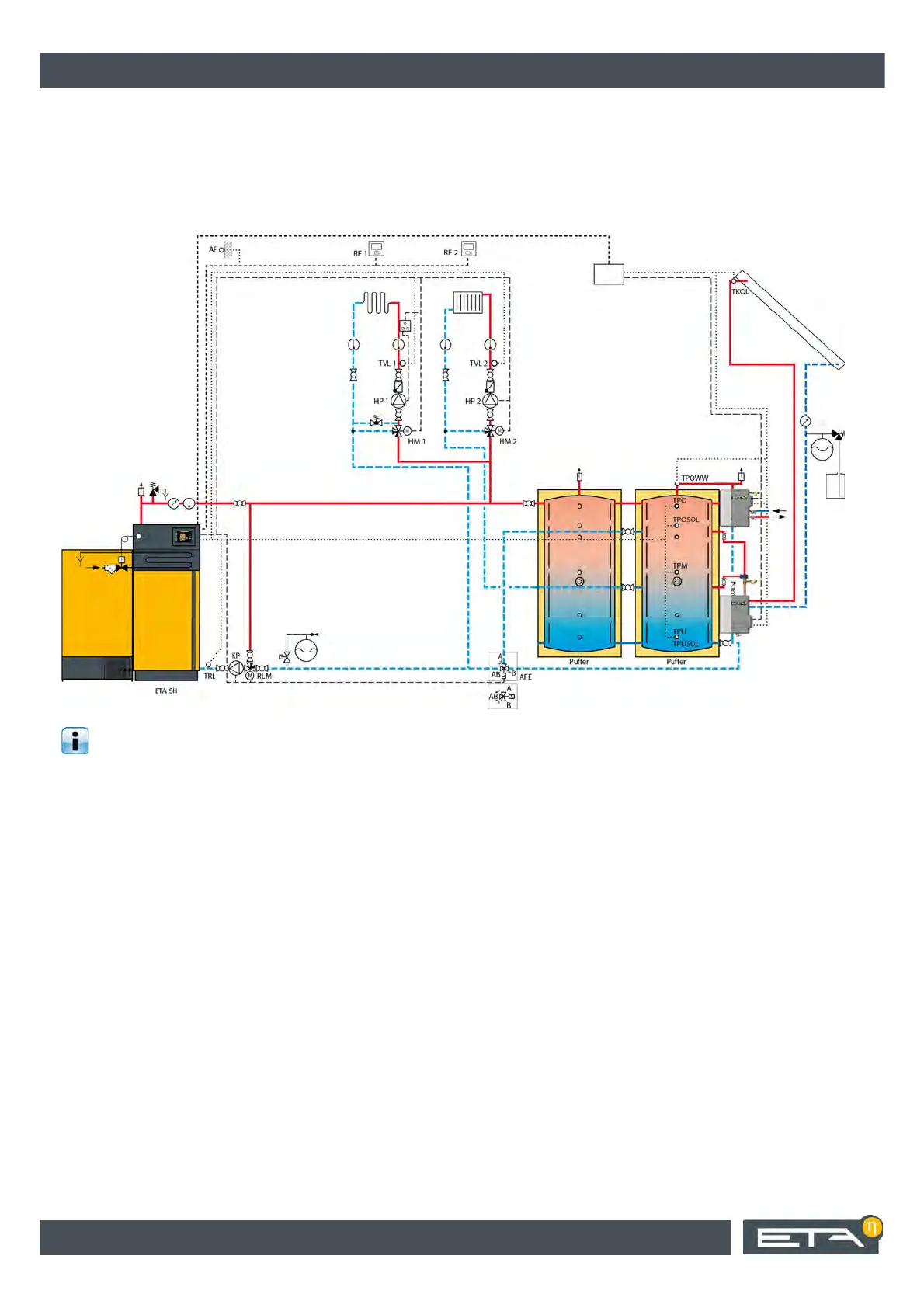

Hydraulic schematic
In this example, 2 GM-C circuit boards are
installed. The first of these is factory-installed in
the log boiler. The two heating circuits are to be
connected on this GM-C circuit board.
The second GM-C circuit board is located in the wall
mounted box supplied with the stratified charging
module for the buffer storage tank. The buffers, the
fresh water module and the solar heating system are
to be connected to this board.
