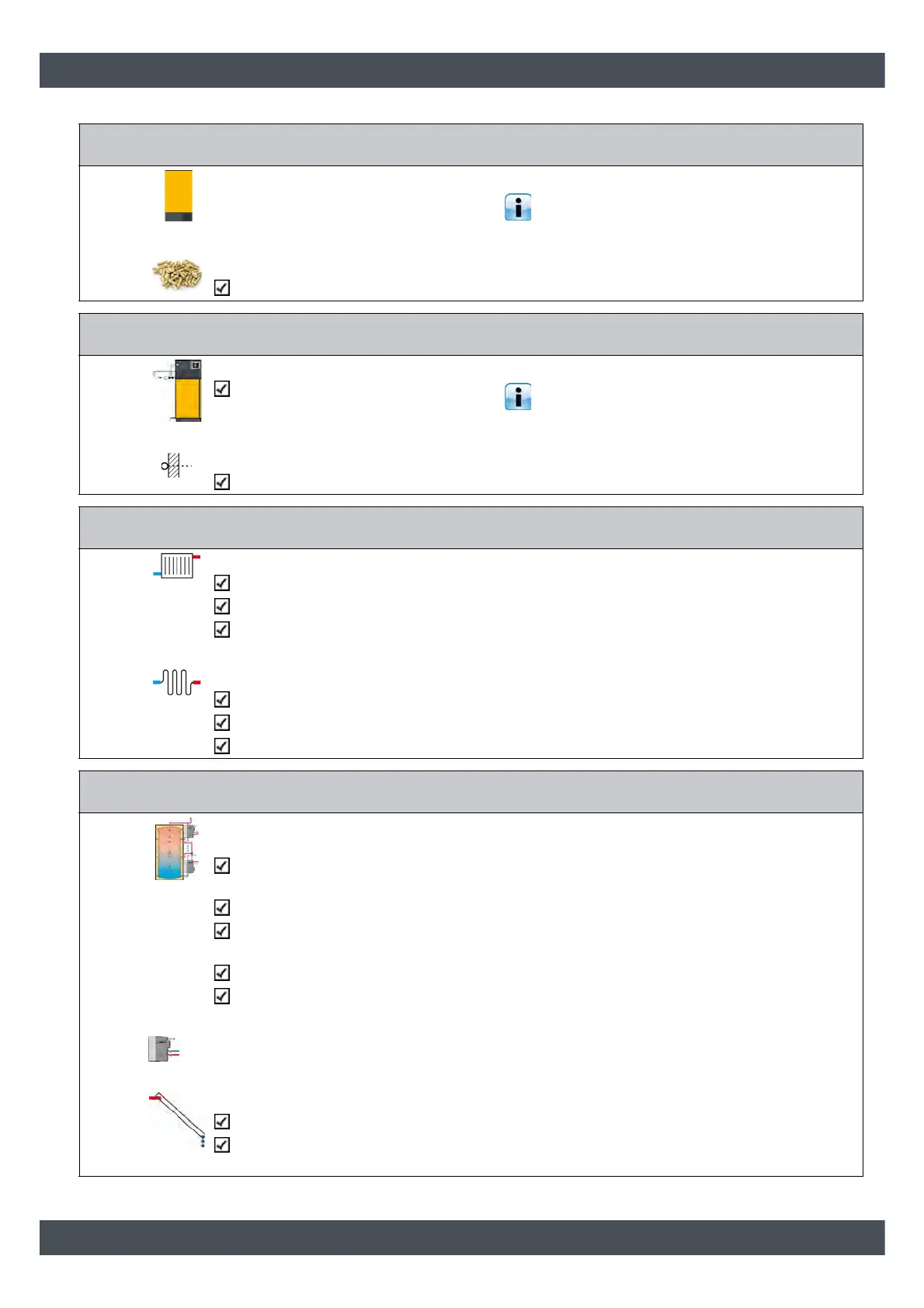

Examples Example with solar heating system and stratified charging module
Circuit
board
Function blocks Description
PE-C 0 Twin TWIN pellet burner
In the boiler settings, adjust the installation
side.
PE-C 0 Standard store Pellet discharge conveyor
Standard screw Standard conveyor with screw
Circuit
board
Function blocks Description
SH-C 0 Boiler SH log boiler
TWIN pellet burner In the boiler settings, adjust the installation side
of the secondary engines.
SH-C 0 Sys System
Outside temperature sensor
Circuit
board
Function blocks Description
GM-C 0 Heating circuit External heating circuit as radiator heating
Heating circuit pump
Heating circuit mixing valve
Digital room sensor
GM-C 0 Heating circuit External heating circuit as underfloor heating
Heating circuit pump
Heating circuit mixing valve
Digital room sensor
Circuit
board
Function blocks Description
GM-C 1 Buffer Buffer with fresh water module and stratified
charging module
Temperature sensor for the fresh
water module (1 pump)
For the fresh water module
Solar charging For solar charging by stratified charging module
... additional solar charging in buffer
middle
For stratified charging of buffer by stratified charging
module
Temp. sensor at buffer middle
Start relief for log boiler
GM-C 1 FWM 1Pump Fresh water module
GM-C 1 Solar panel Solar heating system
Ext. heat exchanger For stratified charging module's heat exchanger
... with stratified charging valve For changeover between bottom and middle of
buffer
