ETC Installation Guide
Echo Inspire Station
Install the Wall Plate
The wall plate is secured to the station with built-in magnets.
1. Align the top of the wall plate to the station and
angle the bottom approximately 20 degrees.
2. Hook the top of the wall plate to the tabs located
on the station electronics assembly. To ensure the
wall plate is hooked properly on the top hook,
wiggle it slightly side to side.

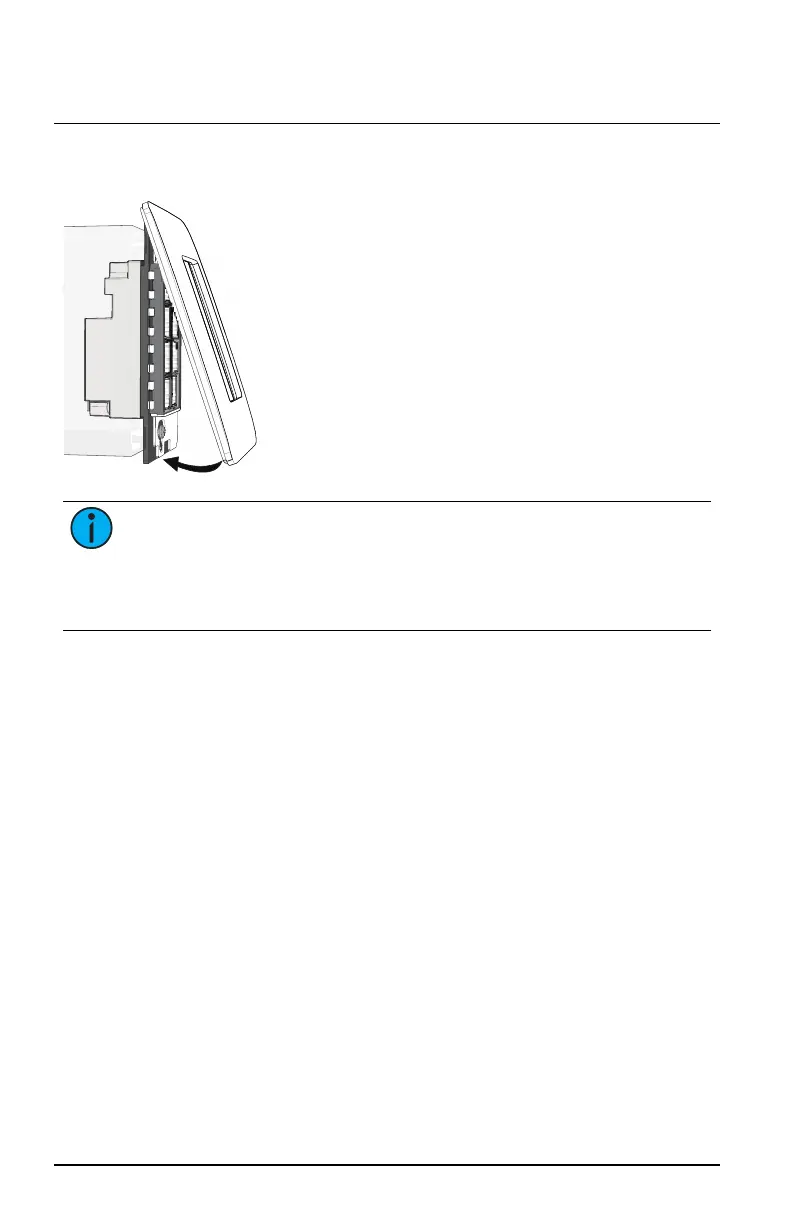

3. Swing the bottom of the wall plate down until the
magnets engage.
4. If the wall plate does not fully attach automatically,
wiggle the bottom of the plate until all of the
magnets are seated properly to the station and the
plate is secure.
Note:
If you are installing a multi-gang wall plate and the stations
are misaligned in the back box, the wall plate will not attach properly.
Loosen the screws that secure the station to the back box, adjust each
station to improve the alignment, secure the screws, and then install
the wall plate again.
