4 Source Four Zoom Assembly Guide
25°–50° Basic Fixture
Assembling Basic Fixture
1: Follow instructions under Assemble lamp socket on page 6 .
2: Follow instructions under
Installing reflector on page 10 .
3: Follow instructions under
Assemble front barrel assembly on page 12
4: Follow instructions under Assemble lens tube (15°–30° and 25°–50°) on page 18 .
5: Insert lens tube assembly (1) fully into the reflector housing assembly (2). Turn lens tube assembly
1/4 turn and align the two mounting holes. Secure with screw (6) on top, and knob (4) on
bottom. Tighten both securely. See
Figure 1 or Figure 2 .
6: Install the lamp socket assembly (3) to the reflector housing (2) and secure with brass knurled
screw on rear of lamp socket assembly.
7: Release the gel retaining clip by pushing it sideways while gently pulling backwards.
8: Insert the color frame.
9: Lock the clip by pushing sideways while gently pushing it forward.
Reference
Number
Part
Number
Description
Quantity
Required
1 7060A2032 25°–50° lens tube 1
2 7060A2020 Reflector housing assembly, double clutch 1
3 7060A2008 Lamp socket assembly 1
4 7060A4008-01 Knob set with male insert 1
5 7060A4037 Handle, insulated rear 1
6 HW5197 Screw, 1/4-20 x 5/8, black zinc 1
7 HW2181 Screw, 6-32 x 3/4, black Taptite 4

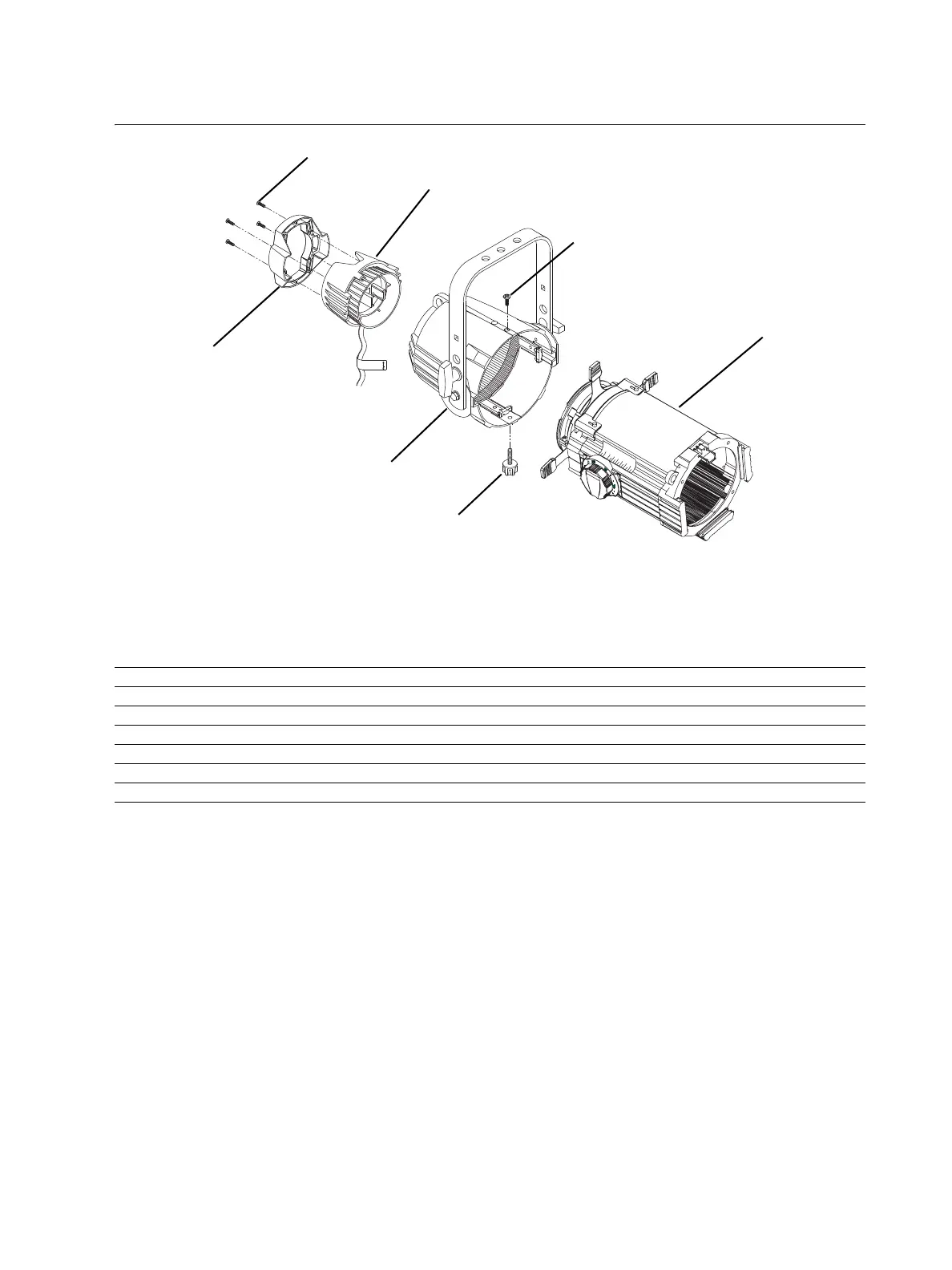

Figure 2
1
2
3
4
5
6
7
