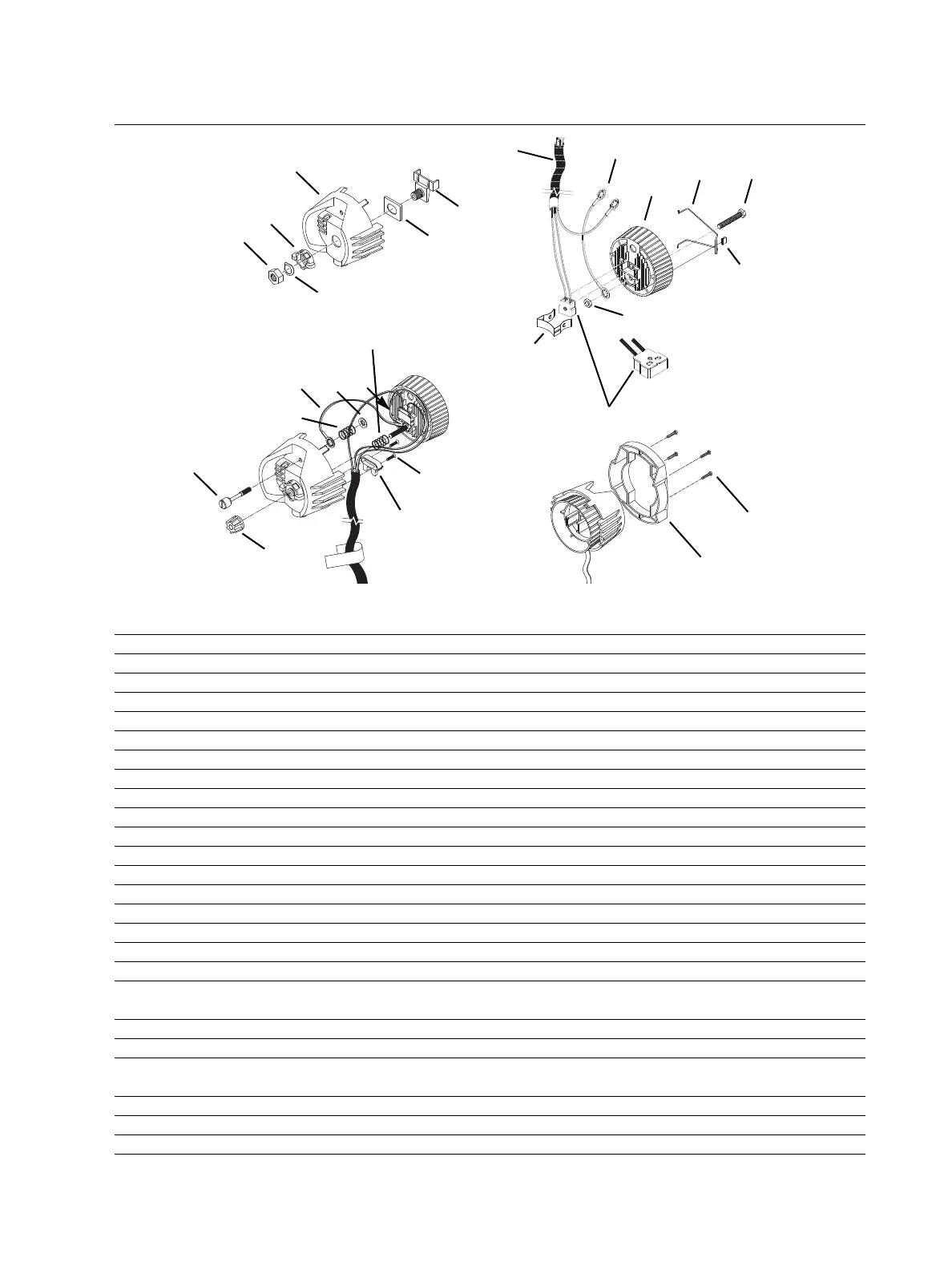

Lamp Socket Assembly 5
Lamp Socket Assembly
Reference
Number
Part
Number
Description
Quantity
Required
1 7060A3055 Housing, socket, casting, painted 1
2 7060A3007 Socket, light baffle casting, raw 1
3 7060A4007 Knob, X-Y, lamp set 1
4 7060A4008-02 Knob, Z, lamp set w/female insert 1
5 7060A4011 Bushing, cup 1
6 7060A3011 Hub, index, casting 1
7 7060A3012 Spring, lamp retainer 1
8 HW748 Spring, compression 1
9 7060B7019 Complete UL socket assembly 1
10 HW534 Nut, hex, 1/4-20, black zinc 1
11 7060A3025 Screw, 1/4-20 knurled head 1
12 HW746 Retaining ring, flat, Southco 1
13 HW5123 Nut, hex, 9/16-18, black zinc 1
14 HW747 Washer, wave 1
15 7060A3056 Clamp, strain relief, painted 1
16 HW3103 Screw, 8-32 x 5/8 PhFHMS, black zinc 2
17 HW5122 Bolt, 1/4-20 x 1.75, full thread, black zinc 1
18 HW8209 Clip Tinnerman 1
19 7060B7003
48" W420 wire, 16 gauge, 200° C/300V, green UL
1180/CSA AWM with lug J490T installed
1
20 W6195 36" sleeve, fiberglass 1
21 HW749 Spring, ground 1
22 7060B7007
4" W420 wire, 16 gauge, 200° C/300V, green, UL
1180/CSA AWM with two J490T lugs installed
1
23 7060A4037 Handle, insulated rear, black 1
24 HW2181 Screw, 6-32 x 3/4, Taptite 4
25 7060A3085 Source Four Lamp Retainer Wire 1
6
5
1
13
14
20
21
9
10
22
2
25
17
18
23
24
11
4
3
8
12
15
16
19
7
22
Figure 3
