Wall Mounting
It is recommended that you call your local TV
dealer or a licensed contractor to secure the
television to the wall using a suitable VESA
400
x 200 wall mount hardware.
Removal of TV Pedestal
for Wall Mounting
To remove the pedestal base from the
television, unscrew the (5) Philips head
screws and remove the entire assembly.

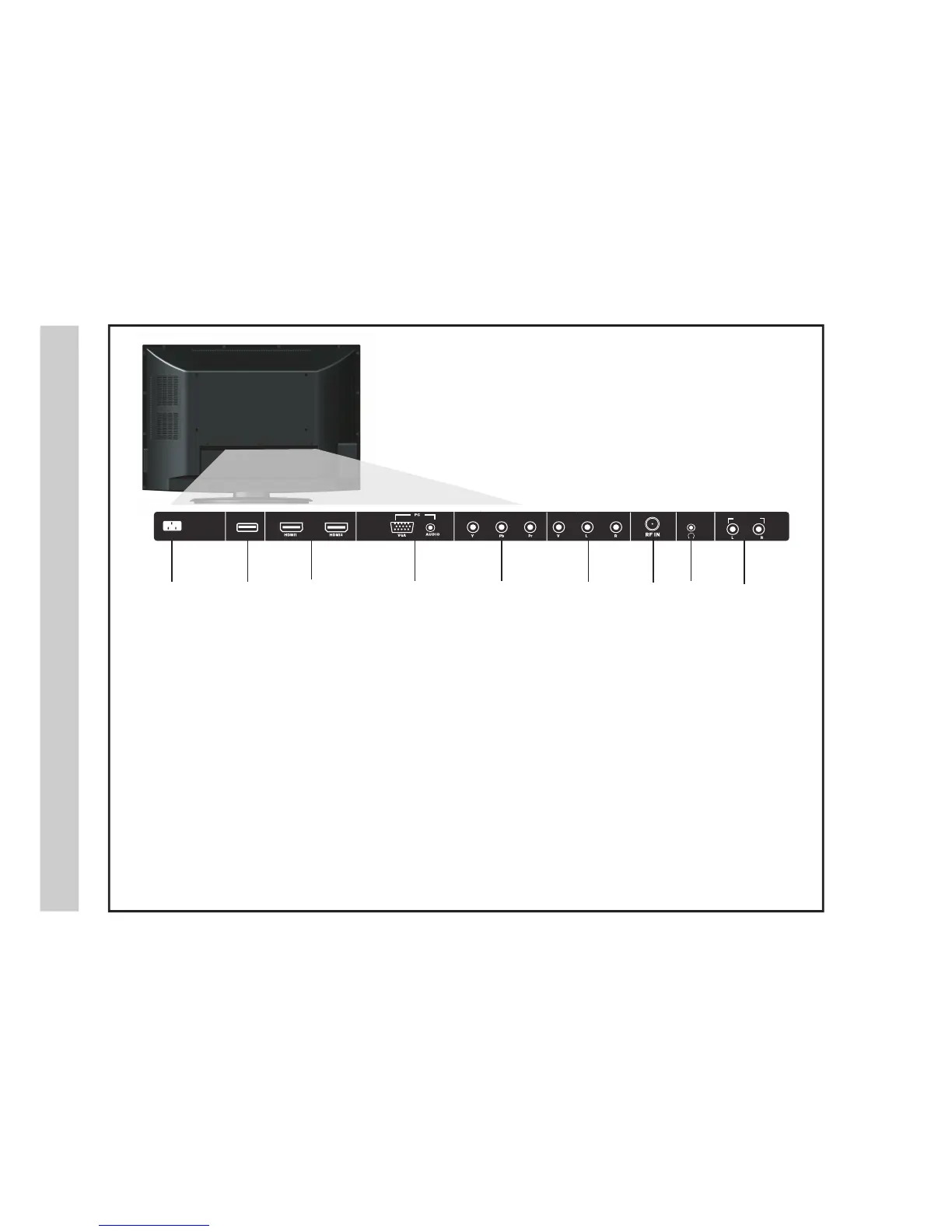

1. AC Power Plug – Insert power plug during initial setup.
2. USB Input Port - Connect to portable USB device such as USB
flash / hard drive (max storage capacity 400GB), supports MP3 and JPEG.
3. HDMI Inputs (2)
- Connects to digital AV equipment that feature HDMI
video and
connectivity. HDMI supports enhanced high definition
up to 7.1
- channel digital audio all from one cable. Recommended
for best performance. HDMI cable not included.
4. PC IN
- VGA Input - Connect an optional VGA cable (not included)
from your personal computer
.
PC Audio Input (3.5mm)
- 3.5mm audio cable (not included)
for sound.
8. Headphone Jack - Connect a stereo headphone (3.5mm – not included)
for private listening.
5. Component Y Pb Pr Input
- Connect to an AV device that
features component (Y Pb Pr) video and audio output jacks.
6. AV Input
- Connect an external device to the composite VIDEO
(Y) and AUDIO (L / R) output jacks found on most video equipment.
7. RF Input
- Connect an antenna or cable connection
for television reception.
Note: Use an outdoor antenna, cable or satellite for best reception.
9. L / R Audio Out
- Connect to audio receiver.
1 2 3 4 5 6
8
9
POWER
AUDIO OUT
USB
7
