16 DSC2P Hardware Manual
ETEL Doc. - Hardware Manual # DSC2P / Ver H / 6/1/11
2.2 Housed format with power supply
There is one size of DSC2P housed format: the DSC2Pxx4-xxx (72 x 224 x 376 mm).

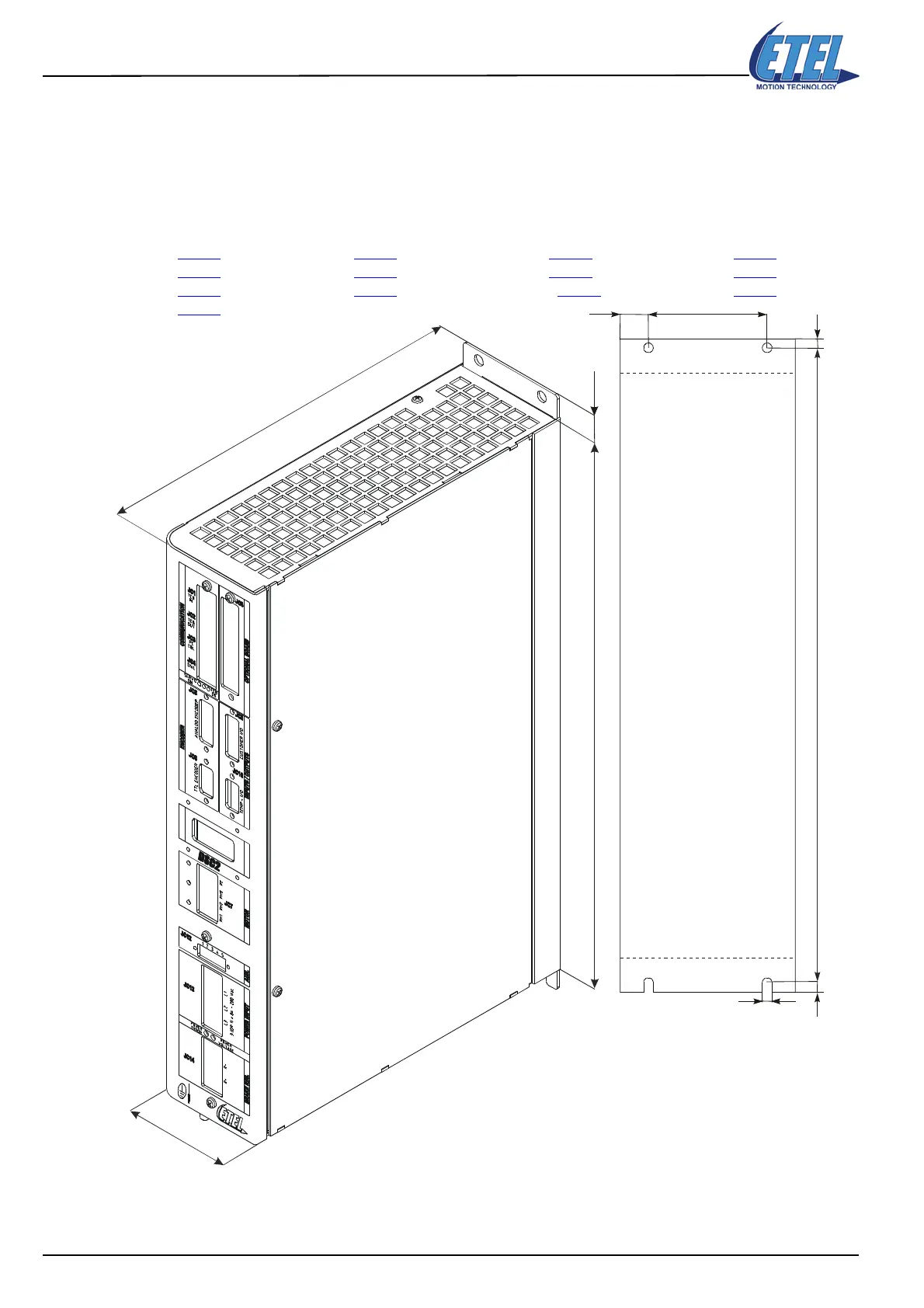

2.2.1 Outline and dimensions
Remark: 2 mm must be added to the above-mentioned width of the controller to take the screw heads into
account.
Refer to the following chapters for details about the connectors:
JC1 (see §3.3.1
)JC5 (see §3.1.2)JC8 (see §3.6.1) JC12 (see §3.5.3)
JC2 (see §3.3.2
)JC6 (see §3.1.2)JC9 (see §3.2.1) JC13 (see §3.5.2)
JC3 (see §3.3.3
)JC7 (see §3.4.2) JC10 (see §3.2.1) JC14 (see §3.5.4)
JC4 (see §3.3.4
)
14
6
13 46
348
363.5
Unit: [mm]
weight: 5 Kg
6.5
6.5
∅ 6.5
224
72
