Etel DSC2P Hardware Manual

ETEL Doc.- Hardware Manual # DSC2P / Ver H / 6/1/11

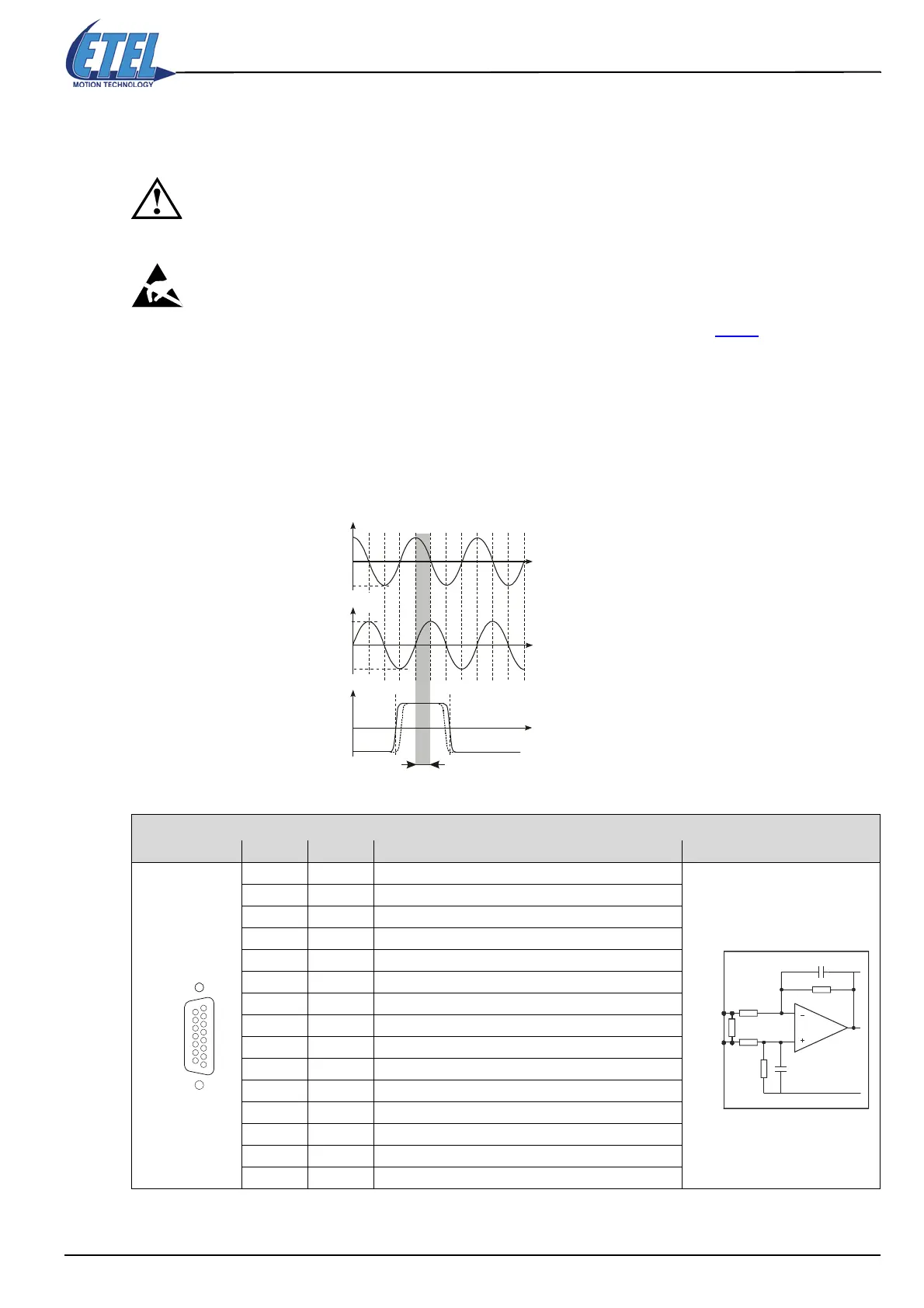

DSC2P Hardware Manual 23
3.1 Encoders connectors
3.1.1 Connector JC5: Analog position encoder (1Vptp, EnDat 2.1)
Caution: The encoder cable must be insulated (no contact) from the power and the mains.
The inputs and outputs of this connector are not galvanically insulated from the GND.
The inputs and outputs must be connected to an Extra Low Voltage circuit only
(SELV).
Caution: The encoder connector must be handled in an ESD protected environment, only.
Remark: The encoder cable(s) connected to the DSC2P must be shielded (see §3.7.1
).
Two different types of encoder can be connected to the analog encoder connector: either an
incremental analog encoder 1 Vptp or an analog absolute encoder (EnDat 2.1).
3.1.1.1 Incremental analog encoder (1 Vptp)
The incremental analog encoder has 1 Vptp signals with a load resistor R
0
=120Ω. It determines the motor
position thanks to two sinusoidal signals with a 90° phase-shift (sine and cosine). A third signal, the index (also
called reference mark), gives the absolute motor position:
The +5VDC encoder supply output is protected by the fuse F3 (1A) on JC5, JC6 and JC10.
Remark: Refer to the corresponding ’Operation & Software Manual’ for more information about the use
of EHO and ELS signals. The EHO signal is only present from the DSC2Pxxx-xxxC.
D-SUB, 15 pins, female
ANALOG ENCODER Pin # Signal Function Interface
1ReservedDo not connect
2ReservedDo not connect
3ReservedDo not connect
4 +5VDC Encoder supply output (protected by fuse F3 of 1A)
5 GND Encoder supply output (0V)
6 COS - Cosine - signal input
7 SIN - Sine - signal input
8 IDX - Index - signal input
9ReservedDo not connect
10 EHO Encoder home switch input (TTL signal)
11 ELS Encoder limit switch input (TTL signal)
12 GND Encoder supply output (0V)
13 COS + Cosine + signal input
14 SIN + Sine + signal input
15 IDX + Index + signal input
Position
Position
Position
Sine
Cosine
Index
+0.5V
+0.5V
-0.5V
-0.5V
0V
0V
Reference mark acquisition zone
ANALOG ENCODER
JC5
1
8
15
9
COS +
SIN +
IDX +
COS -
SIN -
IDX -
R
R
R
C
C
DSC2P
