Eternity Plus M26 - Wiring Diagram

23

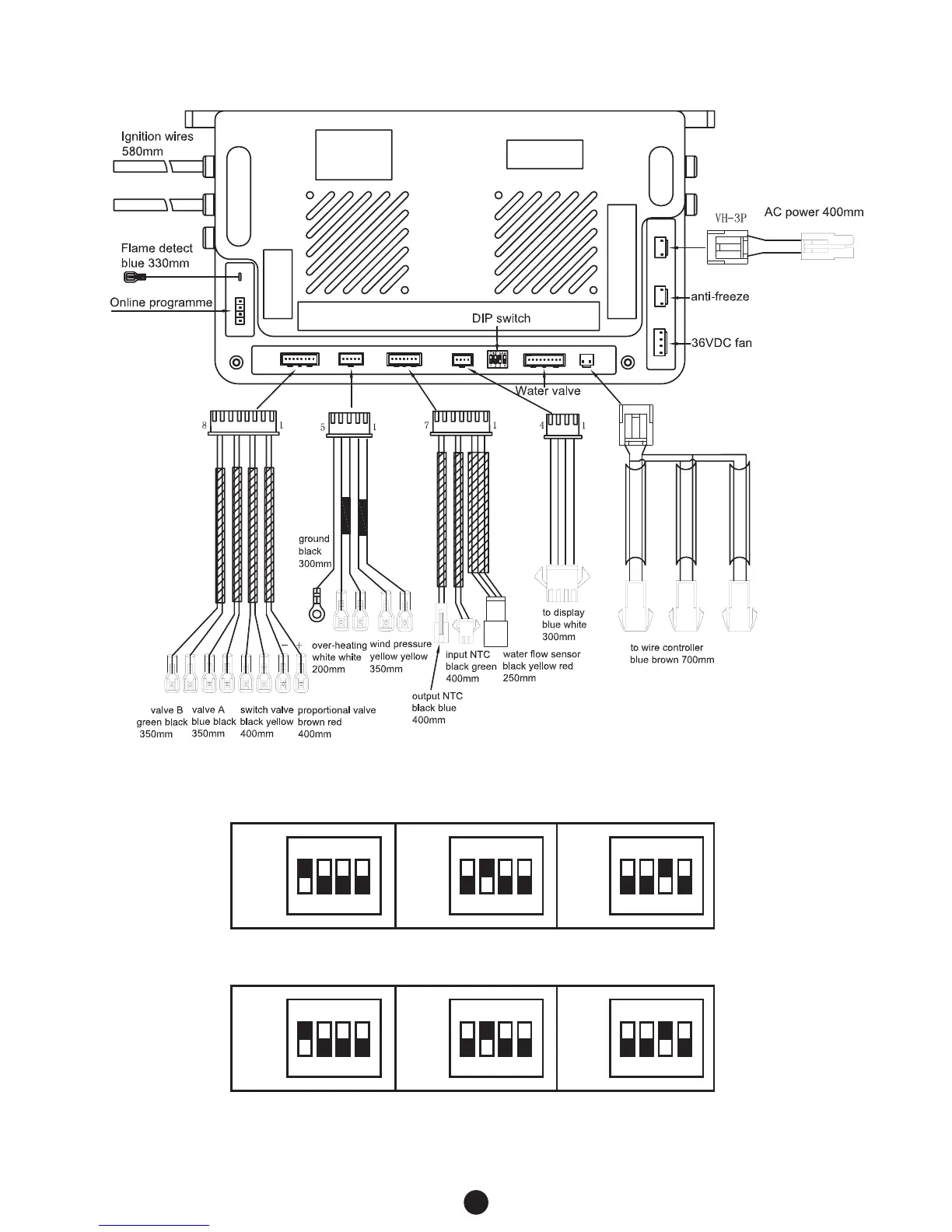

8.4 WIRING DIAGRAM
●
ON SAB
1 2 3
4
55 ℃
ON SAB
1 2 3
4
60 ℃
ON SAB
1 2 3
4
70 ℃
ON SAB
1 2 3
4
42 ℃
ON SAB
1 2 3
4
45 ℃
ON SAB
1 2 3
4
48 ℃
The Temperature setting of 70°C mode
●
The Temperature setting of 50°C mode
