24-Port Web-Smart Ethernet Switch
User’s Manual
17

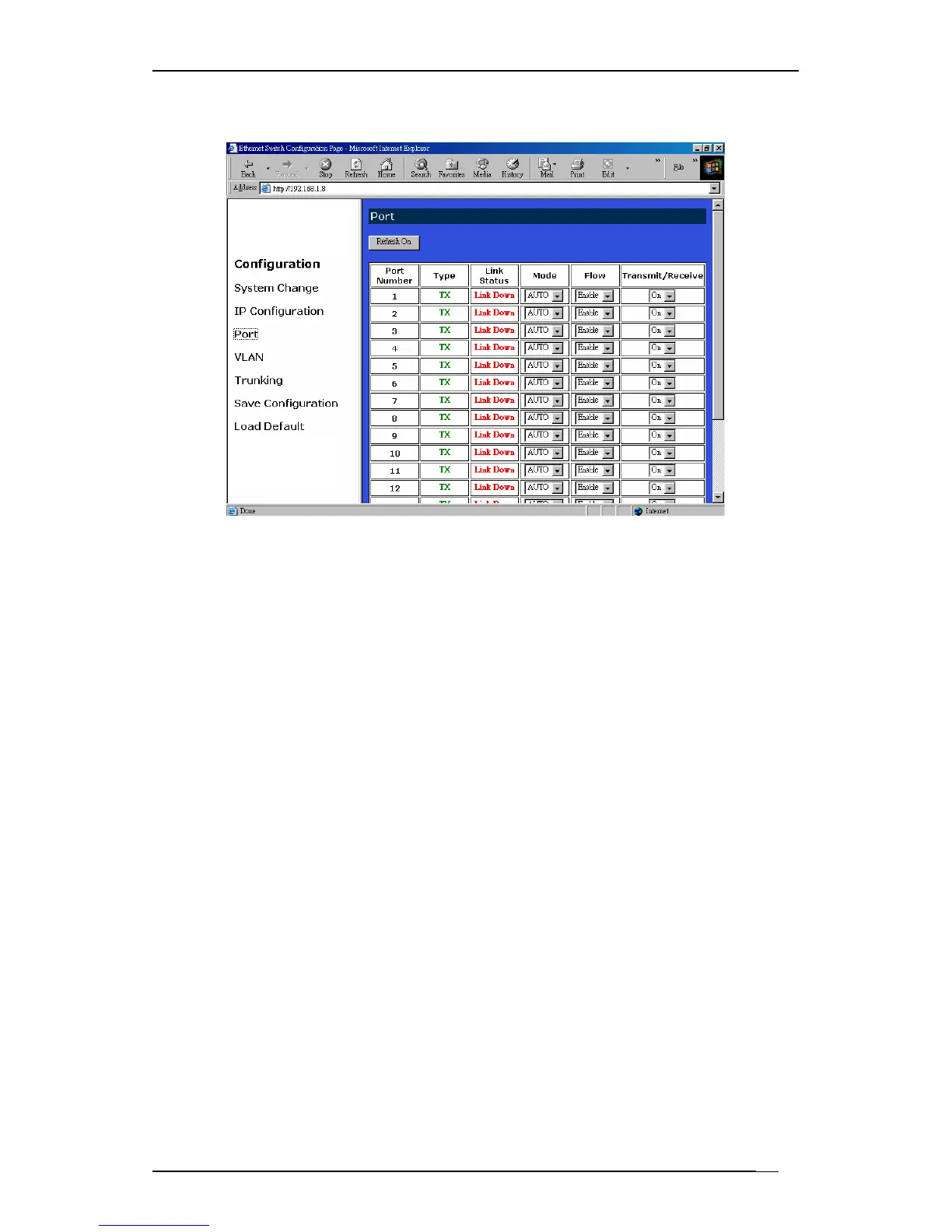

PORT
z Refresh: Click the Refresh On or Refresh Off button to
or not to refresh back to the last saved settings of the
ports.
<Note> It is recommended to change the Refresh On
button to Refresh Off while you change the settings of
the ports. The Refresh On will refresh the settings of
the ports shown on the screen around every ten
seconds.
z Mode: Choose AUTO, 10HD, 10FD, 100HD or 100FD
for the ports.
z Flow Control: Choose Enable or Disable to enable or
disable the flow control of the ports.
z Transmit / Receive: Choose On or Off to turn on or off
transmit / receive of the ports.
z Apply: Click the Apply button and apply the new
settings of the ports.
