INSTALLATION31
Installation
General
e
carried out by a registered electrotechnical
.
engineer.
Electrical connection 3 1N ac 400V/50Hz.
.
The electrical connection must comply
with national and local regulations.
Perilex Wall socket and plug must be
accessible at all time.
This appliance must be connected on a
3-phase mains. See Figure 8.
The voltage between the live-wire and
the neutral wire is 230V.
The voltage between live-wires is 400V.
The appliance should always be earthed. Use
good quality cable for connecting e.g. H05RRF,
1,5 mm², with 5 cores.
The cable must have a plug suitable for a
nominal load of at least 15 A.
e
that a multi-pole switch with a distance
between contacts of 3 mm is installed in the
supply cable.

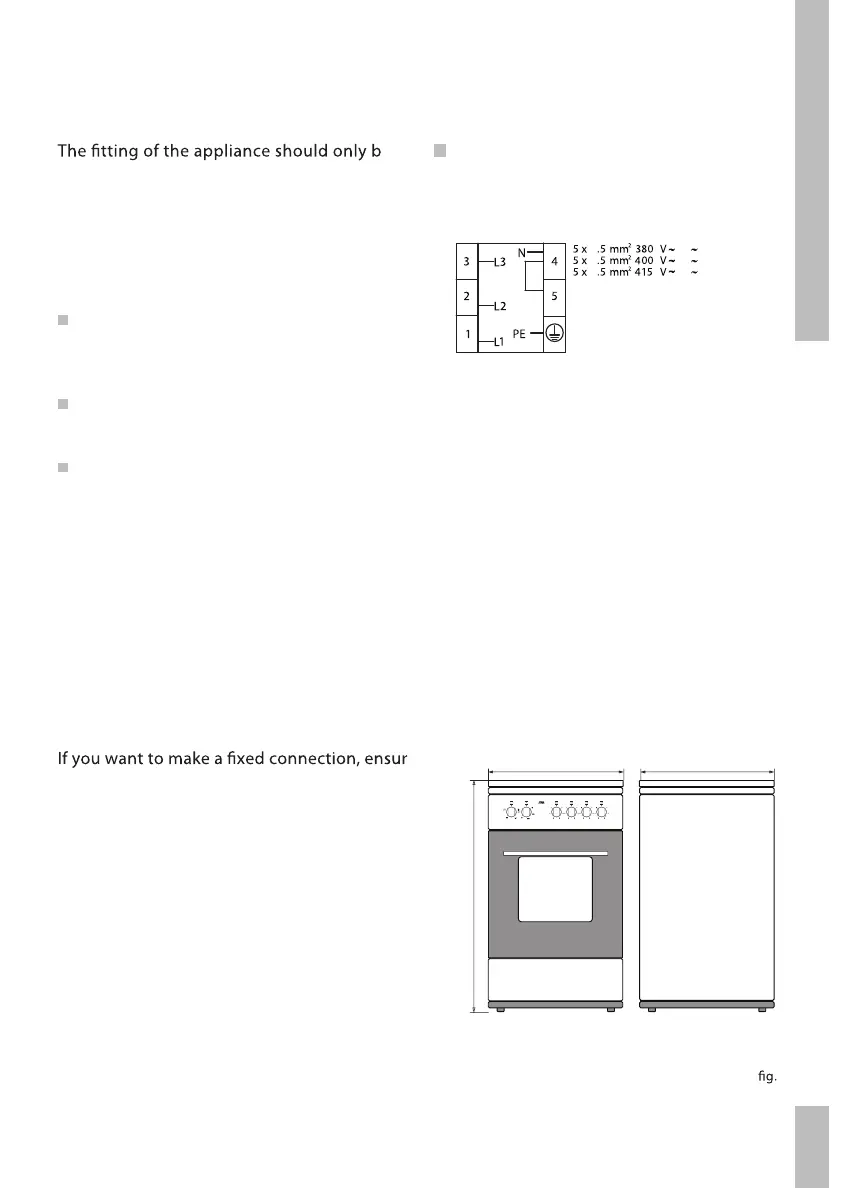

Wiring diagrams
There is a label showing the wiring
diagrams on the underside of the appliance
(Fig. 8).
Fig. 8
Built-in dimensions
850
500
600
9
front view side view
,3N
,3N
,3N
