Assembly Instructions | 27

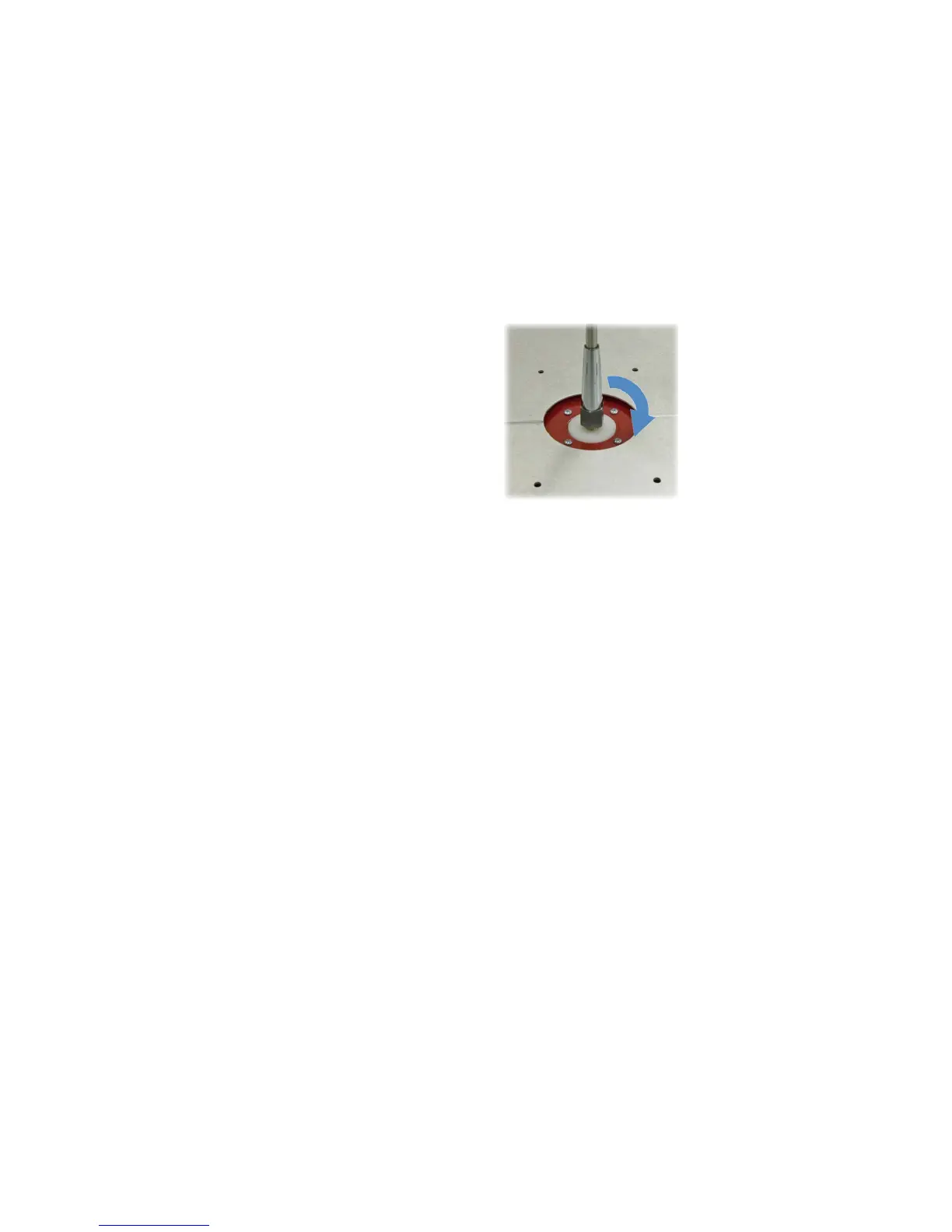

8. Insert the monopole through the
hole in the counterpoise and into
the antenna base. Rotate the
monopole to tighten.
9. Connect the output of the unit to a 50-ohm receiver, spectrum analyzer, or
RF voltmeter.
10. Press the power switch to the left to turn on power to the Model 3301C. The
power LED displays green when the unit is on. For complete information on the
front panel controls and indicators, see Operation on page 35.
