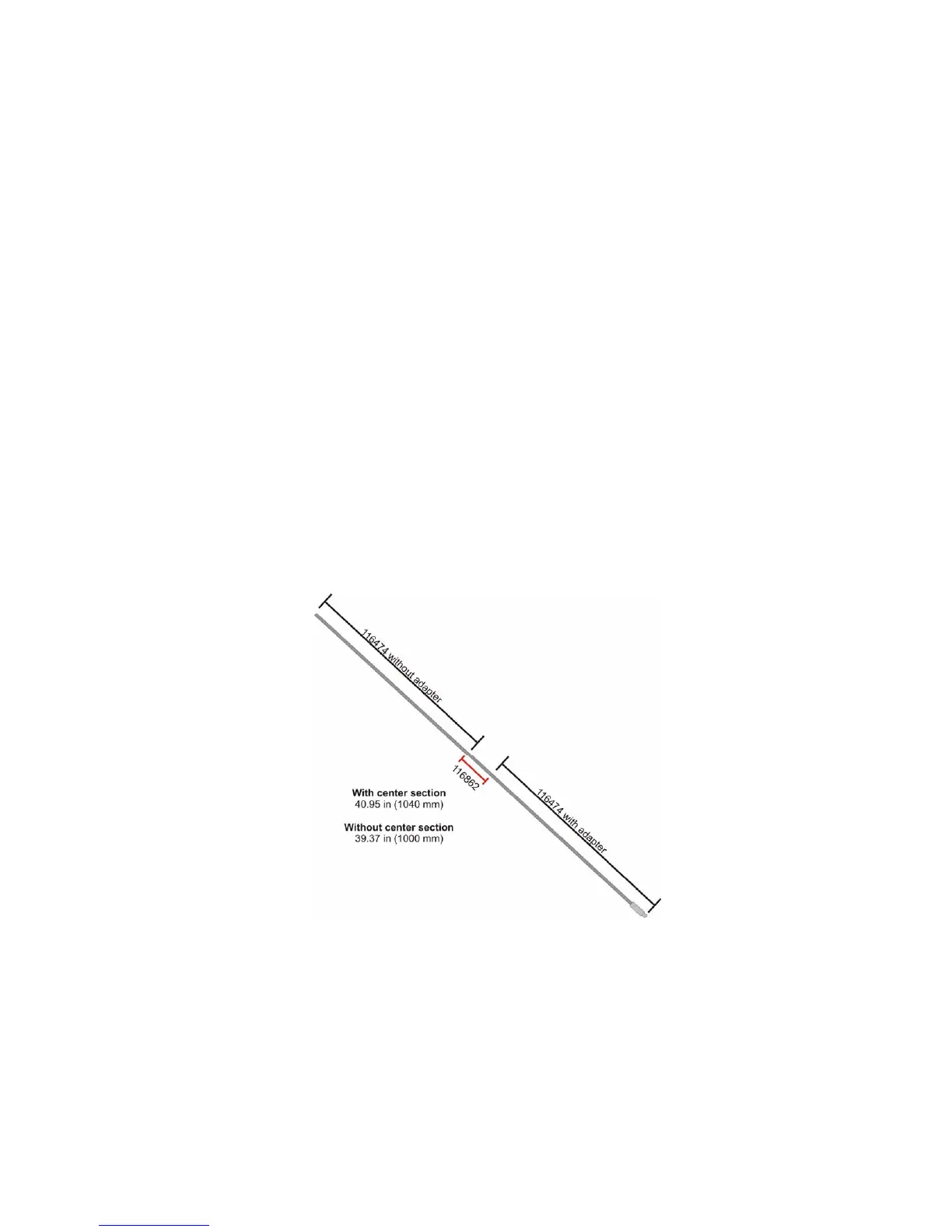

MONOPOLE ELEMENT
The monopole element includes these parts for assembly:
(1) 116474 Rod section without antenna adapter
(1) 116474 Rod section with antenna adapter
(1) 116862 Center section
The monopole may be assembled as follows:
For a finished length of 40.95 in (1040 mm)—Assemble all parts,
including the 116862 center section.
For a finished length of 39.37 in (1000 mm)—Assemble all parts
except for the 116862 center section.
See page 26 for the steps to assemble the monopole.
