32 | Mounting Instructions

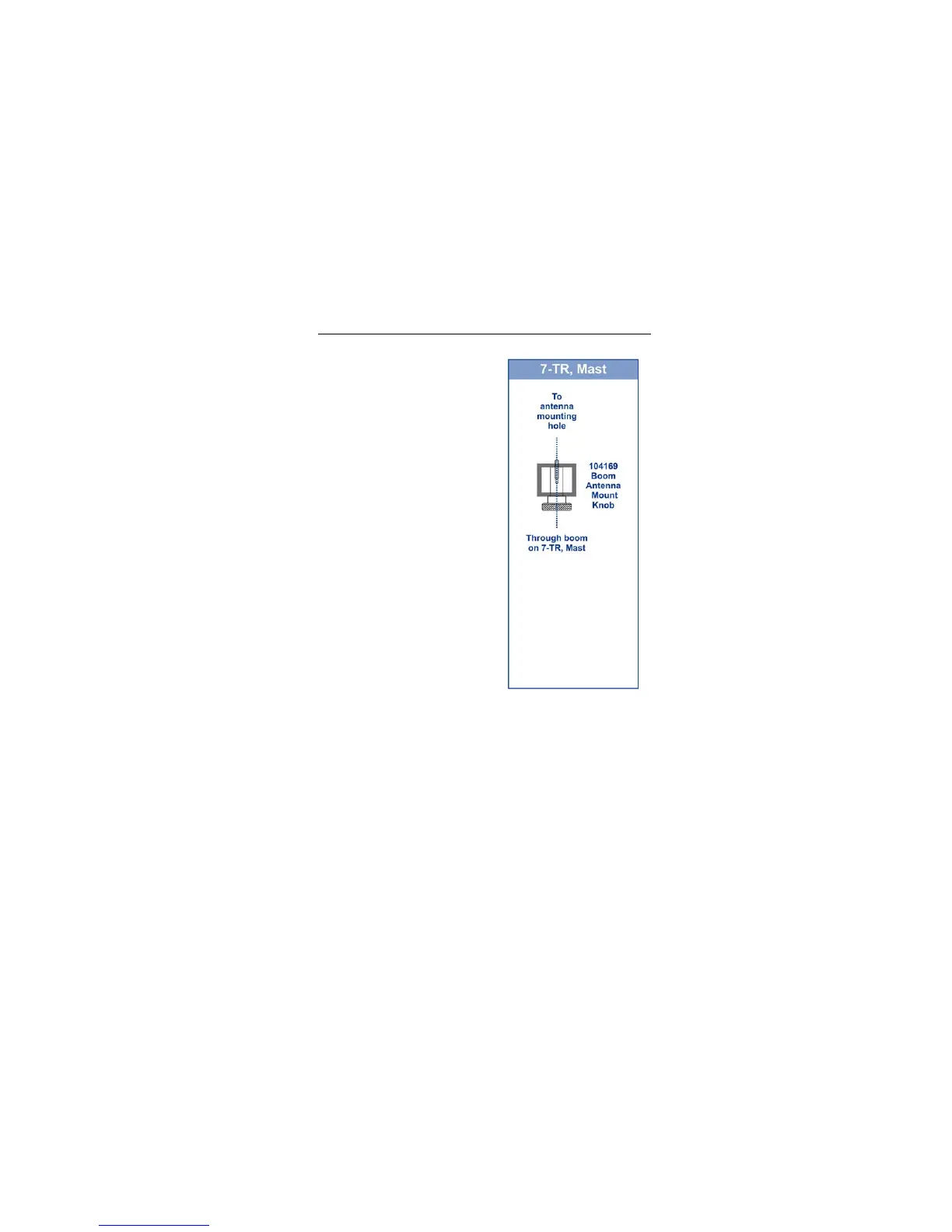

7-TR and Mast Mounting Options
Following are options for mounting
the Model 3301C onto an
ETS-Lindgren 7-TR Tripod or mast.
Contact the ETS-Lindgren Sales
Department for information on
ordering optional mounting hardware.
Mast refers to 2070 Series, 2075,
and 2175 Antenna Towers.
7-TR refers to 109042, 108983, and
108507 booms:
109042 boom—Straight boom; for
general antenna mounting on a
7-TR
108983 boom—Offset boom; for
general antenna mounting on a
7-TR with pneumatic or manual
polarization; can also be used to
mount stinger-type antennas
108507 boom—For Model 3106
Series antennas only; when
changing polarization, maintains
centerline rotation
