Manual EKS Electronic-Key Adapter USB
Page 10/34 Subject to technical modifications 2094485-05-07/19
4 Technical data

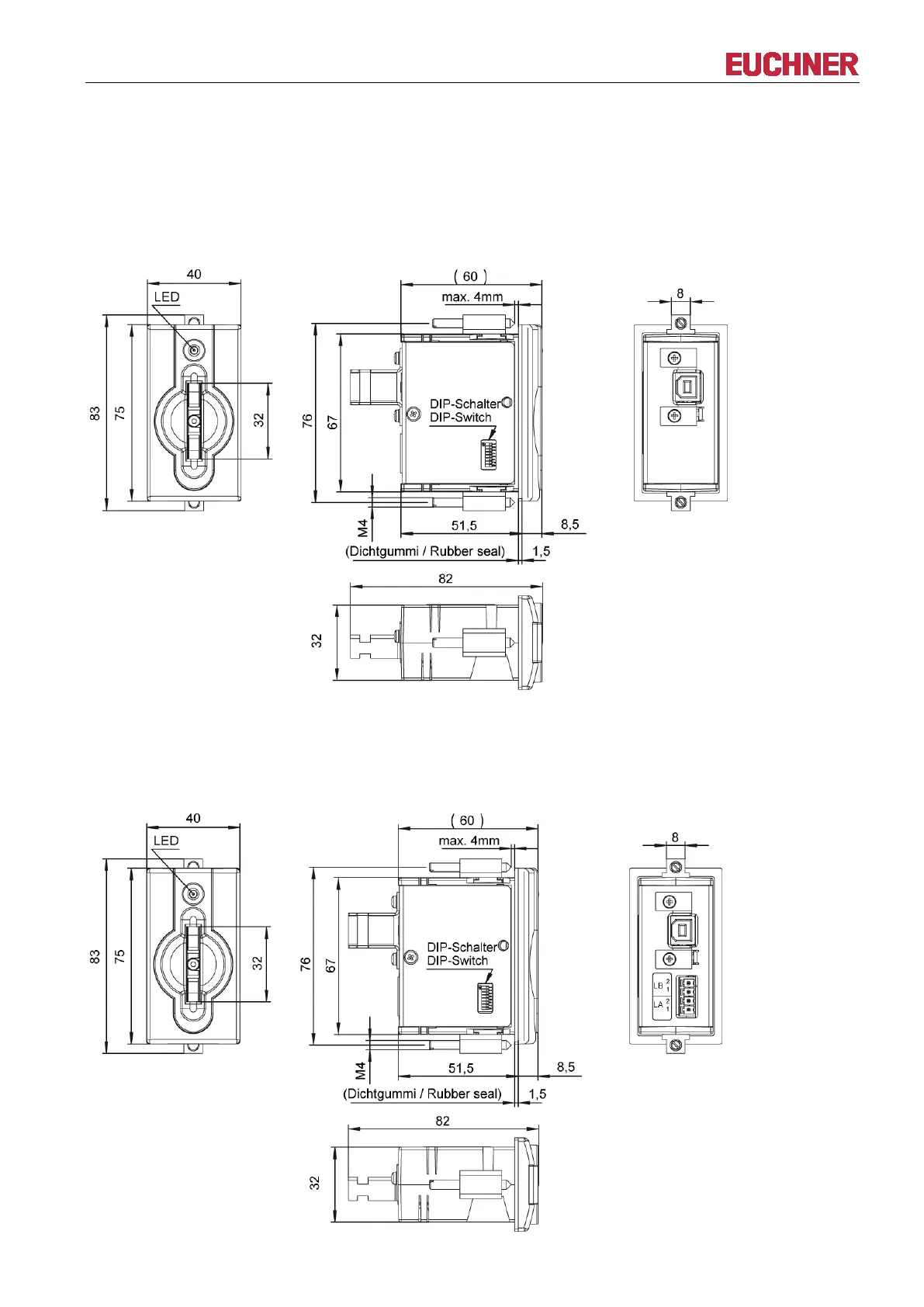

4.1 Dimension drawing of Electronic-Key adapter
4.1.1 Design in G01 housing EKS-A-IUX-G01-ST01 with USB interface
For installation in a control panel, you must provide a cut-out measuring 33 mm x 68 mm according to
DIN IEC 61554.
4.1.2 Design in G01 housing EKS-A-IUXA-G01-ST01/04 (EKS FSA)
with USB interface
