MOUNTING THE BRACKET
STEP 5
8
Mount the Doorbell on a Wooden Surface
If you’re mounting the doorbell on a wooden surface, you don’t need to pre-
drill pilot holes. Use the provided screws to secure the mounting bracket on
the wall, the screw hole positioning card indicates the position of the screw
holes.

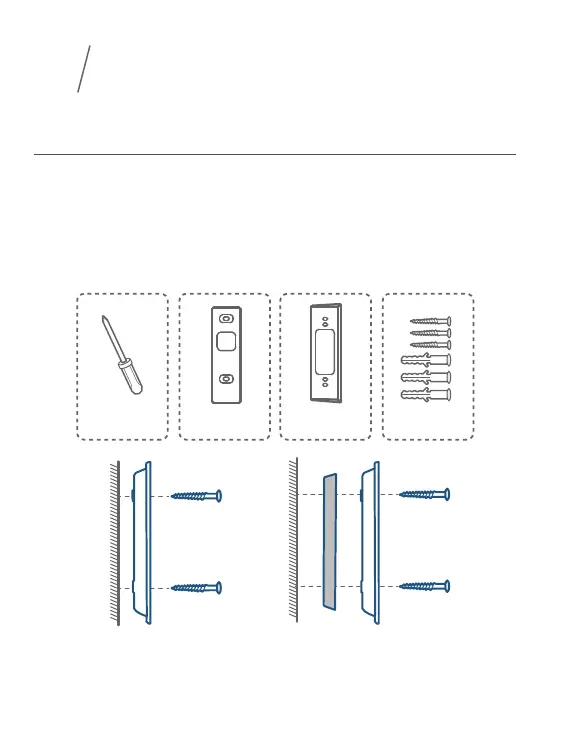

What you need: Screwdriver, Mounting Bracket, 15° Mounting Wedge
(Optional), Screw Packs
Phillips-Head Screwdriver
(not provided)
Wall
Wall
Mounting
Bracket
Mounting
Wedge
Mounting
Bracket
Mounting Bracket
(Attached to 15° Mounting
Wedge)
15° Mounting
Wedge (Optional)
Screw Packs (Spare screws
and anchors are included.)
Without 15° Mounting Wedge
With 15° Mounting Wedge
