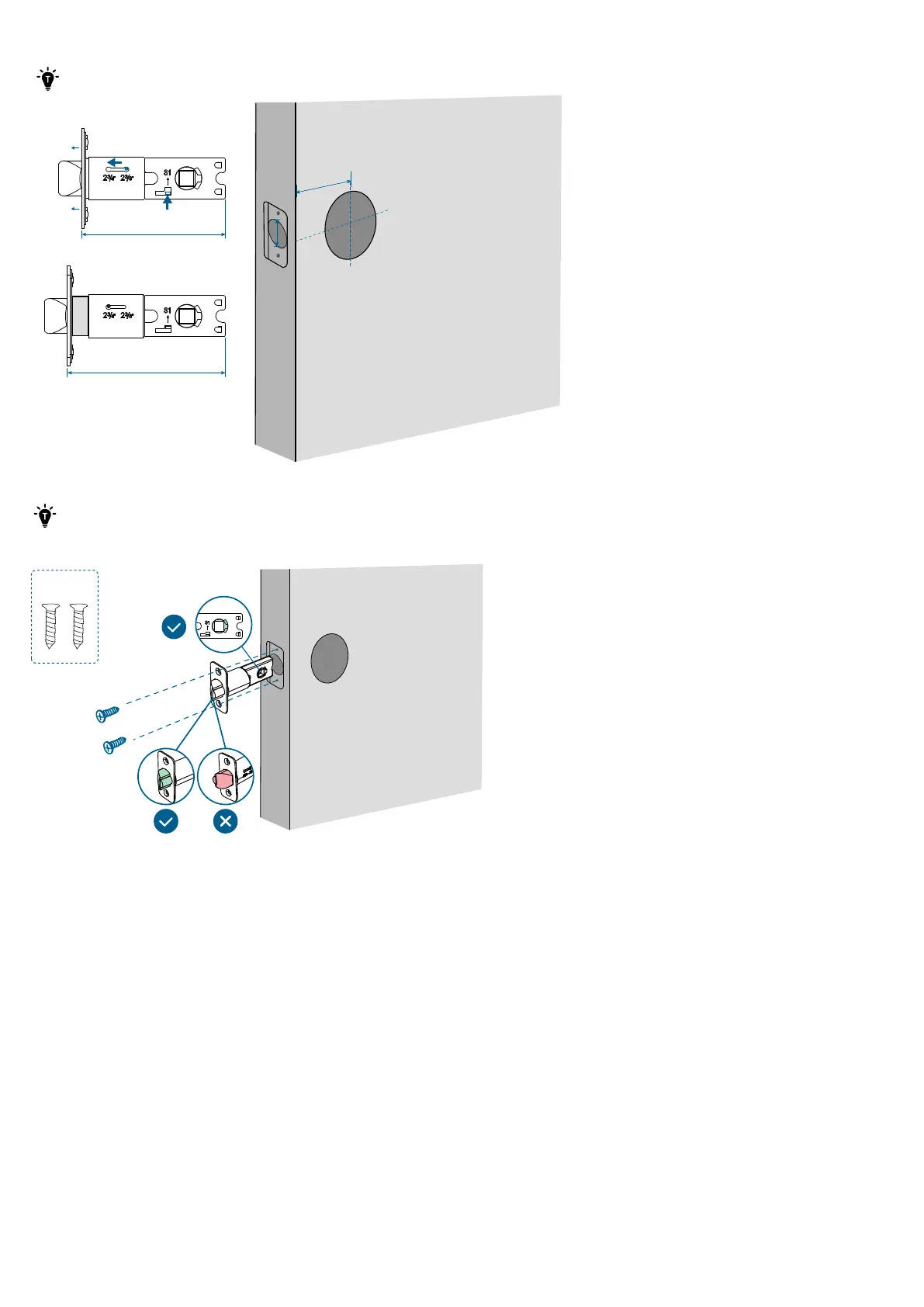

If the backset is 2¾ in (70 mm), you will need to extend the latch. Push the S1 tab upward and hold it (1), press down the
knob (2), slide the knob toward the 2¾ position, and pull out the faceplate (3).
Make sure that the S1 tab is ALWAYS upward when extending the latch.
2 ⅜ in (60 mm)
2 ¾ in (70 mm)
2 ¾ in (70 mm)
❷❸
❶
2. Slide and screw the latch into the door.
·
Make sure that the spindle hole is squarely straight to the ground.
·
The latch bevel must first contact the strike plate when the door is closing.
B
Outside
