Euphonix FC726 Format Converter Users Manual Introduction and Interface
15
1.3 Rear Panel
The FC726’s rear panel is shown in Figure 1-4. Enlarged sections of the rear panel
are shown in Figure 1-5 and Figure 1-6; the numbers in the figures correspond to the
numbered items below describing that feature.

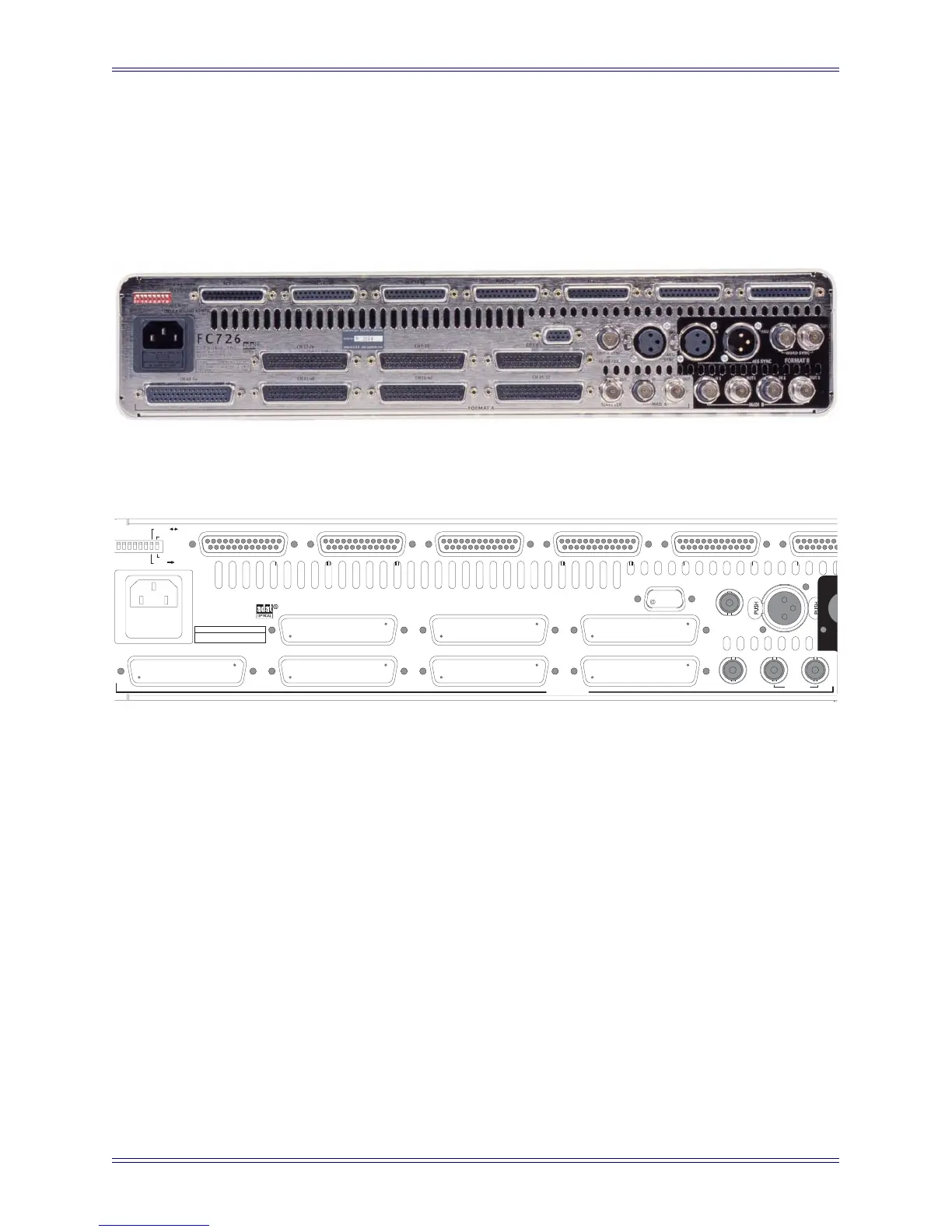

Figure 1-4 FC726 rear panel
Figure 1-5 FC726 rear panel (left)
1. AC Power Input
Connect the power cable shipped with the FC726 to its AC input and an AC mains
power source.
2. Format A Common DB-50 Connectors
Seven common DB-50 connectors connect third-party devices to the FC726.
Each connector provides eight bidirectional audio channels. You must use the
appropriate adapters for each format to connect the third-party devices. See For-
mat A Adapters on page 11.
FC726
EUPHONIX, INC.
PALO ALTO
MADE IN THE U.S.A.
AES 49-56 AES 41-48 AES 33-40 AES 25-32 AES 17-24 AES
9
SERVICE
IN
IN
AES
SYNC
MADI A
IN
CH 49-56 CH 41-48 CH 33-40 CH 25-32
CH 17-24 CH 9-16 CH 1-8
SDIF-2 SYNC
or
SLAVE CLK
OUT
FORMAT A
OUT
VAC FUSE
100-240 1.0-0.5A 2.5A
50/60Hz SLOW
CURRENT
FMT A FMT B
AES STEREO
AES MONO
FMT A AES/FMT B/FMT A
SLAVE CLK
1
2 222
222
333333
4
5
6
8
9
7
