Euphonix FC726 Format Converter Users Manual
27
Appendix A: Pinout and Cable Specifications
This appendix provides detailed information about the FC726’s connectors for those
who wish to create or repair their own cables. Contact Euphonix for a list of the adapters
and cables available for third-party devices.
NOTE: The ADAT requires an adapter that contains active electronics with a DB-50
connector on one end and an ADAT optical connector on the other. This adapter
cannot be constructed using the information presented in this appendix; contact
Euphonix for this adapter.
A.1 AES/EBU DB-25
Figure A-1 shows the cable diagram. Table A-1 shows the pinout for the FC726’s
AES/EBU DB-25 connector.

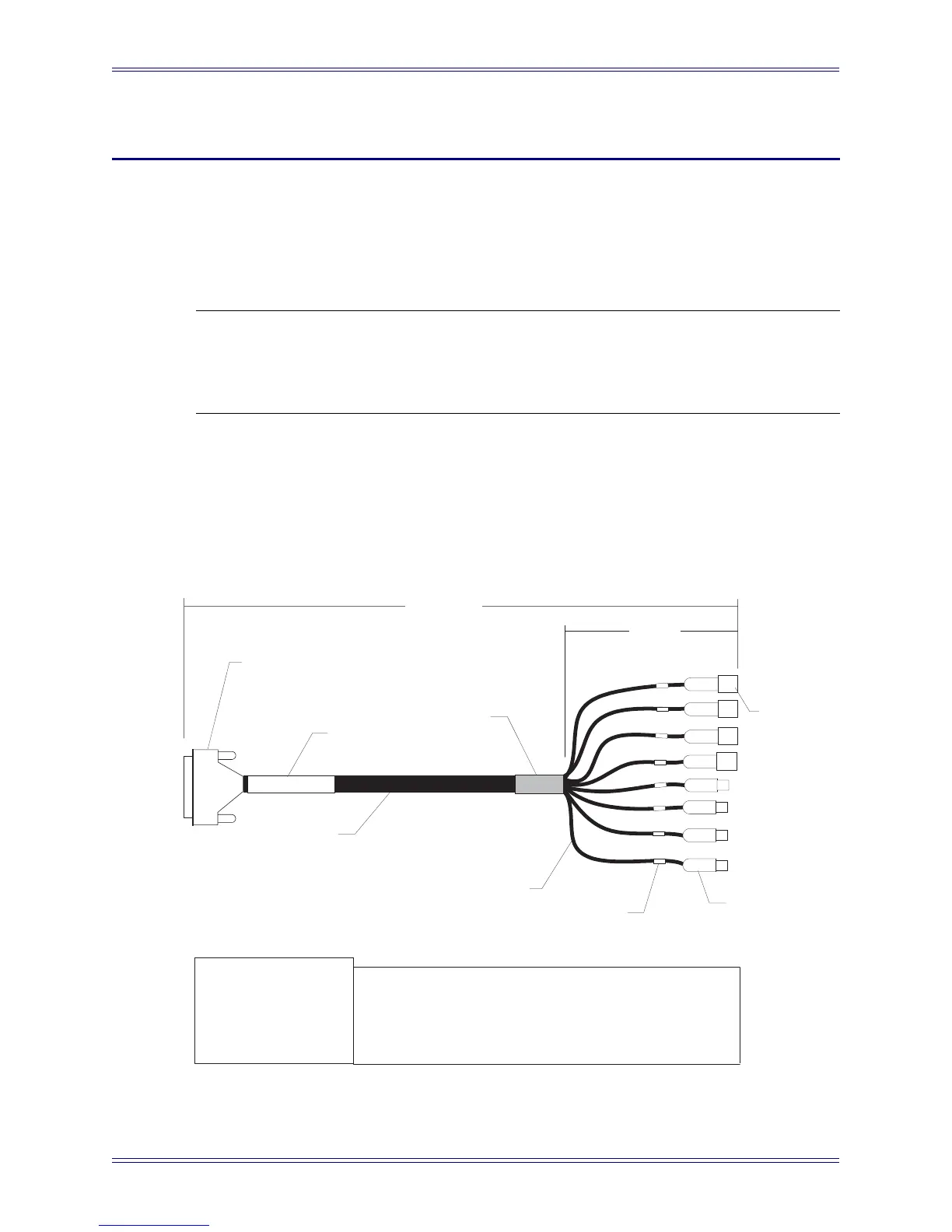

Figure A-1 AES DB-25 breakout cable assembly diagram
PARTS LIST
Item Qty Euph P/N Mfr Mfr P/N Description
1 1 AMP HD-20 series DB25-M D-sub & shell
2 1 meter Mogami 3162 AES/EBU snake cable
Alternate: Belden 1805A AES/EBU snake cable
3 4 Neutrik NC3MX 3 p XLR M
4 4 Neutrik NC3FX 3 p XLR F
5 2 inch .75 OD shrink tubing
ITEM 5
Shrink tubing
ITEM 2
AES/EBU Snake
cable with 8
cores
Typical: 110 Ohm AES core, each
core individually shielded.
NOTE Tie each shield to pin 1 of
each destination XLR connector
ITEM 1
Db25 male
connector and metal
backshell assy with
thumbscrews or
jackscrews.
J1
J2
J3
J4
J8
J7
J6
J5
ITEM 3
3-pin XLR
male connector
(4 places)
ITEM 4
3-pin XLR
Female (4 Places)
DB25
M
Approx. 1 meter
(38-40 inches)
AES/EBU
P/N 030-07658-01 REV B
Label cable with Euphonix
part number and Rev
letter as shown
Each XLR pigtail
destination label
(See Table 1 for
Nomenclature)
10 inches
each pigtail
TABLE 1 Cable Label Details
Conn. Label
DB25-M AES/EBU 030-07658-01 Rev
XLR-J1 1&2OUT
XLR-J2 3&4OUT
XLR-J3 5&6OUT
XLR-J4 7&8OUT
XLR-J5 1&2IN
XLR-J6 3&4IN
XLR-J7 5&6IN
XLR-J8 7&8IN
