Euphonix FC726 Format Converter Users Manual Pinout and Cable Specifications
30
A.2.1 TDIF
Figure A-2 shows the cable diagram. Table A-3 shows the pinout for the FC726’s TDIF
connector.

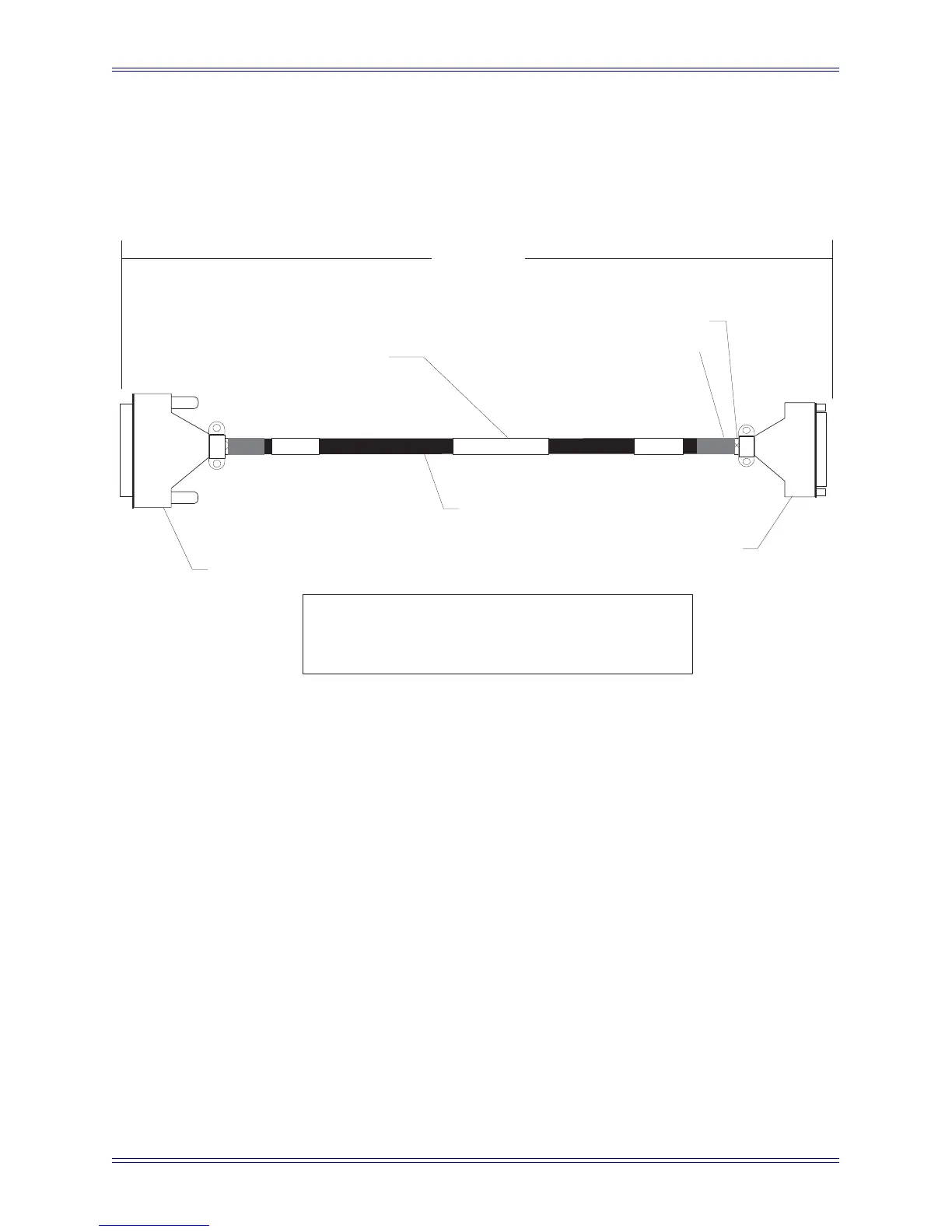

Figure A-2 DB-50-to-DB-25 TDIF cable assembly diagram
PARTS LIST
Item Qty Mfr Mfr P/N Description
1 1 AMP HDP-20 series DB50-M
2 1 AMP HDP-20 series DB25-M
3 40 inches Madison
Approx. 1 meter
(38 to 40 inches)
P/N 030-07657-01 Rev C
ITEM 1
DB-50 male metal backshell assembly
including thumb- or jack-screws
ITEM 2
DB-25 male with
metal backshell assembly
Cable labels
(typical)
J1
TDIF
ITEM 3
SCSI cable, braided shield, low capacitance,
25 twisted pairs. Braided shields on both ends
clamped to metal backshells.
All conductors are not required.
Cut off unused wires at both ends.
Portion of braided shield pulled
back over cable insulation to
contact the cable clamp.
Heat shrink tubing to cover and
contain the exposed braid tails
TDIF
CH 1-8
J2
50SDK00130 (or equiv) SCSI cable, 25 pairs
