EuroLite DMX OPERATOR User Manual

00026741.DOC, Version 2.3
15/36
4. DESCRIPTION
4.1 Features
Compact DMX-controller
192 control channel for 12 projectors with up to 16 channels • 6 chasers with up to 240 scenes can be
programmed • 8 Preset Scenes • Copy-function for the scenes, programs and records • Blackout-function •
Sound control via built-in microphone • 19" mounting dimensions with 3 units
4.2 Overview

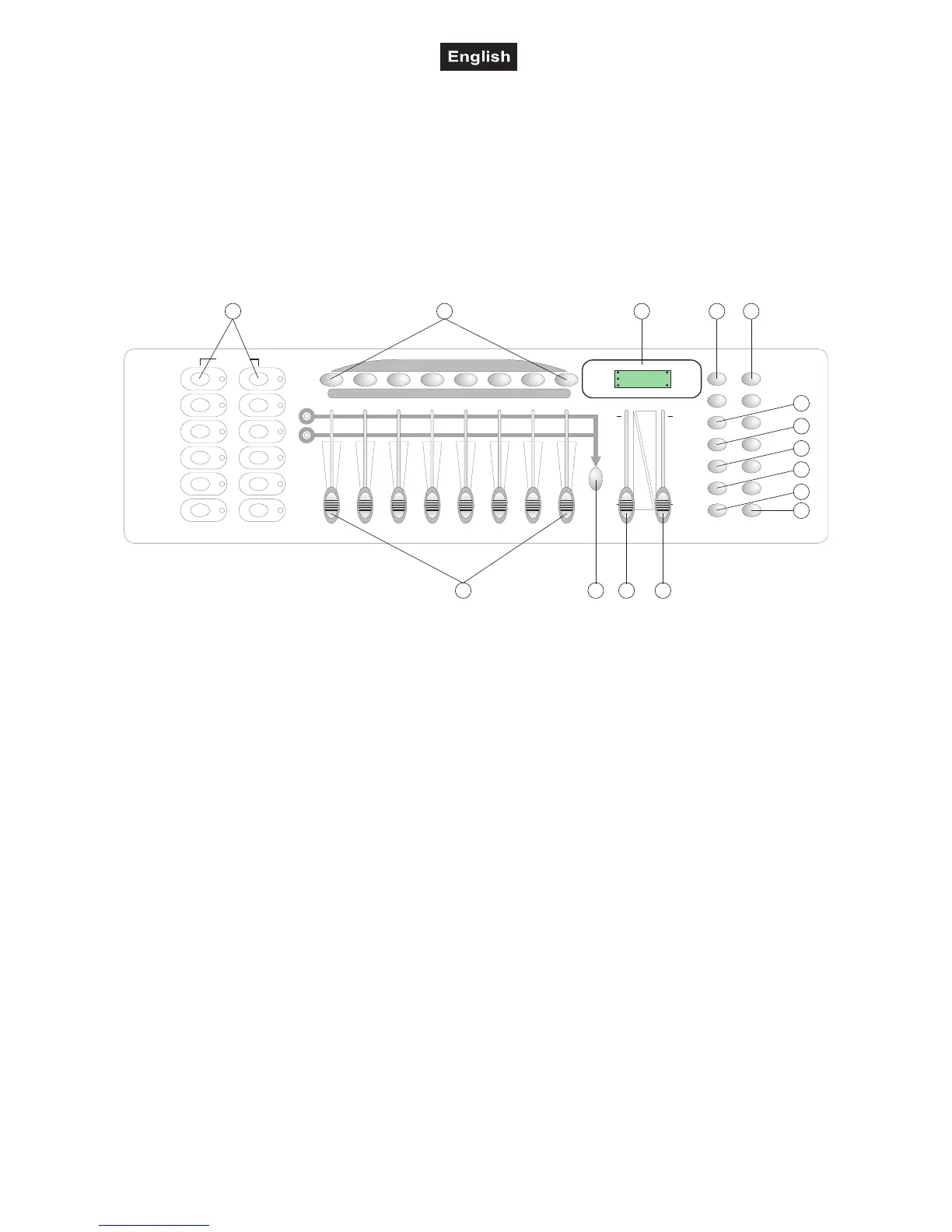

Overview on the control elements
BANK
CHASE1
CHASE2
CHASE3
CHASE4
CHASE5
CHASE6
BLACKOUT
PROGRAM
MIDI/ADD
AUTO/DEL
MUSIC
BANK-
COPY
T
APSYNC
DISPLAY
Blackout
Step
Programm
Musictrigger
Autotrigger
1
2
3
4
5
6
7
8
9
10
11
12
SCANNERS
SCENES
1
2
34
56
7
8
1
9
2
10
3
11
4
12
56
7
8
13 14
15 16
PAGEA
PAGEB
DMXOPERATOR
0,1sec
30sec
10MIN
0
euro
lite
e
u
r
o
l
i
t
e
®
8888
1 2 3
4 5 6 7
8 9
11
12
13
14
10
15
1) PROJECTOR SELECT BUTTONS
With the Projector select buttons you can choose the desired projector.
2) SCENE-BUTTONS
3) DISPLAY
4) CHANNEL FADERS
For adjusting the different DMX-values. The channels 1-8 can be adjusted directly after pressing the
respective projector select button. The channels 9-16 can be adjusted after pressing the Page-button.
5) PAGE-BUTTON
In the manual mode, you can switch the channel faders from CH 1-8 to CH 9-16 by pressing the Page-
button.
6) SPEED-FADER
7) FADE TIME-FADER
8) BANK-BUTTONS
9) CHASE-BUTTONS
10) PROGRAM-BUTTON
11) MIDI/ADD-BUTTON
12) AUTO/DEL-BUTTON
13) MUSIC/BANK-COPY-BUTTON
If this LED is on, the controller is in Audio-mode (operation with sound-control).
14) TAPSYNC DISPLAY-BUTTON
15) BLACKOUT-BUTTON
The Blackout-function closes the light output of all connected projectors via the shutter.
