EuroLite LED IP PAR-64 COB User Manual

00135564, Version 1.0
23/28

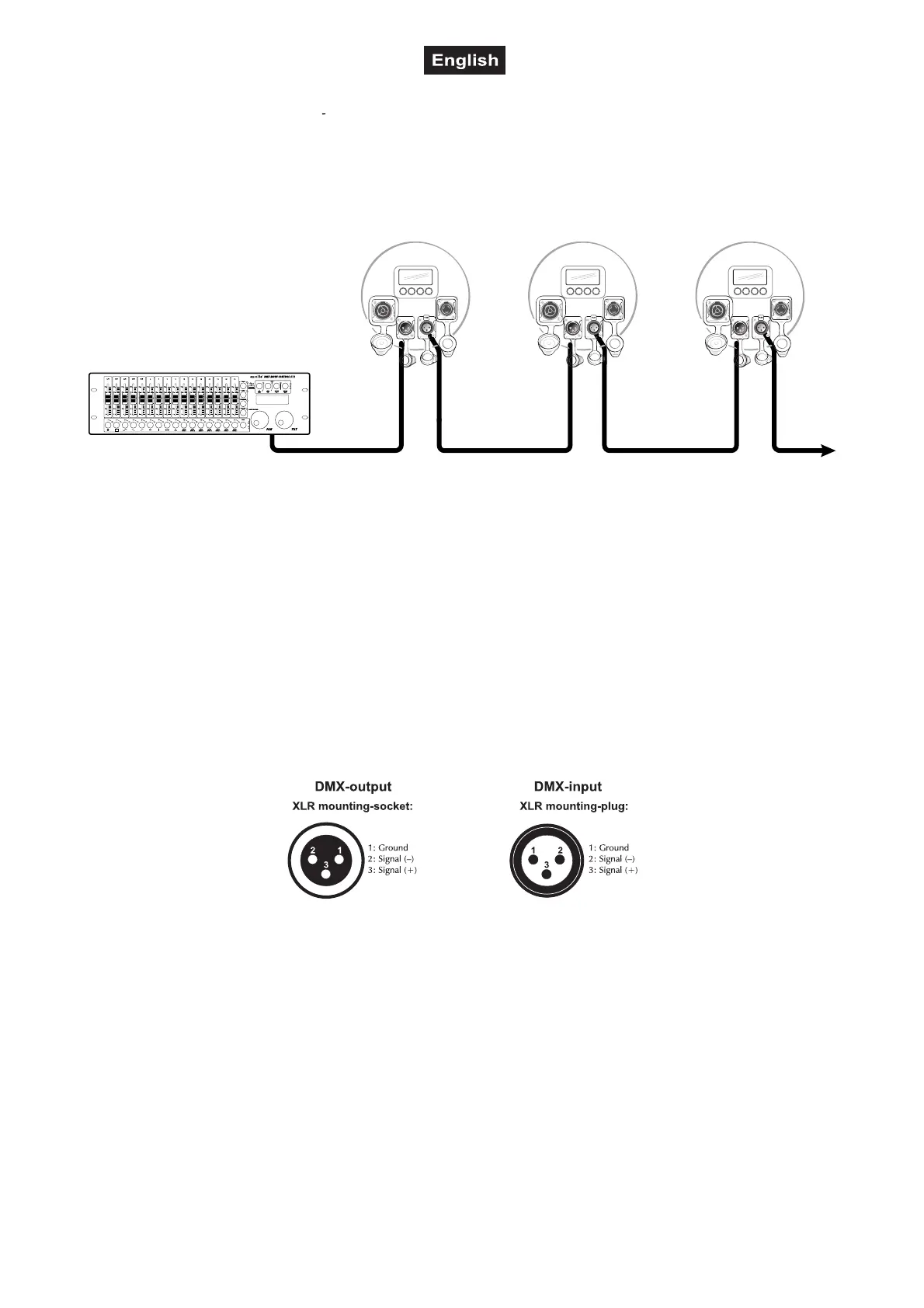

DMX512 CONNECTION
A DMX512 data link is required in order to control the device via DMX. The device provides 3-pin XLR connectors
for DMX connection.
1 Connect the output of your DMX controller to the DMX input DMX IN of the device with a DMX cable.
2 Connect the DMX output DMX OUT of the device to the DMX input of the next unit in the chain. Always connect
one output to the input of the next unit until all units are connected.
3 At the last unit, the DMX cable has to be terminated. Plug the terminator with a 120 Ω resistor between Signal
(–) and Signal (+) in the DMX output of the last unit.
4 If the cable length exceeds 300 m or the number of DMX devices is greater than 32, it is recommended to
insert a DMX level amplifier to ensure proper data transmission.
XLR connection:
Device 1
Starting Address 1
Device 2
Starting Address 5
Device 3
Starting Address 9
DMX Controller
Program
Chase32 Step100

EuroLite LED IP PAR-64 COB Specifications

General

Light Source	COB LED
IP Rating	IP65
LED Quantity	1
Housing Material	Aluminum
Dimming	0-100%
Voltage	100-240 V AC, 50/60 Hz
Control	DMX, standalone, master/slave
Type	PAR Can
Color	RGB
DMX Channels	4/6
