EuroLite LED IP PAR-64 COB User Manual

00135564, Version 1.0
24/28
POWER SUPPLY
The device uses an auto-range power supply that accepts input voltages between 100 und 240 volts.
1 Connect the device via the mains cable to a grounded mains socket. Thus the unit is switched on.
2 To switch off the unit, disconnect the power plug.
3 Do not connect the unit to the mains voltage via a dimmer. For a more convenient operation, use a mains outlet
which is switchable.

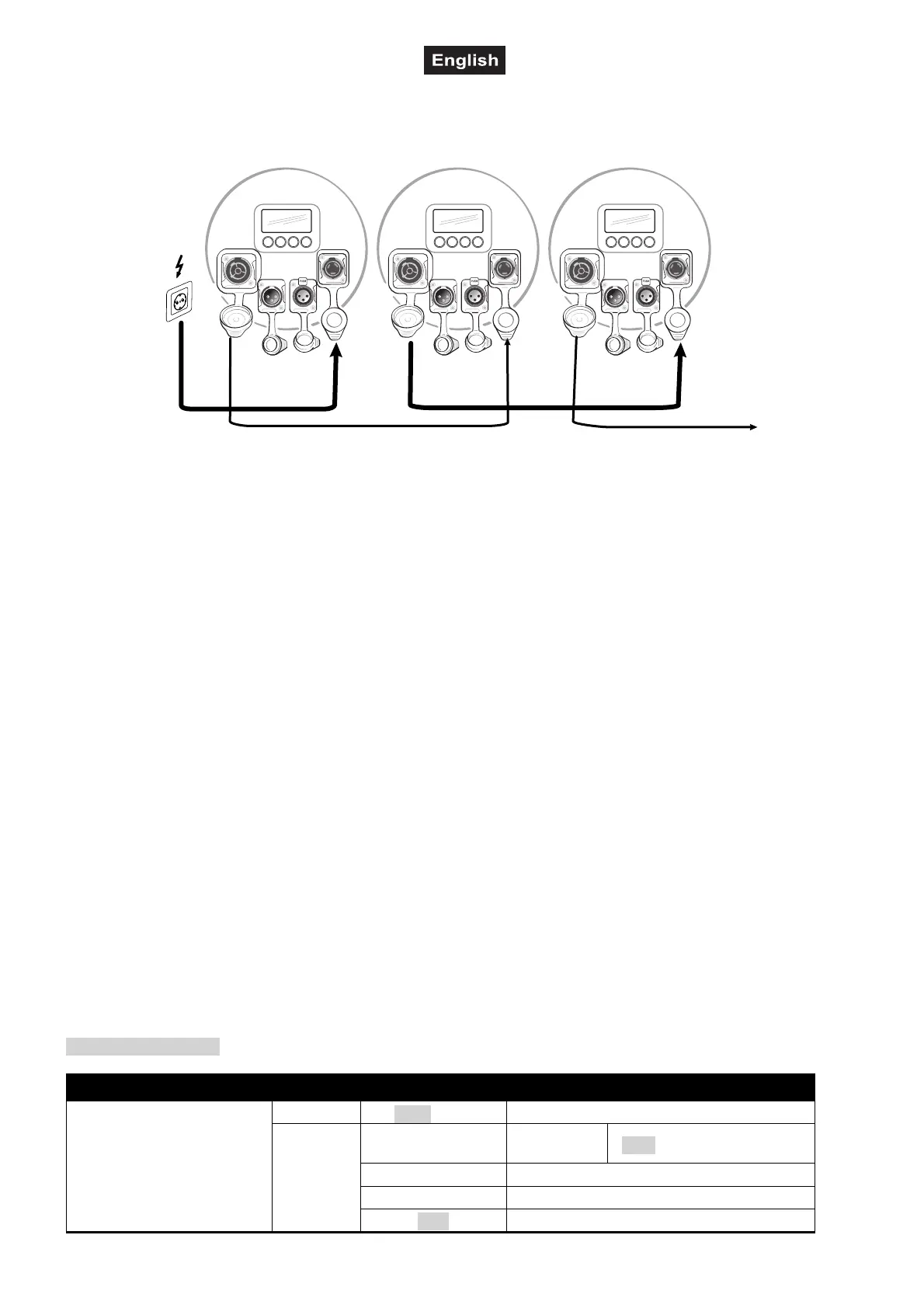

4 The jack POWER OUT allows for power supply of further devices. To interconnect several devices, connect the
jack POWER OUT to the input POWER IN of the next unit until all units are connected. Matching power cables
are available as accessories. In this manner, up to 8 devices can be linked at 230/240 input voltage and up to 4
devices at 110/115 input voltage.
5 Please make sure that open contacts are closed with caps in order to avoid humidity and dirt in the device.
OPERATION
The built-in control panel of the unit features four operating buttons and a display which shows all operation
statuses. After connecting the unit to the mains it requires a short initialization process of about 15 seconds and is
then ready for operation. The display shortly indicates rSEt (Zoom reset). All settings remain stored even if the
device is disconnected from the mains. The device can be operated in stand-alone mode via the control board or in
DMX-controlled mode via any commercial DMX controller.
Menu structure
Press the MENU button so many times until the desired function is indicated on the display. Use the ENTER button
to select the function. With the buttons UP and DOWN you can select the mode or set values. Confirm with
ENTER. If you do not do so, the device goes back to the main functions after 20 seconds without saving your
settings. If you wish to go back to the main functions without saving your settings, press MENU.
Default shown in grey.
Mode
Display Function
DMX operation
Addr
A001-A512
Starting address
Chnd
1CH
1-channel
mode
z000-z255 Zoom 0-100%
2CH
2-channel mode
3CH
3-channel mode
4CH
4-channel mode

EuroLite LED IP PAR-64 COB Specifications

General

Light Source	COB LED
IP Rating	IP65
LED Quantity	1
Housing Material	Aluminum
Dimming	0-100%
Voltage	100-240 V AC, 50/60 Hz
Control	DMX, standalone, master/slave
Type	PAR Can
Color	RGB
DMX Channels	4/6
