DESCRIPTION OF THE DEVICE
Features
Scanner for MSD-lamp
DMX-controlled operation or stand alone operation with Master/Slave-function • For bright MSD discharge
lamp • Colour-wheel with 7 dichroic colour-filtres and white • Gobo-wheel with 7 rotating gobos and open •
Manual focus • Strobe-effect with adjustable speed (1-7 flashes/sec.) • DMX-control via every standard DMX-
controller • 6 DMX-control-channels required • Sound-controlled via built-in microphone • 6 high-quality
stepping-motors • Suitable EUROLITE controllers: DMX Operator

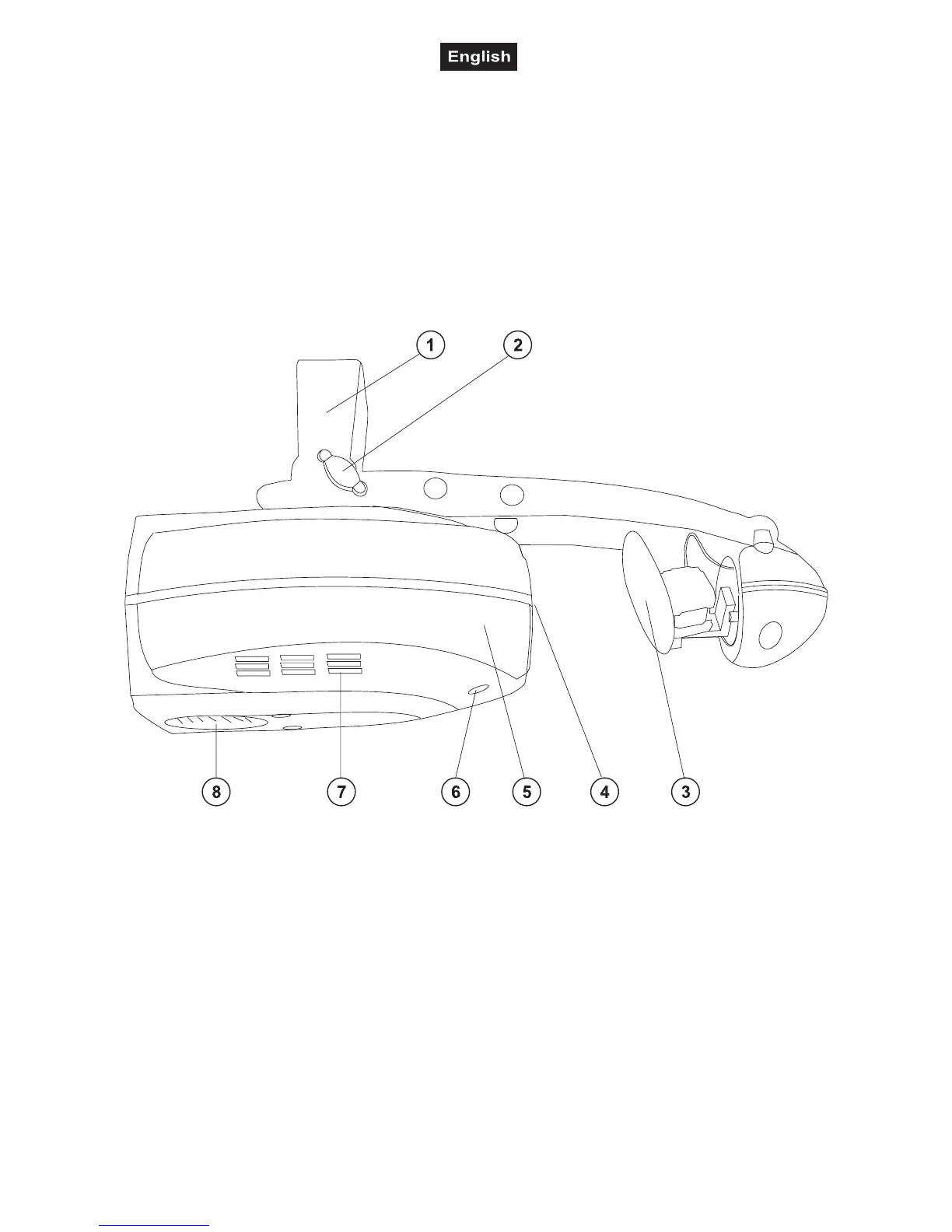

Overview
(1) Mounting bracket
(2) Fixation screw
(3) Mirror
(4) Objective-lens/Focus
(5) Housing cover
(6) Housing screws
(7) Venting slots
(8) Ventilation fan
