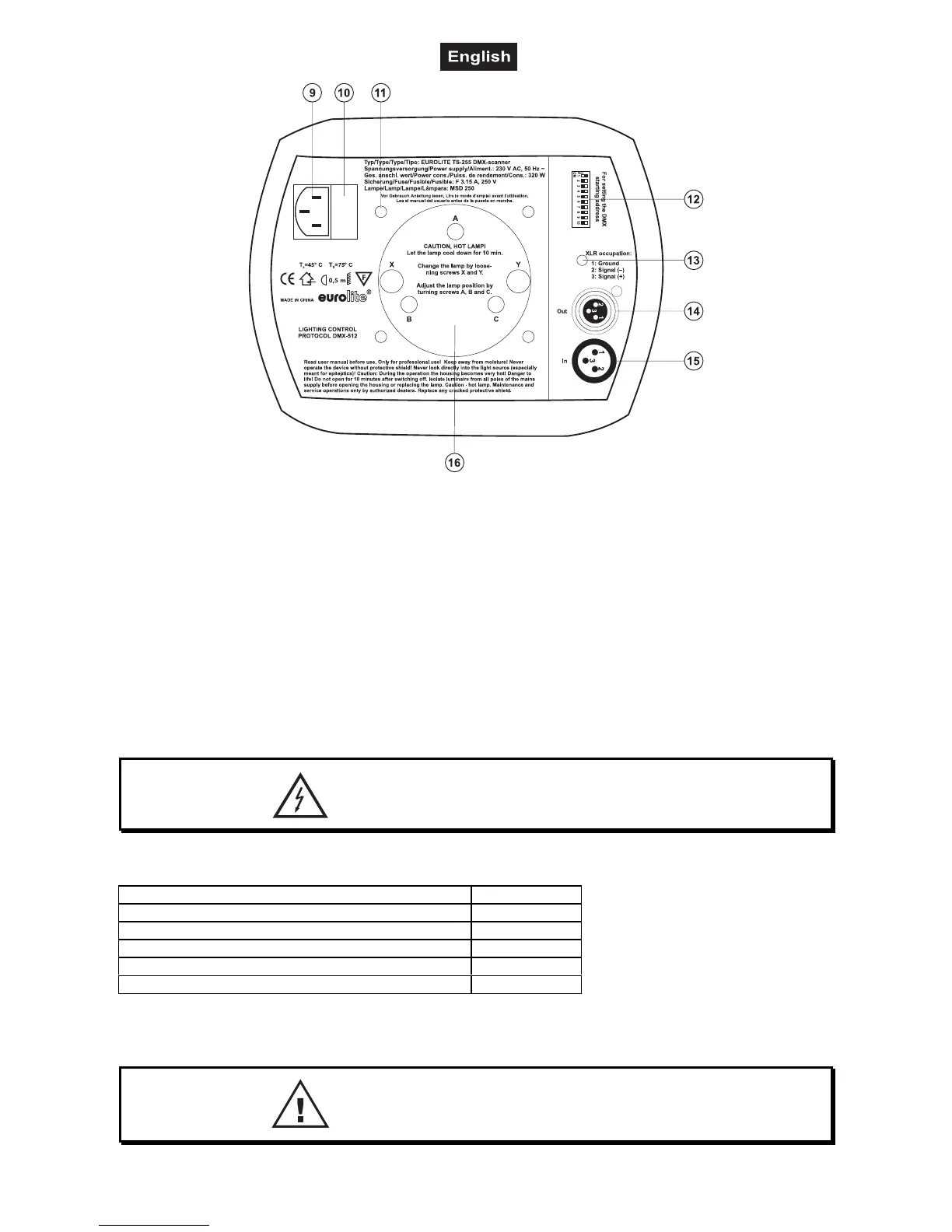

(9) Power supply
(10) Fuseholder
(11) Housing screws
(12) DIP-switches
(13) Control LED
(14) DMX-Out socket
(15) DMX-In socket
(16) Lamp system
INSTALLATION
Installing/Replacing the lamp
DANGER TO LIFE!
Only install the lamp with the device switched off!
Unplug from mains before!
For the installation, you need one of the following lamps:
OMNILUX OSD 90V/250W GX-9,5 2000h 6700K No. 89106005
OSRAM HSD250 90V/250W GY-9,5 2000h No. 89106010
PHILIPS MSD250 90V/250W GY-9,5 2000h No. 89106015
OSRAM HSD250/2 90V/250W GY9,5 3000h 7800K No. 89106110
PHILIPS MSD250/2 90V/250W GY-9,5 2000h No. 89106115
SYLVANIA BA250/2 SE D 90V/250W GY-9,5 No. 89106120
The lamp must only be changed when wearing appropriate protective clothing (protection glasses, protection
gloves, helmet with sight, leather apron).
The lamp has to be replaced when it is damaged
or deformed due to the heat!
