12
ATC-E, ATC-ES, ATWB, eco-ATWB and eco-ATWB-E Evaporative Condensers and Closed Circuit Coolers

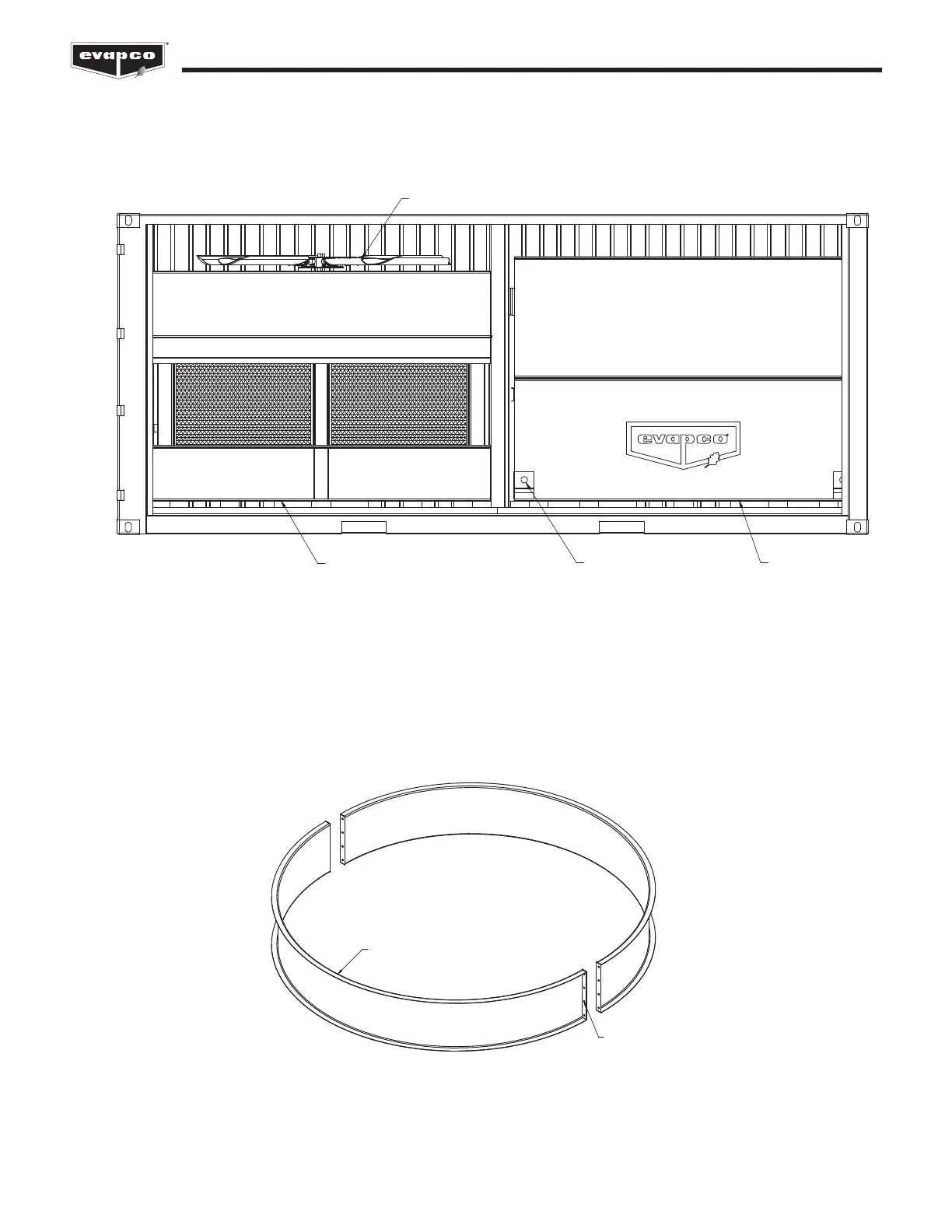

Figure 12 shows a 7’ x 9’ unit shipping in a 20’ standard height container. 20’ containers are not available in high cube
configuration, therefore requiring the fan cylinders to ship loose in the basin for assembly in the field.
Figure 12 - 20’ Standard Height Container Shipment
Figure 13 - Split Fan Cylinder for Standard Height Container Shipment
CYLINDER ASSEMBLY
(CUT IN HALF)
ATTACH TOGETHER USING
5/16Ø HARDWARE
Instructions to put together fan cylinder:
1. Line up match-markings on the fan deck to ensure proper alignment.
2. Make sure fan assembly is centered within cylinder before attaching to fan section.
LIFTING EARS
CASING SECTION
F
AN SECTION
BASIN SECTION
