13
ATC-E, ATC-ES, ATWB, eco-ATWB and eco-ATWB-E Evaporative Condensers and Closed Circuit Coolers

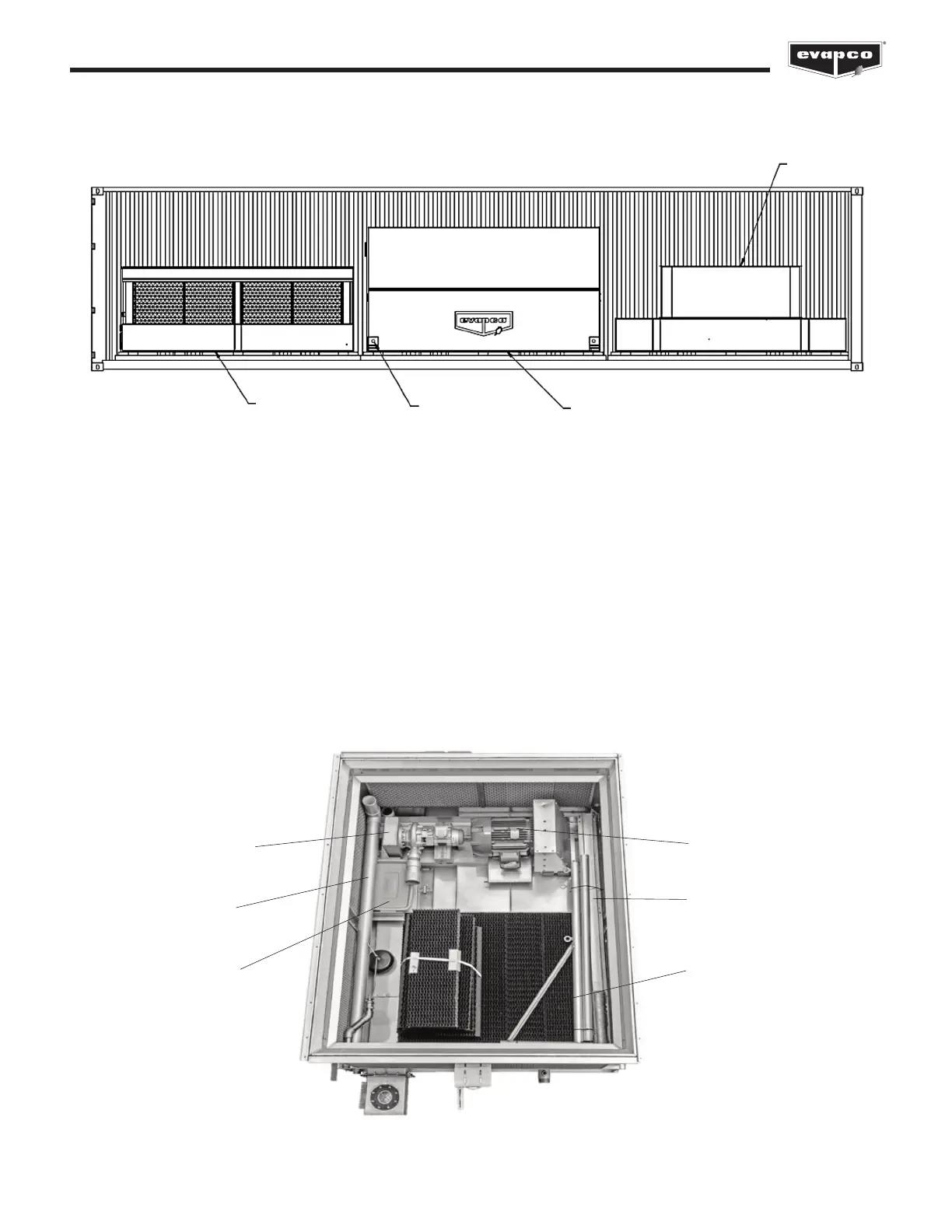

Figure 14 - 40’ Standard Height Container, Unit with Super Low Sound Fan
Figure 14 shows a 7’ x 12’ unit with super low sound fan shipping in a 40’ standard height shipping container. Any containerized
unit selected with Super Low Sound Fans will ship in 3 pieces as shown below.
While the image below is not representative of all possible accessory options, but it provides an example of how containerized
unit’s basins are set up for shipment. Platforms and ladders are strapped to the top of the casing
PUMP MOTOR*
FAN MOTOR
MOTOR DAVIT
WATER SILENCERS
* On Coolers & Condensers only. Not applicable to towers.
RISER PIPING*
RIGGING BOX
BASIN SECTION
L
IFTING EARS
C
ASING SECTION
F
AN SECTION
Once the sections have been unloaded from the shipping container, follow the below steps to complete assembly. Please check
table of contents for associated page numbers to get to the instructions referenced below.
1. Unbolt fan section from basin section.
2. Lift fan section and rig to casing section using instructions from "Assembly of the fan section to the coil section (Containerized)".
3. Rig basin section using instructions from “Rigging Basin Section”.
4. Lift upper section (fan + casing) and rig to basin using instructions from "Assembly of the Coil Section to the Basin
(Containerized)".
