11
ATC-E, ATC-ES, ATWB, eco-ATWB and eco-ATWB-E Evaporative Condensers and Closed Circuit Coolers
Containerized Unit Assembly
7' and 14' (2.2m and 4.4m) wide ATWB units are optimized to be transported in export containers for overseas shipment. When these
units are required to be shipped in containers, the fan section is loosely bolted to the basin section prior to placing in the container.
Depending on the size of the unit and accessory options, there a few different shipping configurations as outlined below.
Notes:
*HC indicates “High Cube.” High cube containers provide an additional foot of container height which allows for
standard fan cylinders to ship mounted to the fan sections (See Figure 11 for an example of a high cube container).

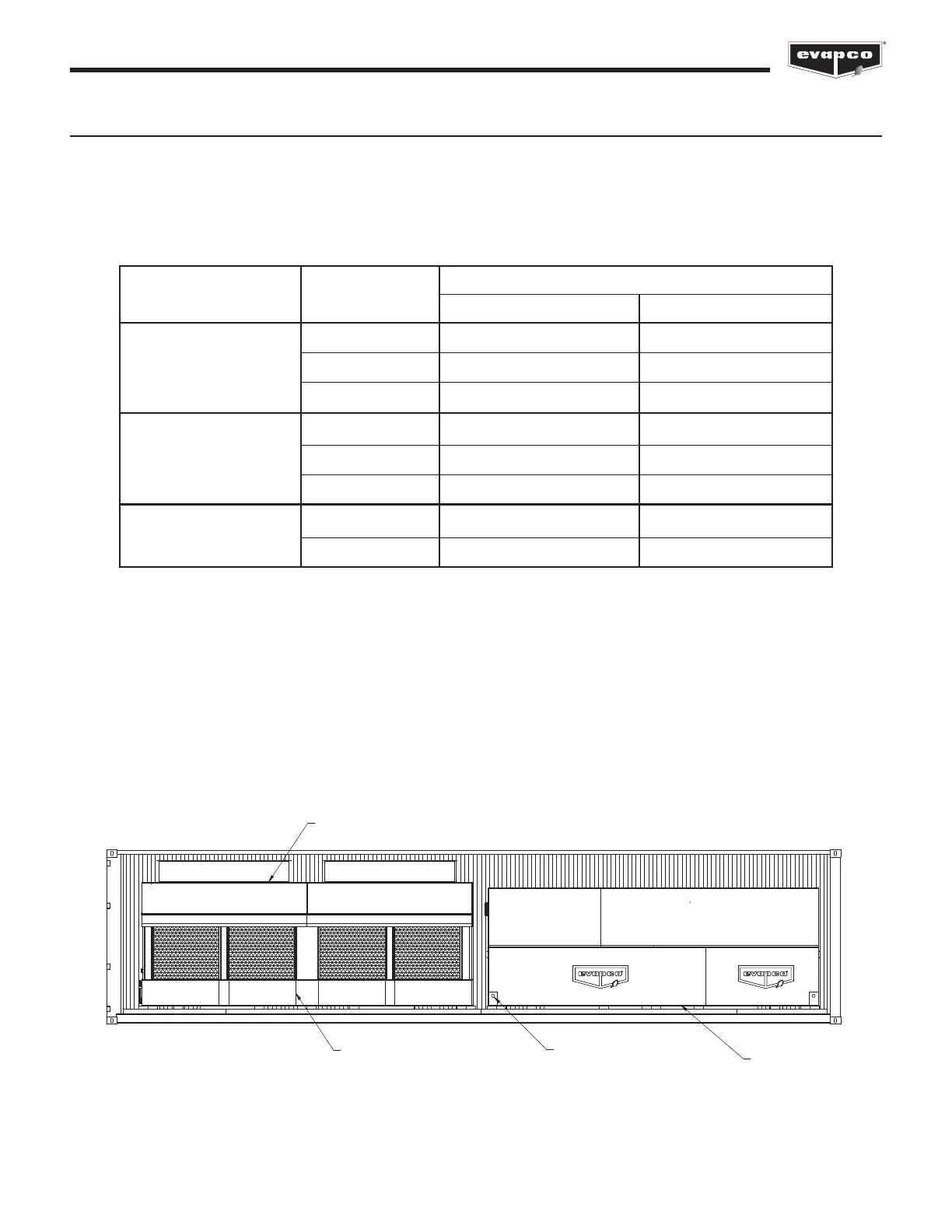

Figure 11 below shows an example of a 7’ x 18’ unit shipping in a 40’ high cube container. A high cube container is used
so that the fan cylinders can ship mounted to the fan section. In such a case, the fan section is loosely bolted to the basin
section.
Figure 11 - 40’ High Cube Container Shipment
LIFTING EARS
CASING SECTION
FAN SECTION
BASIN SECTION
# of Containers Required
Box Size Standard Fan SLSF
7 x 9 (1) 20' (1) 40'
7 x 12 (1) 40' HC* (1) 40'
7 x 18 (1) 40' HC* (1) 40' + (1) 20'
14 x 9 (1) 40' HC* (2) 40'
14 x 12 (1) 40' HC + (1) 20' (2) 40'
14 x 18 (2) 40' HC* (3) 40'
7 x 24 (1) 40' HC + (1) 20' (2) 40'
7 x 36 (2) 40' HC* (3) 40'
Single Cell
Unit Type
Multi-Cell
Multi-Cell
Table 4 - Number of Containers Required
