PMC-E FORCED DRAFT EVAPORATIVE CONDENSERS
Optional Straight-Sided Hood Section
Some units may be supplied with an optional discharge hood section. This section will ship from the
factory as a separate item or loosely mounted on top of either the basin and fan section or coil
section to reduce freight charges. Each hood section is equipped with U-bolts located at the four
corners for lifting and final positioning (Figure 14). Always use safety slings for extended lifts or
where any hazard exists.
NOTE: When combined with other sections, the hood must be removed prior to any lift. In all
cases the hood section must be rigged as a separate part.
Once the coil section has been secured to the basin and fan section, wipe the top flanges to remove
any dirt or moisture. Place sealer tape over the mounting hole centerline on the side flanges. Apply
two strips of sealer tape, one partially overlapping the other, on the end flanges as shown in Figures
5 and 6. Remove any shipping blocks or other obstructions. Lower the hood onto the top flange of
the coil section.
Install the retainer clips in all four corners as shown in Figure 14. For 5,4m-long hoods, two (2)
additional clips are provided and are to be fastened in the middle of each side.
NOTE: Always lift the hood separately and follow the rigging sequence shown.
ANGLE WITH
HORIZONTAL
MUST
EXCEED 60°
LIFTING
U-BOLTS
DETAIL A
011-00539P
10mmØ X 25.4mm LG BOLT DAC
011-00502P
10mmØ FLAT WASHER
011-00250P
10mmØ NUT LOCK

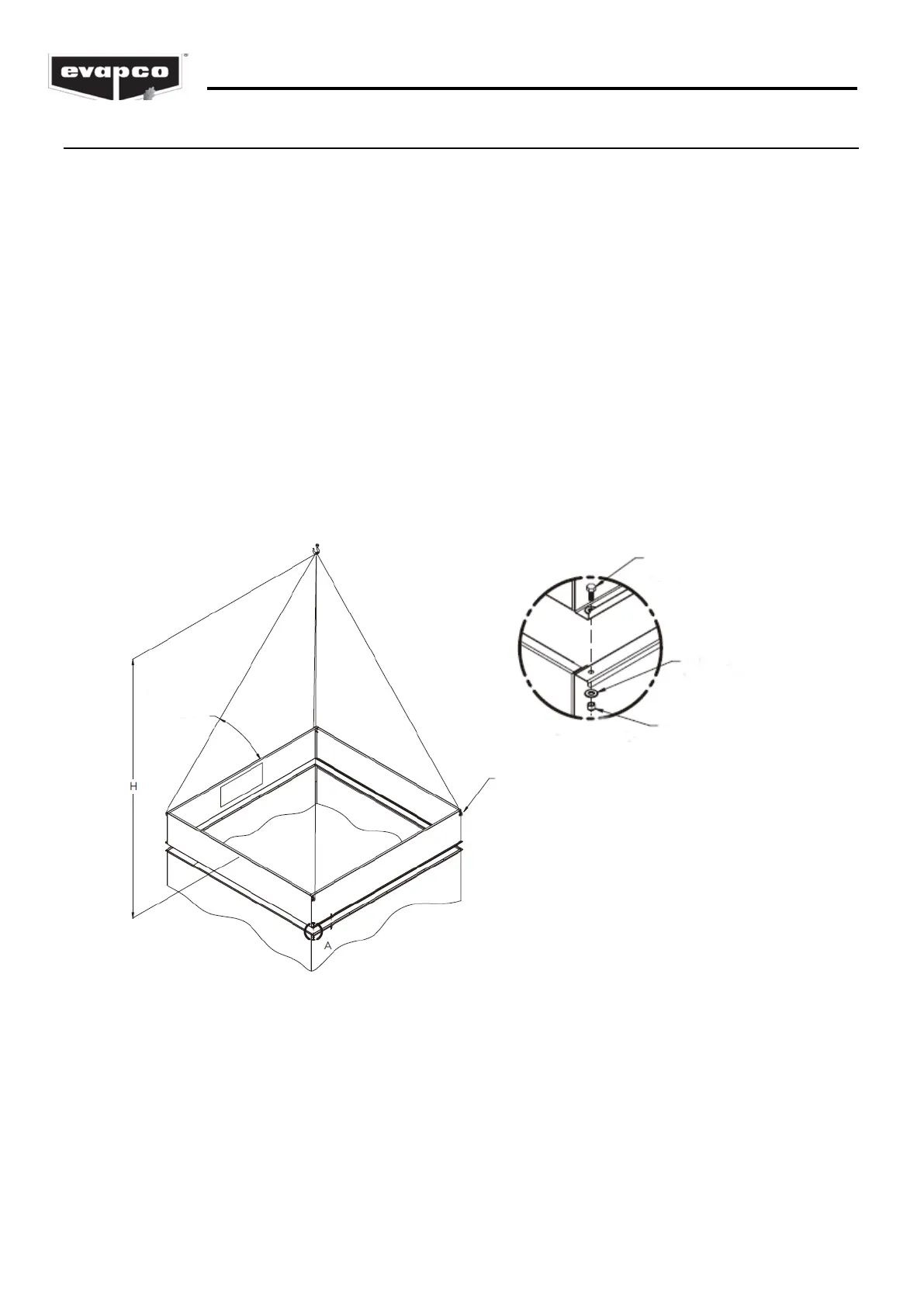

Figure 14 – Discharge Hood Rigging and Assembly (Shown without Dampers)
See Table 6 for the minimum “H” dimensions for rigging the discharge hood for both standard and
extended lifts.
