12
PMC-E FORCED DRAFT EVAPORATIVE CONDENSERS
Field Assembly of External Service Platform and Ladder
The external service platform and ladder assemblies are shipped separate from the unit. The platform
is partially assembled prior to shipment to minimize field assembly. The platform and ladder assem-
bly should be attached after the unit is fully rigged following the instructions below in Figure 15.
DETAIL A
SECURE DECK
SUPPORT TO
CONNECTION
PLATES WITH 15.9mm
GRADE 5 HARDWARE
SECURE DIAGONAL
SUPPORT TO DECK
SUPPORT USING
15.9mm GRADE 5
HARDWARE
CONNECTION
PLATE
DECK SUPPORT
DECK SUPPORT
DIAGONAL SUPPORT
DETAIL B
SECURE DIAGONAL
SUPPORT TO CONNECTION
PLATE WITH 15.9mm
GRADE 5 HARDWARE
DIAGONAL
SUPPORT
CONNECTION
PLATE
RAILING FITTING
SECURE RAILING
FITTING TO FRONT
TOEPLATE USING
15.9mm GRADE 5
HARDWARE
FRONT TOEPLATE
DETAIL C DETAIL D
NOTE: PLATFORM GRADING NOT SHOWN FOR CLARITY

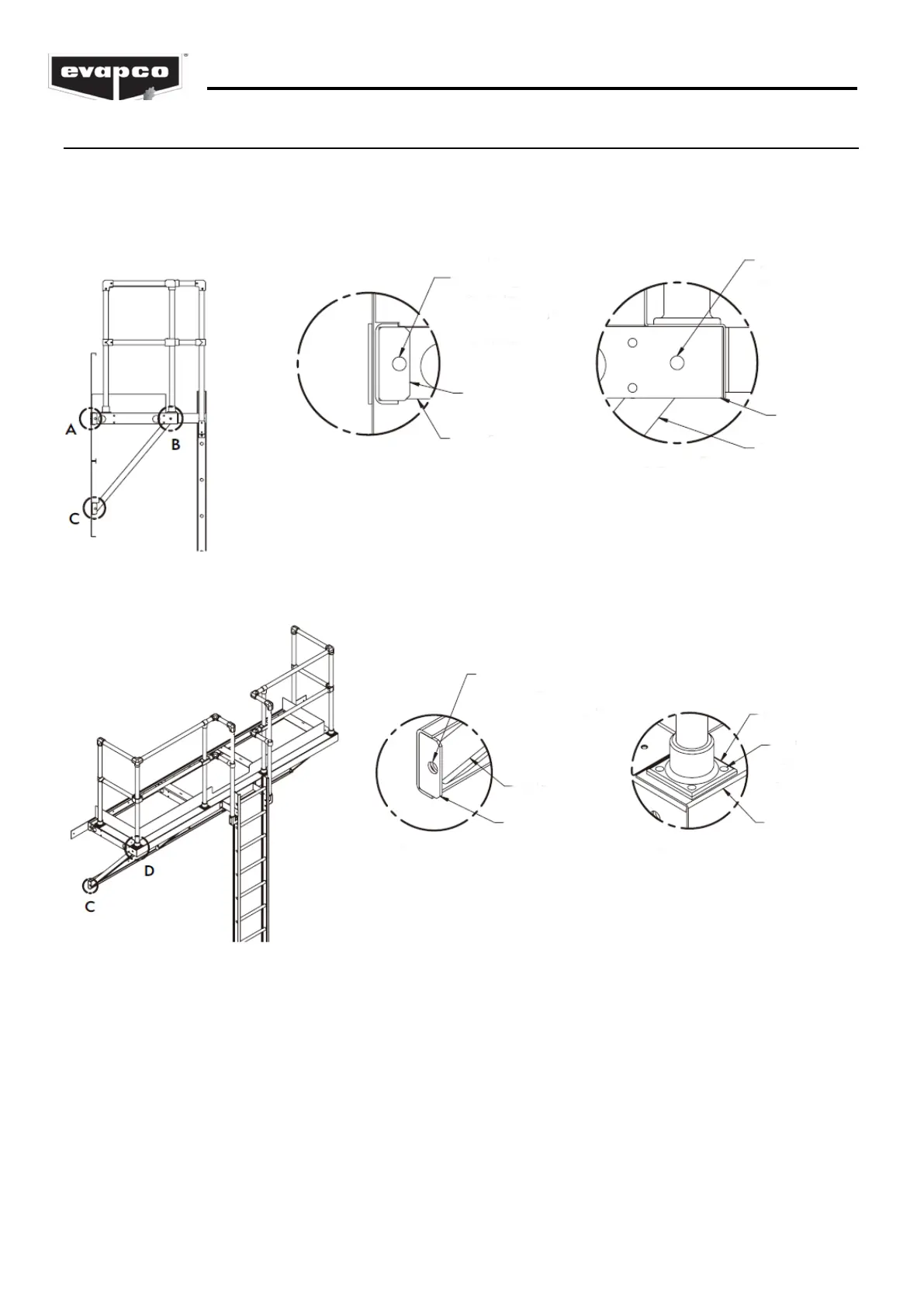

Figure 15 – Field Assembly of External Service Platform and Ladder
