8
PMC-E FORCED DRAFT EVAPORATIVE CONDENSERS
Box Size (m) “H” Dimensions (m)
1.5m Wide Models
1.5 x 3.6 3.6
1.5 x 5.4 5.2
3m Wide Models
3 x 3.6 4.3
3 x 5.4 2.7
3 x 7.2 7
3 x 11 5.2
3.6m Wide Models
3.6 x 3.6 4.6
3.6 x 5.4 2.7
3.6 x 6 3
3.6 x 7.2 7
3.6 x 11 5.2
3.6 x 12.2 5.8

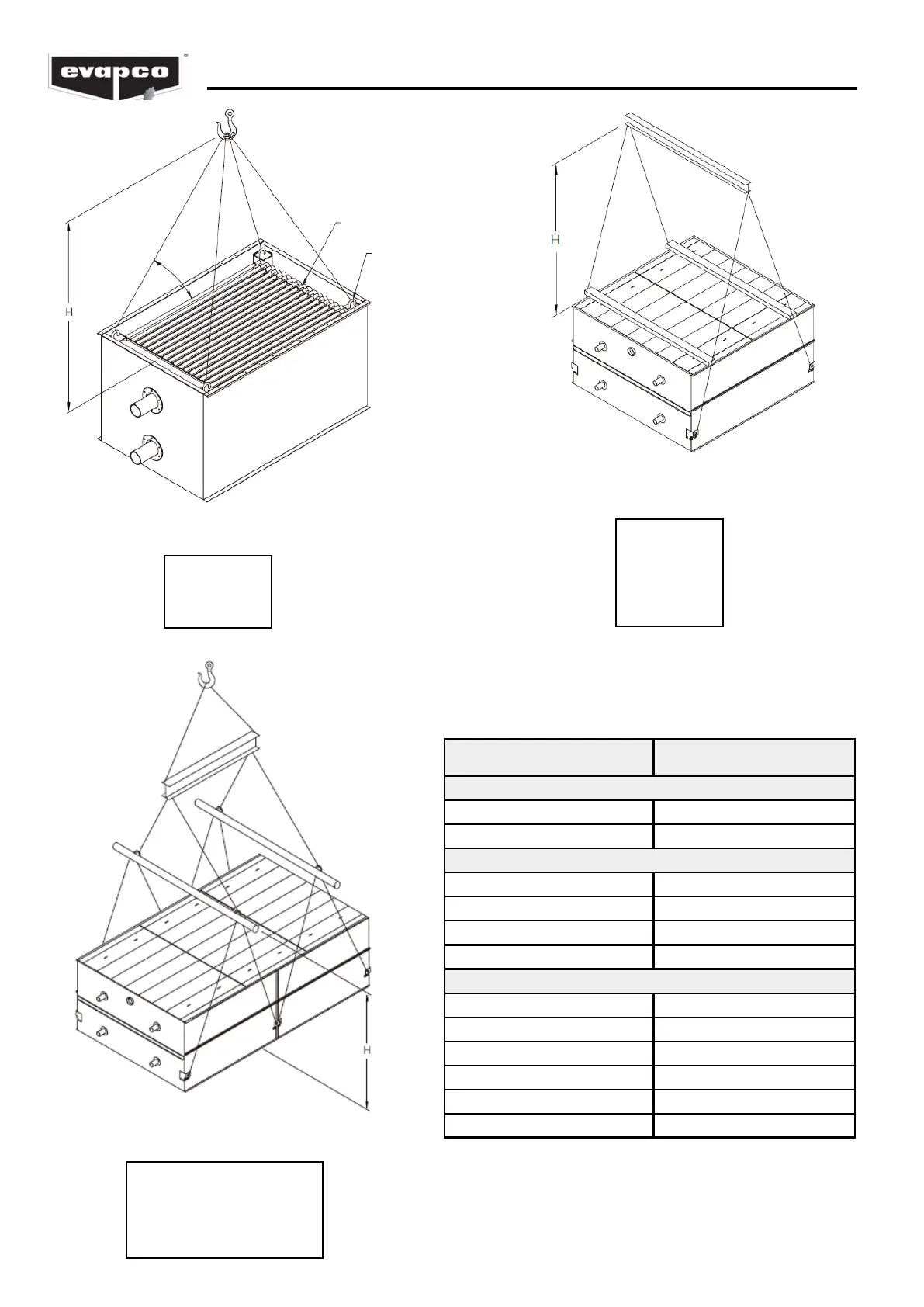

Table 4 – Minimum “H” Dimension for Coil Section
(See Table 2 for model numbers corresponding to box size)
ANGLE WITH
HORIZONTAL
MUST
EXCEED 60°
COIL
LIFTING
U-BOLTS
Figure 7 – Small, Single Coil Sections
BOX SIZES:
1.5m x 3.6m
1.5m x 5.4m
Figure 8 – Large Coil Section (3.6m Long Sections)
BOX SIZES:
3m x 3.6m
3m x 7.2m
3.6m x 3.6m
3.6m x 7.2m
Figure 9 – Large Coil Section (5.5m Long and Up)
BOX SIZES:
3m x 5.4m, 3m x 11m
3.6m x 5.4m, 3.6m x 6m
3.6m x 11m, 3.6m x 12.2m
