2.2 Description of EVD MVC

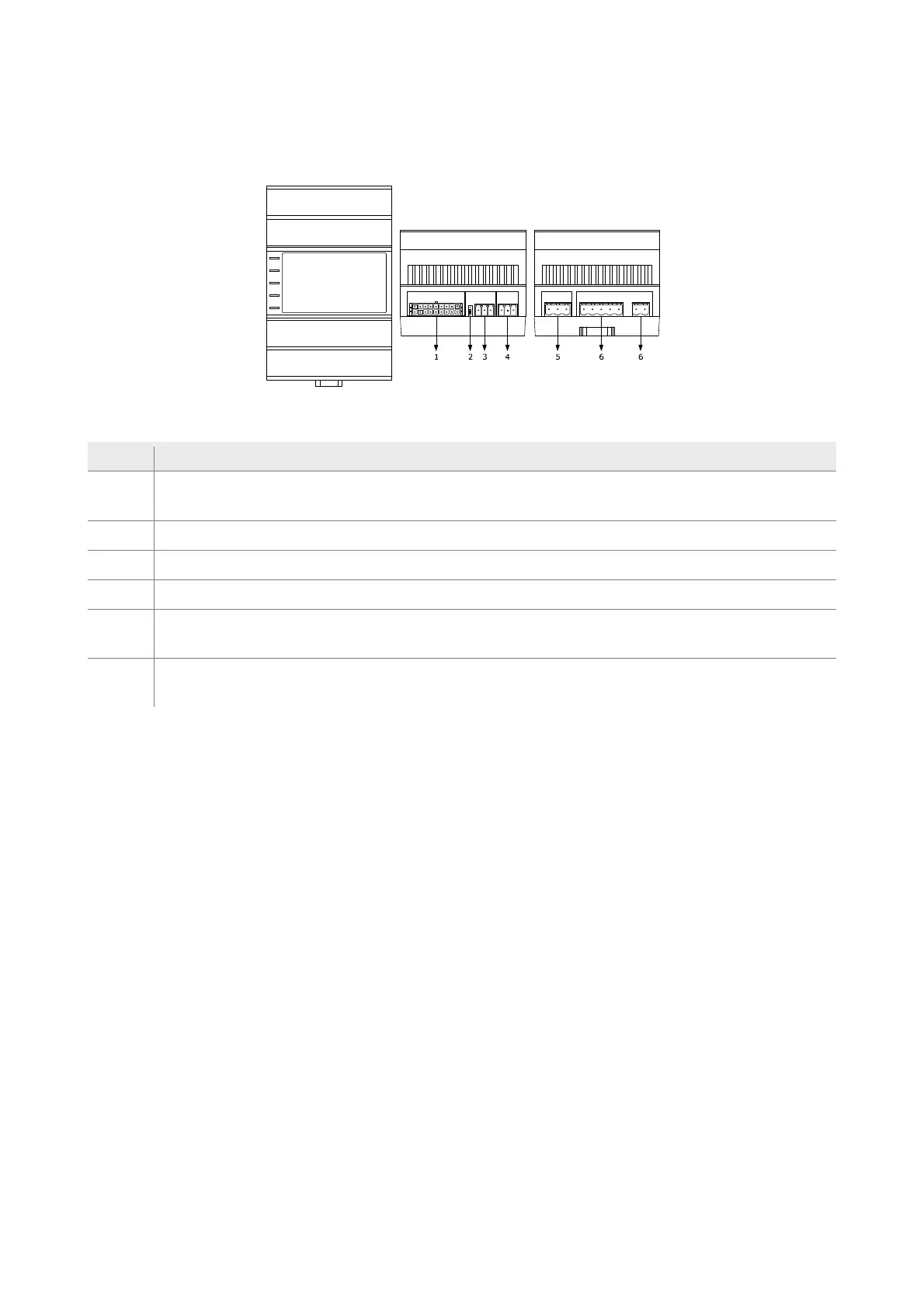

The diagram below shows the layout of the EVD MVC for installation in an electrical panel on a DIN rail in standard 4 DIN-module
format.
The table below describes each part of the EVD MVC.
Part Description
1
male Micro-Fit connector for cabling for analogue inputs, digital inputs, analogue outputs and the open collector digital
output (for future reference, the digital output OC1)
2 micro-switch for the termination resistor for the RS-485 MODBUS line
3 plug-in screw terminal block, male only, for cabling for the RS-485 MODBUS port
4 plug-in screw terminal block, male only, for cabling for the INTRABUS port
5
plug-in screw terminal block, male only, for cabling for the digital outputs with electro-mechanical relay (for future
reference, the digital outputs DO1 and DO2)
6
plug-in screw terminal block, male only, for cabling for the power supply, electrical-mechanical relay digital outputs (for
future reference, the digital outputs DO3 and DO4)
