THERMOSTAT WIRING FOR DLAS (HEAT ONLY) SERIES
Wall Thermostat
(Rear View)
F urnace Control Box

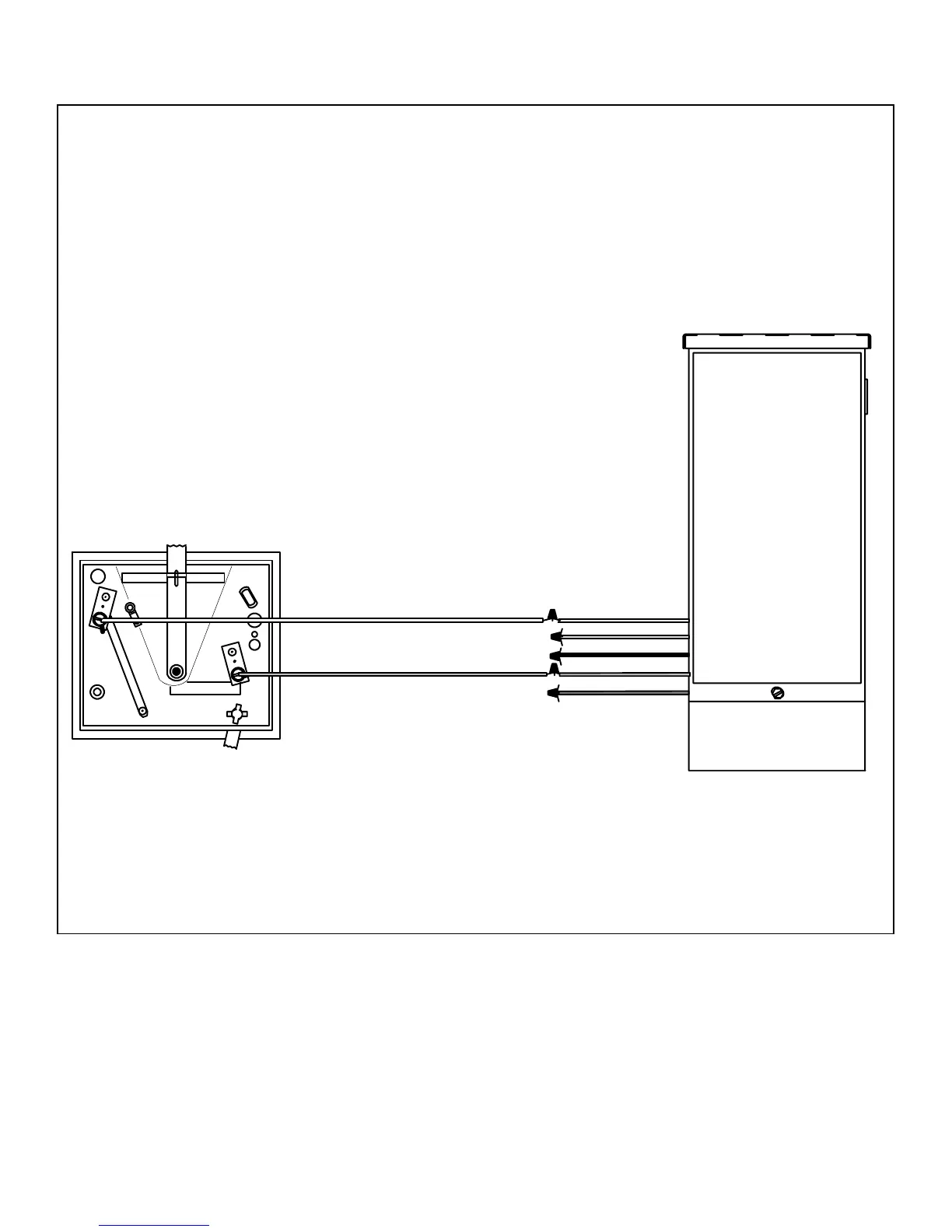

Figure17a --- Thermostat Wiring for DL
A
SSeries
R
W
White
Green
Black
Red
Yellow
White
Red
