5
GENERAL SPECIFICATIONS AND INSTRUCTIONS
DGAT & DGAM SeriesDLAS Series
60 1/2”
76”
19--- 1/2”
9--- 3/4”
23”
24”
10--- 5/8”
19--- 1/2”
9--- 3/4”
23”
24”
10--- 5/8”
15--- 7/8”
15--- 7/8”
2”
1--- 7/8”
( o n S u b --- B a s e )

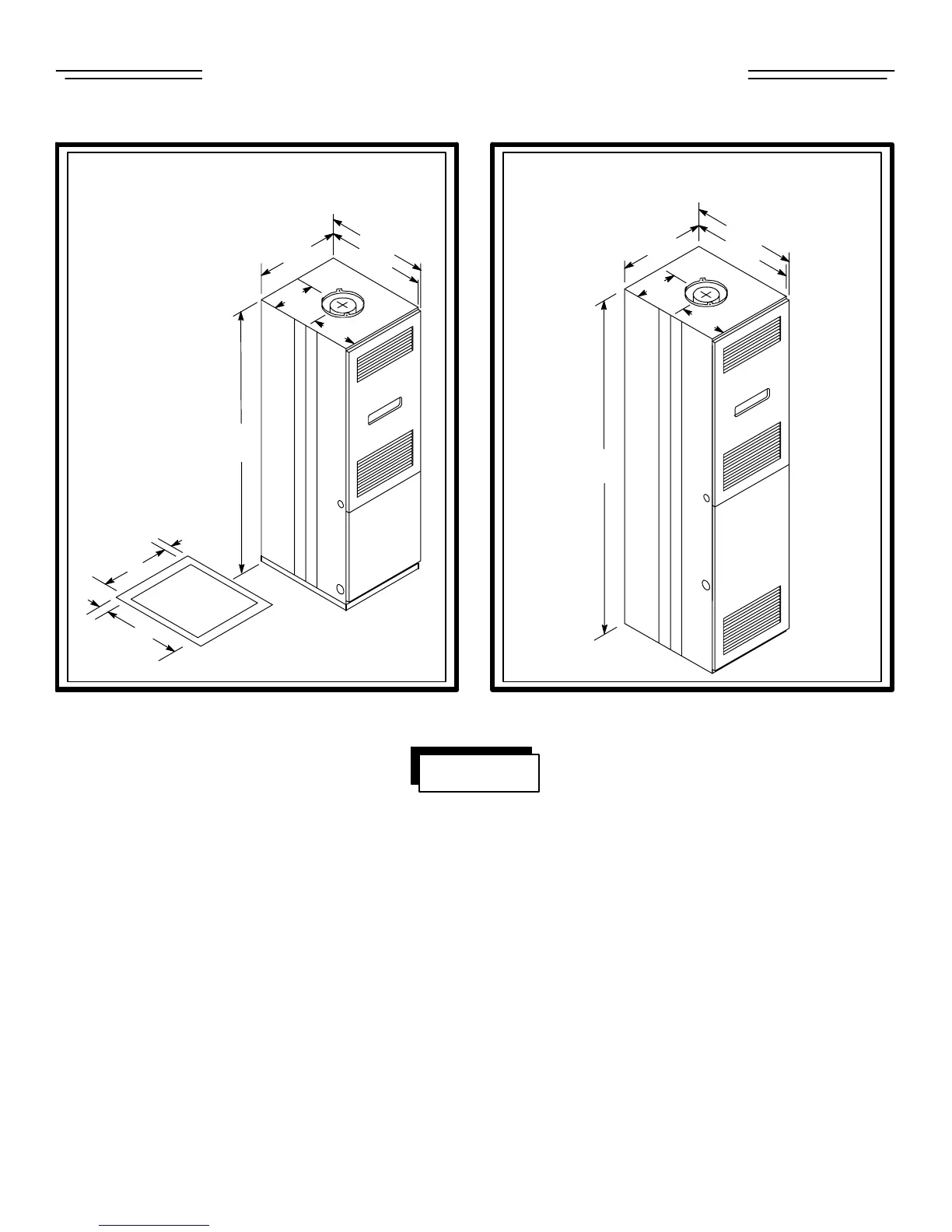

Figure 1 -- DLAS, DGAT, and DGAM Series Furnace Dimensions
WARNING
IMPROPER INSTALLATION, ADJUSTMENT, SERVICE
OR MAINTENANCE CAN CAUSE INJURY OR PROPE R-
TY DAMAGE.
PLEASE REFER TO ALL THE INSTRUCTIONS OF THIS
MANUALFORPROPERINSTALLATIONPROCE-
DURES. IMPROPER INSTALLATION WILL VOID THE
WARRANTY.
THEFURNACESHALLBEINSTALLEDSOTHEELEC-
TRICAL COMPONENTS ARE PROTECTED FROM
WATER.
DO NOT TEST THE FUEL SYSTEM AT MORE THAN 14
INCHES WATER COL UMN AFTER FURNACE HAS
BEEN CONNECTED TO THE FUEL LINE. SUCH TEST-
ING MAY VOID THE WARRANTY. ANY TEST RUN
ABOVE 14 INCHES WATER COLUMN MAY D AMAGE
THE FURNACE CONTROL VALVE WHICH COULD
CAUSE AN EXPLOSION, FIRE, OR ASPHYXIATION.
IMPORTANT NOTICE
These instructions are intended for the use of qualified indi-
viduals specially trained and experienced in installation of
this type of equipment a nd related system components.
Installa tion and service personnel are required by some
states to be licensed.
Persons not qualified shall not install this equipment or
interpret these instructions
.
NOTE
The words “Shall” or “Must” indicate a requirement w h ich is
essential to satisfactory and safe product performance.
The words “Should” or “May” indicate a recommendation
or advice which is not essential and not required but which
may be useful or helpful.
