Evcon DLAS Series User Manual

14

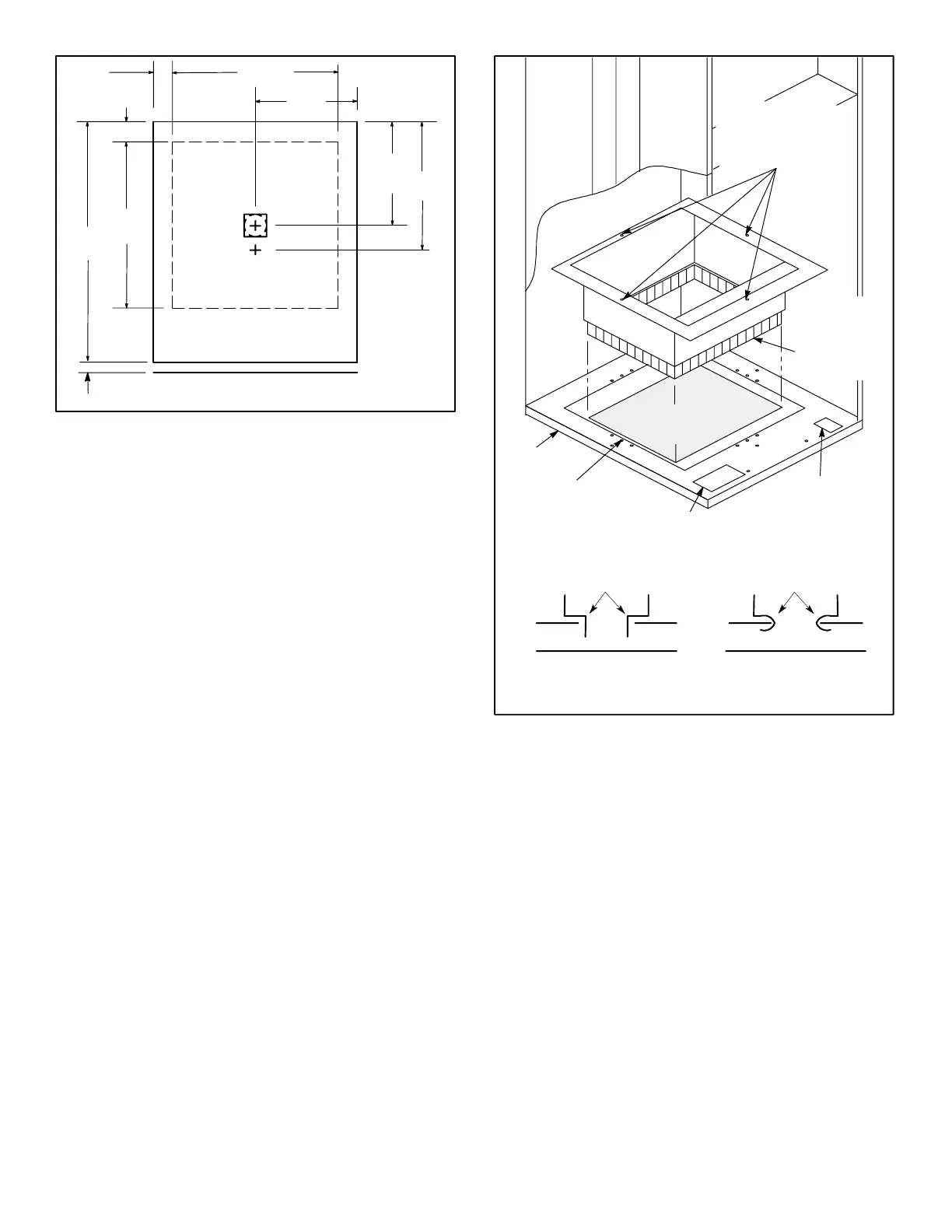

CASING FRONT
DOOR FRONT
15-7/8”
9-7/8”
12-1/4”
15-7/8”
1-13/16”
9-3/4”
23”
1”
FLOOR CUT-OUT LINE
FLUE CENTER
DUCT
LOCATING
HOLE
Figure 11
1-15/16”
SUPPLY DUCT
OPENING
FUEL LINE
OPENING
USE SCREW HOLES IN FURNACE
BASE APPLICABLE TO POSITION
OF DUCT CONNECTOR TO FAS-
TEN DUCT CONNECTOR.
Figure 12
SECURE DUCT CONNECTOR
TO FURNACE BASE WITH 4
SCREWS
REFRIGERANT
LINE OPENING
FURNACE
BASE
BEND TABS OF
DUCT CONNEC-
TOR UNDER
DUCT OPENING
TO SECURE TO
THE SUPPLY
DUCT.
TABS TABS
DUCT DUCT
1. INSERT DUCT PLENUM CON-
NECTOR INTO DUCT CUT-OUT.
2. BEND BOTTOM TABS OVER
AND ONTO THE UNDERNEATH
DUCT SERVICE.
