15
CONNECTING ROOF JACK TO FURNACE
IMPORTANT NOTICE
It is mandatory that the flue pipe and combustion air tube
be securely fastened to the furnace with sheet metal
screws.
NOTE
Only the combustion air tube needs to be fastened to fur-
nace when using a 4000 Series Roof Jack since combus-
tion air tube and flue pipe are part of the same assembly.
a. Checktobecertainthatthefluepipeandcombus-
tion air tube are present.
b. Pull the telescoping flue tube and combustion air
tube assembly down from the roof jack. Slide the flue
tube/combustion air tube assembly down firmly over
the furnace flue outlet and combustion air collar. In-
sure that the back, side and front of combustion air
tube collar is fully engaged. Fasten the combustion
air tube to the furnace combustion air collar using
two (2)
1
/
2
inch sheet metal screws. (Screw holes are
provided in combustion air tube and furnace com-
bustion air collar.
SeeFigure13.
c. Secure roof jack flashing to roof. See Figure 6 & 7.
CAUTION
IF EXCESSIVELY LONG SCREWS ARE USED TO SE-
CURE THE COMBUSTION AIR TUBE TO THE FURNACE
COMBUSTION AIR COLLAR, THEY MAY EXTEND
THROUGH THE COMBUSTION AIR TUBE AND DE-
FORM OR PUNCTURE THE FURNACE FLUE COLLAR.
IF SUBSTITUTE SCREWS ARE USED ON THE 7900 SE-
RIES ROOF JACK, THEY MUST NOT EXCEED 1-1/2” IN
LENGTH.

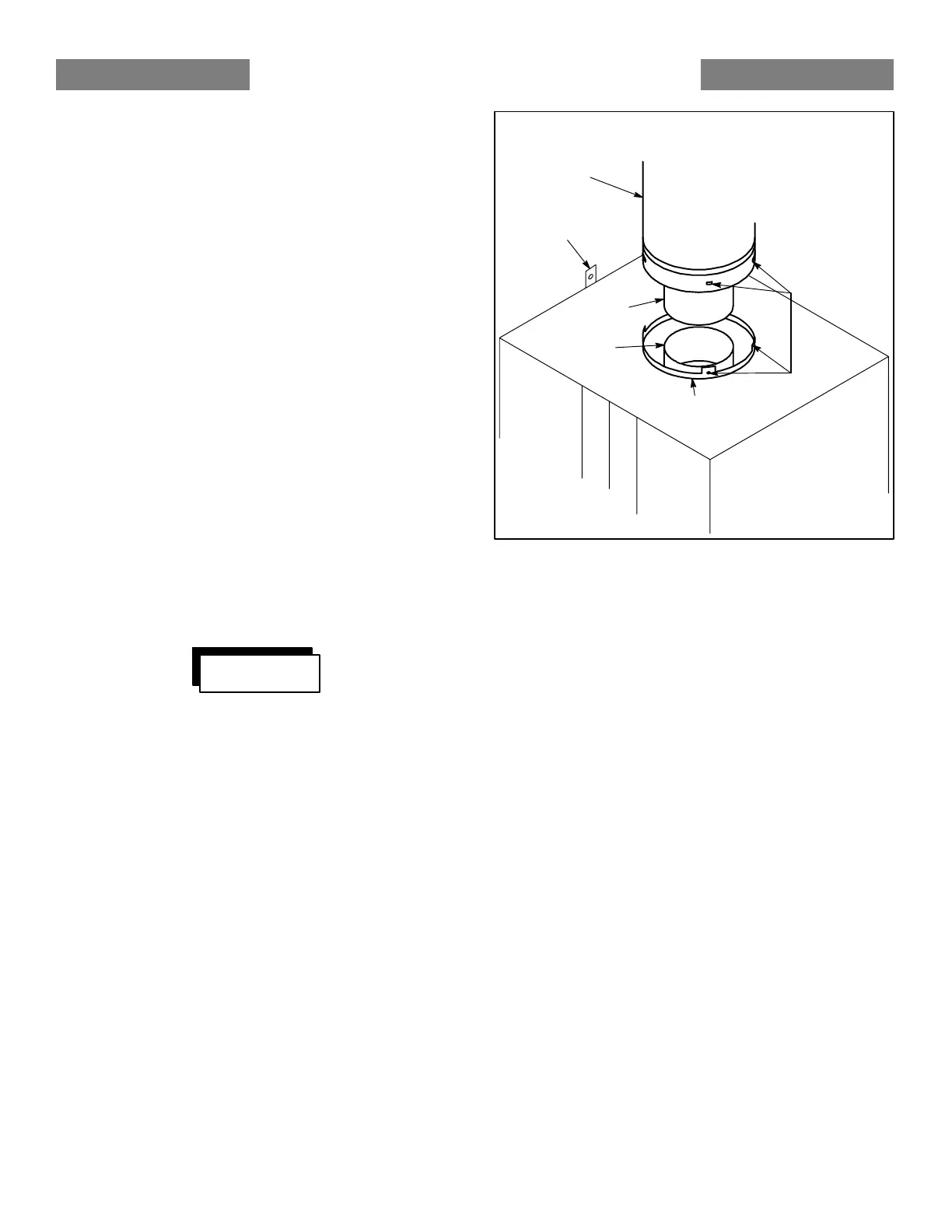

Figure 13
It is mandatory that the combustion
air and flue tube assembly be fully
engaged at back, side and front of
combustion air tube., and combus-
tion air tube securely fastened to the
furnace with sheet metal screws (2)
in the screw holes provided.
COMBUSTION
AIR TUBE
FLUE PIPE
KSCREW
HOLES (2)
COMBUSTION
AIR TUBE COLLAR
K#8OR#10
SCREWS RECOMMENDED
FURNACE
FLUE OUTLET
SECURE
STRAP
TO WALL
FRONT OF FURNACE
