Even-GLO™ Series GA301 Page 50 October-28-15
Wiring Diagrams

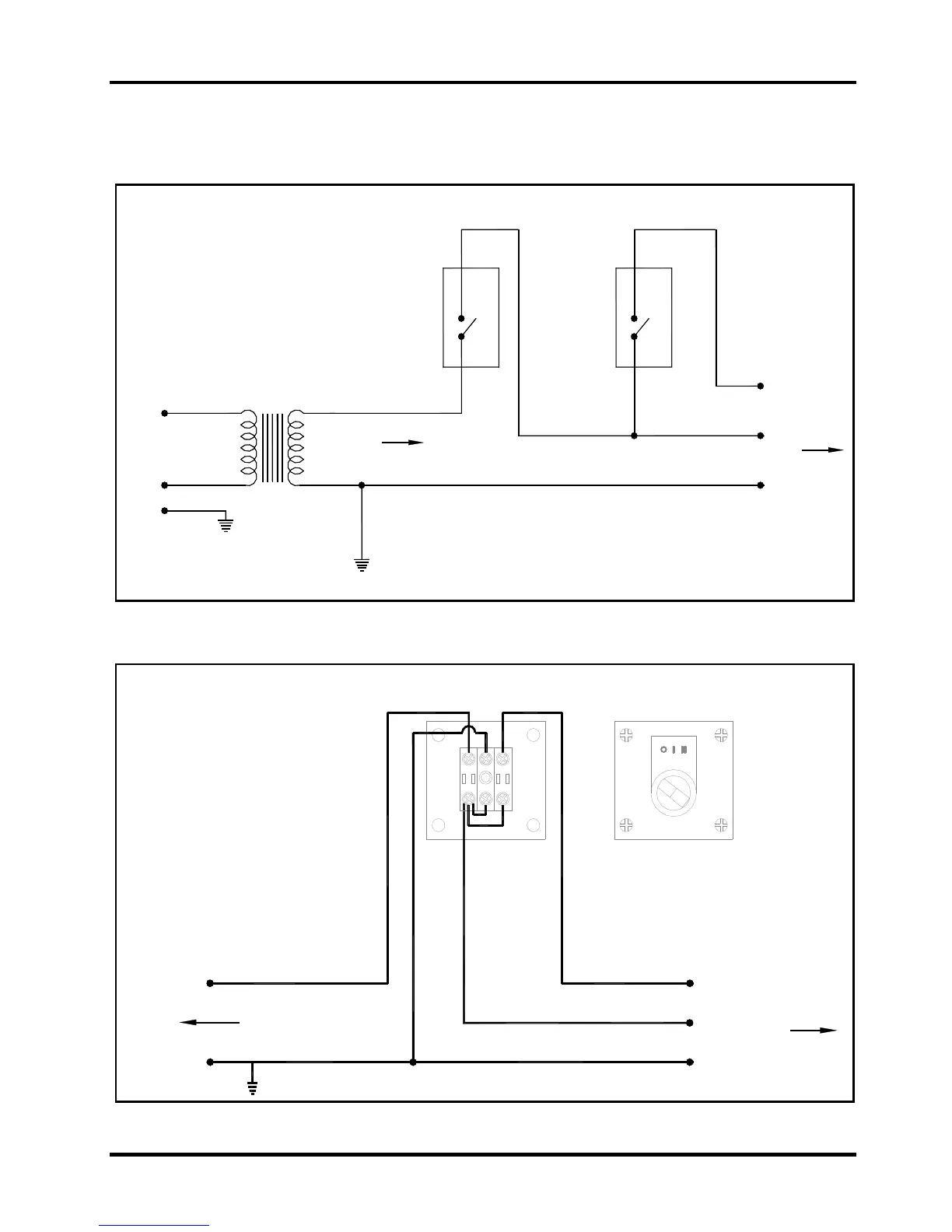

External Wiring Options
GA301, GA301-T, GA301-H
Patio
Heater
On
Off
24 Volt
AC
Supply
Hi (on)
Low (On)
To
Patio
Heater
Blue
Red
Green
**Ensure A Good
Ground Source
24 Volt
Transformer
115 VAC
Grounded
Supply
Option 1:
Using 2 Toggle Switches
Option 2:
Using 2-Stage Switch
(SRP P/N EE020)
24 Volt AC Supply
Grounded Neutral
N
24 VAC
Back Box
2
NC 1 NO 3
1X
X 2 4
Green
(Low)Red
To Patio
Heater
(Hi)
Blue
Front Cover
