Even-GLO™ Series GA301
Page 36
October-28-15

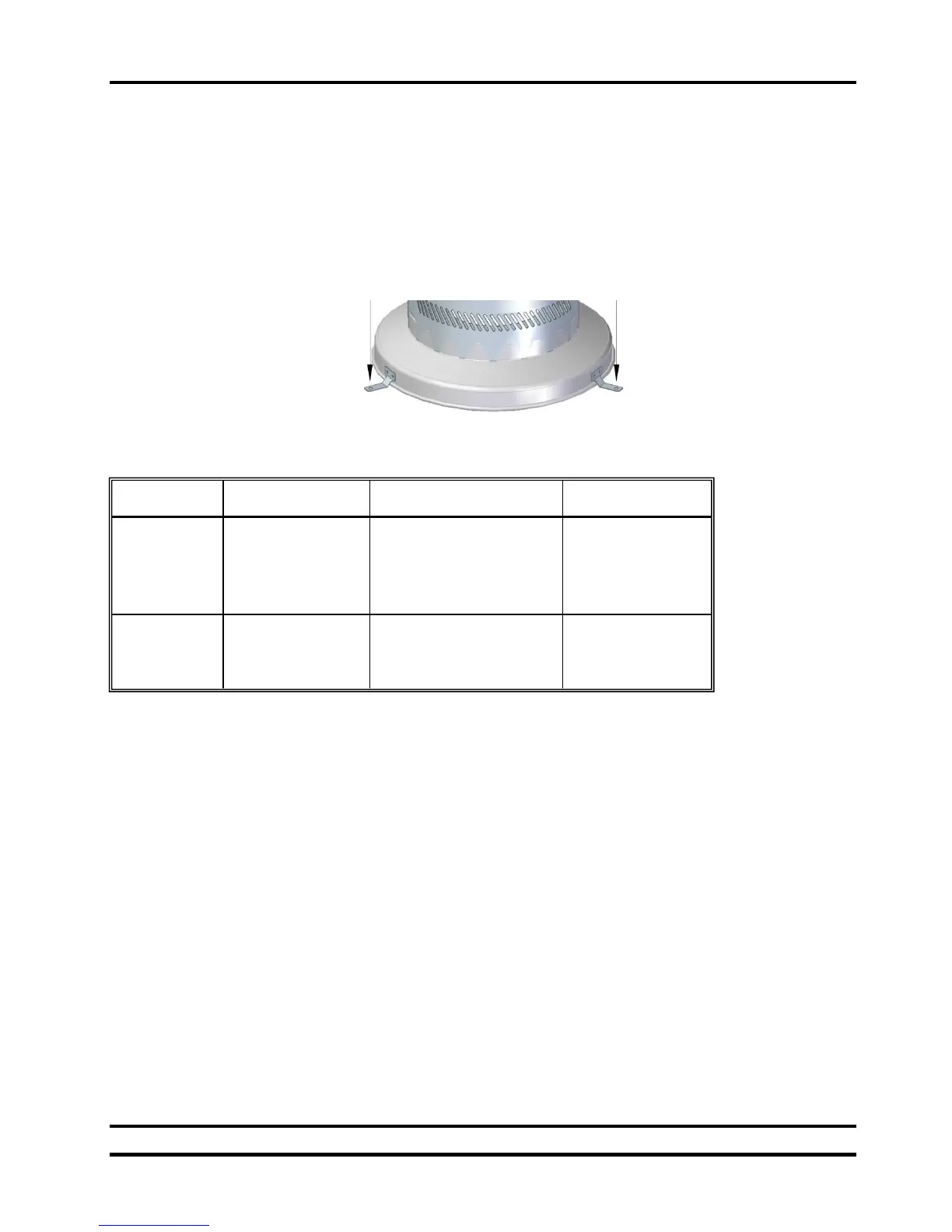

Installation Instructions(Models GA301-M, GA301-MP)
Secure the Heater
1. Ensure that the Hold-Down Brackets are properly installed.
2. The type of Foundation Fastener required depends on the type of Floor /
Ground that the Heater is located on. Prepare the Floor / Ground as detailed in
Table A at all three bracket locations. (Ensure that alignment with the
connecting hole(s) of the Base Bracket is maintained.)
Table A: Methods for Securing Heater to Floor / Ground
Floor / Ground
Type
Foundation Fastener
Type & Size
Mounting Method Summary
Floor / Ground
Preparation
Concrete
Concrete Anchor
Ø5/16"
x 2 1/2"
Place Anchors into pilot holes
aligned with Base Brackets -
tap / hammer lightly, screw
fastener into anchor
Drill 3 - Pilot Holes
Pilot hole drill size:
Concrete = 9/16"
Wood Deck
Wood Screw
#10 x 1 1/2"
Secure using Wood Screws in
pilot holes aligned with Base
Brackets
Drill 3 - Pilot Holes
Pilot hole drill size:
Hardwood = 7/64"
Softwood = 3/32"
To Next Page
