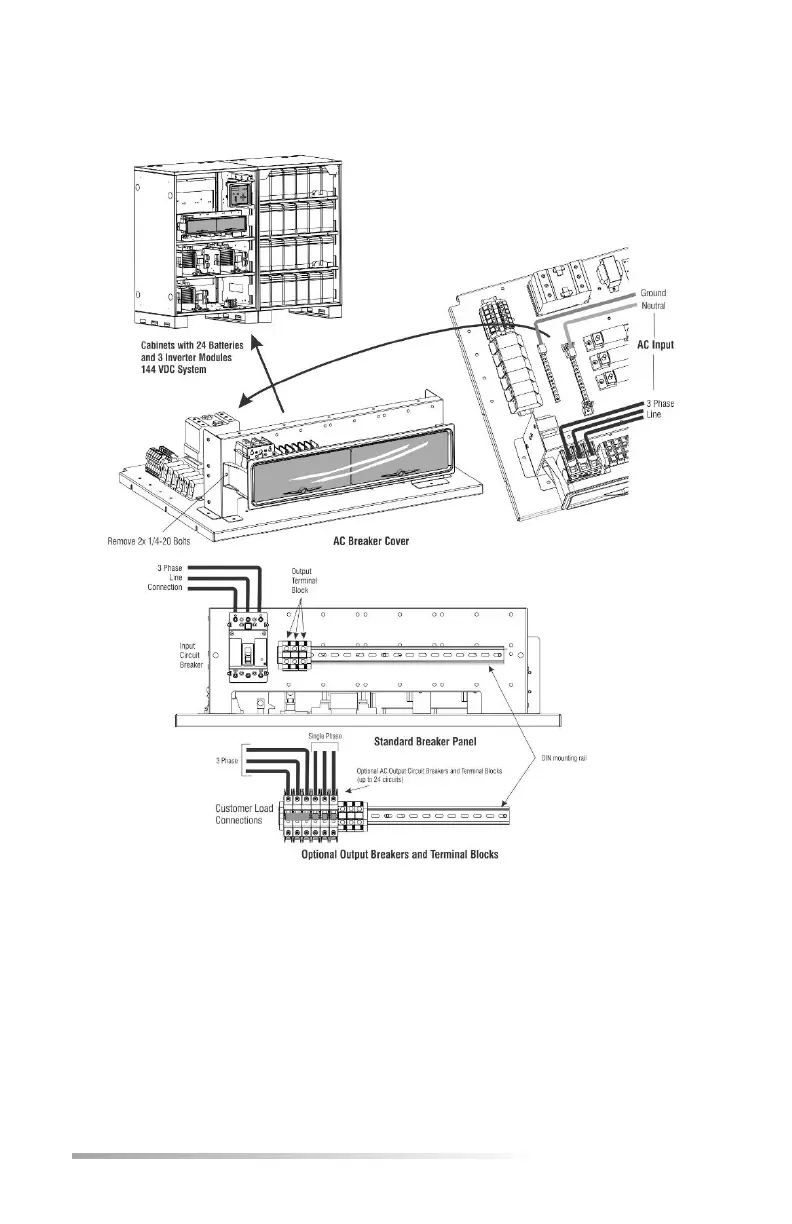

SIZE 2 and 3
4.0KW thru 18.0KW Models
SIZE 2/3 - Can accommodate up to 24 output breakers
without trip alarms – 18 output breakers with trip
alarms. Output circuit breakers can be configured as
Normally-On, Normally-Off and Switched-Output types.
See Ordering Guide in Section 8 for your specific
breaker configurations. Breaker type(s) quantity may
be limited due to other installed optional features.
16 | INSTALLATION / OPERATION MANUAL
