horizontal mounting
The EVENT Opal has been designed to overcome the performance issues exhibited in traditional monitoring
systems when mounting the speaker horizontally.
The key to this performance gain is the Opal’s rotatable high-frequency waveguide.
For more information on rotating the Opal waveguide please visit www.eventelectronics.com. Please note
that this operation should only be carried out by qualifi ed service personnel.

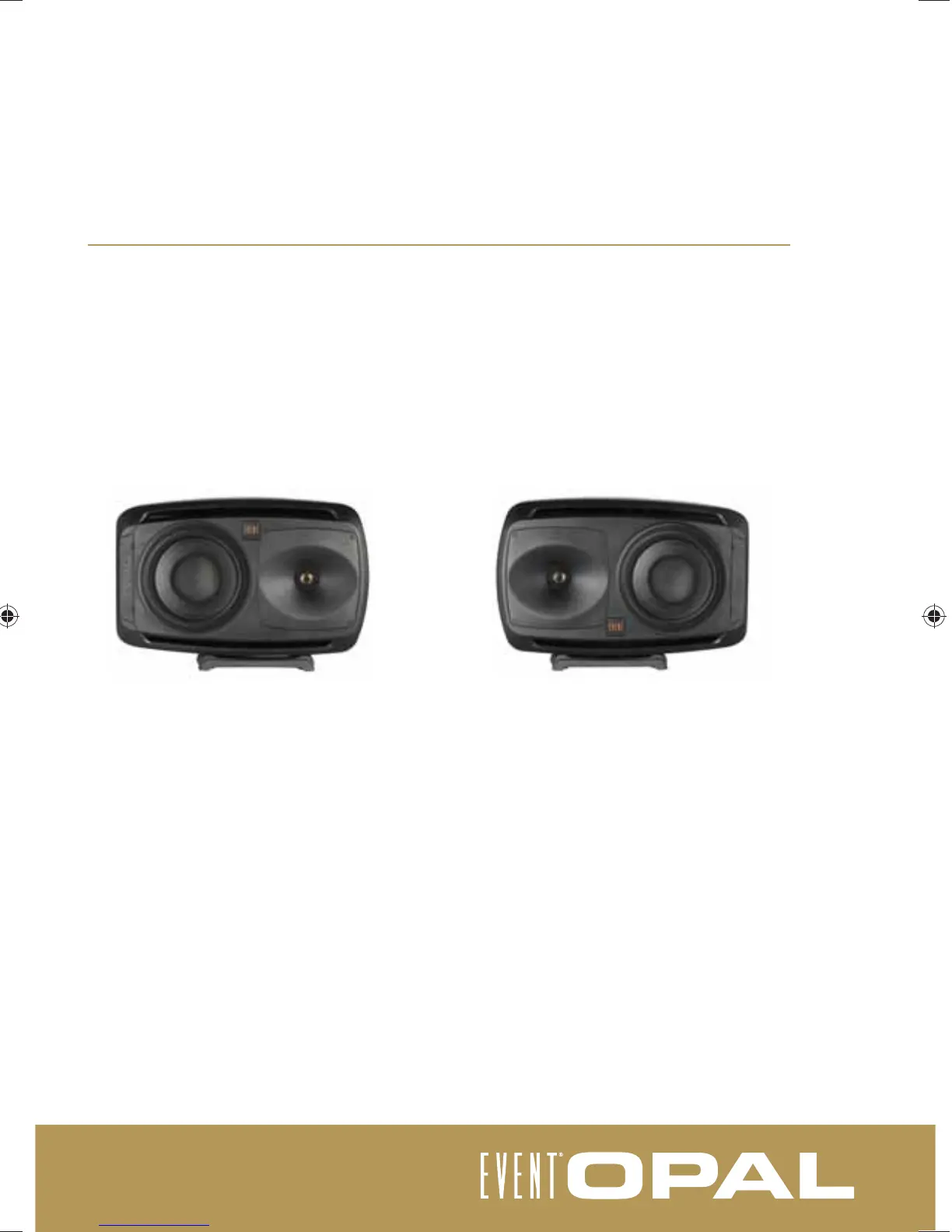

Note that when mounting the Opal horizontally, the tweeter should always be on the inside, as shown below.
The EVENT badge is also rotatable. To lift the badge from its magnetic mounting gently pry from the bottom
with a fl at screwdriver.
Please note that the supplied rubber plinth should always be used when mounting the speaker either
vertically or horizontally, to prevent any movement of the cabinet.
